Neue Firmware für das DSP-Radio

von Roger Leifert
Elektronik-Labor  Projekte  HF  DSP-Radio




Ich habe damals das Gerät sofort nachgebaut, weil ich von den Möglichkeiten dieses genialen ICs, der Wahl von BASCOM und eines ATMEGA für die Steuerung und Deinem Schaltungs- und Programm-Konzept begeistert war. Ich wollte dann selbst noch die Radiotext-Anzeige implementieren, bin damals an irgendeiner Stelle aber hängengeblieben und dann lag das Projekt erst mal 2 Jahre in der Ecke.

Ich habe jetzt die Zeit gefunden, das ganze noch einmal in Angriff zu nehmen und bin ziemlich weit gekommen.Ich mußte leider auf den nächst größeren ATMega (328P) ausweichen, da der Speicher dann doch recht schnell voll war.Der größere Flash, RAM und EPROM haben mich dann zum Einbau einer Vielzahl kleinerer und größerer Veränderungen/Erweiterungen animiert Jetzt ist der Flash schon wieder zu 95% voll und es fehlt mir nur noch die Dekodierung der EON-Daten aus den RDS-Daten...

Alles baut auf Deinem Original-BASCOM-Programm auf und ist von der Nutzung des LCD, der Tasten und der seriellen Schnittstelle fast 100% "abwärtskompatibel"

Download: ElektorDSP3.zip

Siehe auch:
http://www.elektor-labs.com/project/enhanced-software-for-elektor-dsp-radio-si4735.13905.html
http://www.mcselec.com/index2.php?option=com_forum&Itemid=59&page=viewtopic&p=63532







Kurze Videos:

Poweron%20and%20decoding.mp4
Radiotext.mp4


Bedienungsanleitung Elektor Si4735 DSP-Radio mit erweiterter Firmware auf ATMega 328P:



S2: (beim Einschalten) →  schalte PWM-Ausgabe in FM 1 Schritt weiter von „Stereo-Signal“ →  „Ratio-Mitte“ (FM-Frequenz-Offset) → Signalstärke (RSSI) → SNR



S2:  im Betrieb (→ Wechsel in FM, falls noch im AM-Modus)

·         kurz (<0,5s):    UKW-Suchlauf aufwärts

·         lang (0,5...2s):  UKW-Suchlauf abwärts

·         sehr lang(>2s): UKW-Band-Scan und abspeichern in M0...Mx (max. 50)
nach Scan-Ende wird M1 angezeigt; Gerät ist im Speicher-Scrollmodus (Encoder verändert Speicherstelle)



S3: (beim Einschalten) →  toggle manuellen Frequenzschritt für FM/LW/MW/KW zwischen „grob“ (50 kHz/9 kHz/9 kHz/5 kHz) und „fein“ (10 kHz/1 kHz/1 kHz/1 kHz)

S3:  im Betrieb (→ Wechsel in AM, falls noch im FM-Modus)

·         kurz →  Bandwechsel aufwärts; Klartext-Anzeige des Bandnamens und der Frequenzgrenzen

·         lang → Bandwechsel abwärts; Klartext-Anzeige des Bandnamens und der Frequenzgrenzen



S4:  im Betrieb (→ Wechsel in AM, falls noch im FM-Modus)

·         kurz (<0,5s):    AM-Suchlauf aufwärts

·         lang (0,5...2s):  AM-Suchlauf abwärts

·         sehr lang(>2s): AM-Band-Scan und abspeichern in M0...Mx
(max. 10x LW, 1x0 MW, 3x10 KW für zusammengefasste Bänder)

·        LW: Speicher 1...10

·        MW: Speicher 11...20

·        KW: Tropenbänder 3-6 = 120-60m  Speicher 21...30

·        KW:           Bänder 7-10 =  49-25m  Speicher 31...40

·        KW:           Bänder 11-16 = 22-11m  Speicher 41...50





S5: (beim Einschalten) →  lösche EEPROM-Stationen und setze Default-Properties



S5: (im Betrieb)

·         kurz (<0,5s): „STORE“ (=vorerst nur im RAM)
im AM-Modus → Eingabe des Sendernamens (10 Zeichen) mit Drehencoder
kurzer Tastendruck → nächstes Zeichen anwählen

·         lang (0,5...2s): „RECALL-Modus“ (Speicher-Nummer mit Drehimpulsgeber verändern)

·         falls Recall-Modus aktiv und dann kurzer Tastendruck für "Store" --> Recall-Modus wird ausgeschaltet und Frequenz nicht (!) gespeichert

·         2s drücken → Property-Einstell-Modus starten (Scroll mit Encoder)

·                →  kurz drücken →  gewählte Property mit Encoder verändern

·                →  nochmal kurz drücken → Property-Einstell-Modus beenden

·         5s drücken →  alle Daten ins EEPROM speichern





RS232-Steuerung:



    "f" = Frequenzeingabe → gibt „Tune“ zurück → f in kHz eingeben

    "m“ = Memory AM → gibt „Memory AM“ zurück → N eingeben (Speicherplatz) →  f in kHz eingeben → Sendername eingeben

    "n" = Memory FM → gibt „Memory FM“ zurück → N eingeben (Speicherplatz) →  f in kHz eingeben

    "p" =  Property → gibt „Property“ zurück → N eingeben (1...16) → Property-Wert eingeben

    "i" → I2C command

    "j" → einmalige RDS-Datenausgabe über RS-232
              Auswahl RDS-Infobereiche über Bit 0...6 des einzugebenden Steuerbytes:

            (Bits beliebig kombinierbar)

·        Bit 0 : 1 Satz gespeicherte Gruppen im FIFO-Speicher auslesen: aktuelle Gruppennummer+Typ (A/B); Block A-D; Blockerror-Byte

·        Bit 1 : PI-Code (hex. und binär); TP/TA; Music/Speech; PTY (Nummer; 16-Zeichen-Klartext; PTY-Name-Ergänzung); Decoder-Information

·        Bit 2 : PS=Sendername; Alternativ-Frequenzen (ggf. mit Regionalisierung); (Country-Code; Area-Coverage; Program Reference Nummer; Language (Klartext) z.Zt. wg. Platzmangel nicht aktiv)

·        Bit 3: lokale Uhrzeit „hhH mmM“; Modified Julian Date; Wochentag; Datum „TT.MM.JJJJ“ (sofern vorhanden)

·        Bit 4 : Radiotext-Länge; „Radiotext“  (sofern vorhanden)

·        Bit 5 : Emergency Warning System (sofern vorhanden): EWS, EWS0...EWS4 ($)
(z.Zt. aus Platzmangel nicht aktiv)

·        Bit 6: EON-Daten (sofern vorhanden):

·        EON-PS (Programmname)

·        EON-PI (hex. und binär)

·        EON-PTY (Program-Type)

·        EON-TP/TA (Travel-Program/Travel-Announcement)

·        EON-Frequenzpaare (Tuned/Mapped Frequency)

·        EON-PIN

·        Bit 7:

·        Pin_code PIN

·        Linkage actuator LA

·        Language Code LC

·        Ext. Country Code ECC

·         TMC-Ident

·         EWS-Channel





    "r" → RSSI zurückgeben

    "s" →  SNR zurückgeben







Display bei FM mit RDS, ohne Radiotext

Display bei FM ohne Radiotext





































Zeile1

Frequenz

RSSI

SNR



M

Speicher-nummer

Zeile 2

RDS-Sendername



HH

:

MM

ST
(=Stereo)

R
(=RDS-Data)

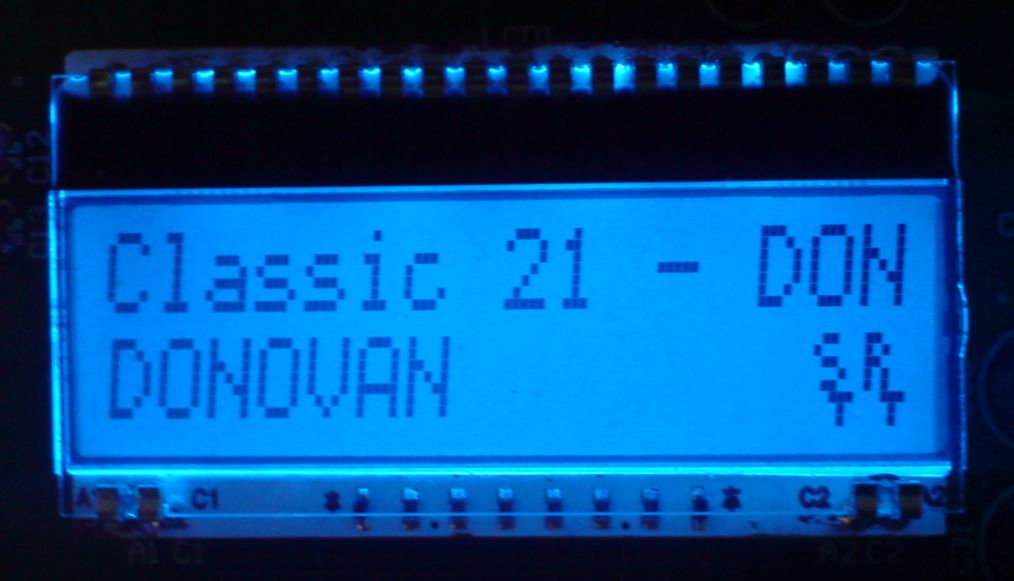

Display bei FM mit Radiotext

Display bei FM mit RDS, mit Radiotext



































Zeile1

komplette Zeile mit Radiotext gefüllt

Ping-Pong-Scrolling bei Textlänge 17...24 Zeichen, sonst normales Scrolling

Zeile 2

RDS-Sendername



HH

:

MM

ST
(=Stereo)

RT
(=Radiotext)





Display bei AM





































Zeile
1

Frequenz





RSSI

SNR

Tuning-Kapazität



Zeile
2

„M“

Speicher-nummer







AM-Sendername







Allgemeines:

·         Auto-Speicherung der aktuell eingestellten Frequenz FM und AM getrennt, Modus und Band im EEPROM sobald Frequenz als gültig von Si4735 quittiert wird

·         Quittierung der meisten Funktionen mit Klartext-Meldung auf LCD

·         Nach Einschalten laden der zuletzt eingestellten Werte für FM und AM (letzte gültige Frequenz, Band, Modus)

·         FM:  alternative Ausgabe der Stereo-Kanaltrennung (0%...100%; "Stereo-Signal"),  der Frequenz-Abweichung (+/-127 kHz; "Tuning"/"Ratio-Mitte")  oder des SNR über PWM (anstelle der Feldstärke)

·         Anzeige, Bedienung und RS-232-Steuerung weitgehend abwärts-kompatibel zu Original-Firmware

·         manueller Frequenzschritt: 50 kHz (FM), 9 kHz (LW/MW), 5 kHz (KW)

·         alternativ: 10 kHz (FM), 1 kHz (LW/MW/KW), wenn beim Einschalten S3 gedrückt wird

·         Einstellung der Property-Werte 1-8 (FM) bzw. 9-16 (AM) je nach aktuellem Modus mittels Dreh-Encoder:

·         Property-Einstell-Modus durch Druck auf S5 > 2s

·         Bestätigen mit kurzem Tastendruck von S5 (Memory)

·         Variation der Property mit Drehencoder nur innerhalb der erlaubten Grenzen lt. Datenblatt Si4735

·         Bestätigen und Abspeichern der Property mit kurzem Tastendruck von S5 (Memory)

·         Abspeicherung veränderter Property-Werte bei Druck auf S5  > 5s zusammen mit allen anderen Werten im EEPROM

·         Falls Property-EEPROM-Speicher=$FF (unbeschrieben) --> lese alle Default-Wert aus Si4735 aus und speichere in Property(n)



FM:

·         Si4735 Default-Werte:

·         Einstellung der manuellen Schrittweite auf 50 kHz (z.B für Kabelempfang)

·         "max. Tune-Errors" auf 20 kHz (statt 30 kHz; Empfehlung lt. Datenblatt)

·         Deemphasis auf 50µs (=Europa) anstelle 75µs (=USA) als Default-Wert

·         50 Senderspeicher

·         AUTOSCAN bei Druck auf S2 für > 5

·         Auto-Scan des gesamten UKW-Bandes und Speicherung der gefundenen Sender in M1....Mn (n max. 50)

·         Nach Abschluss des Scans: Speicherplatz M1 angewählt

·         Gerät dann im Speicher-Scrollmodus bzgl. Drehencoder-Funktion

·         Formatierung von FM-Frequenzen auf LCD und RS-232-Ausgabe als "XXX.YY [Mhz]"

·         Anzeige von Sonderzeichen "ST" (="S" über "T") für Stereo-Empfang in LCD-Zeile 2, Spalte 15

·         Anzeige von RDS-Empfang durch "R" in LCD-Zeile 2, Spalte 16

·         Anzeige von Radiotext-Empfang durch Sonderzeichen "RT" ("R" über "T") in LCD-Zeile 2, Spalte 16

·         Automatische Anzeige von Radiotext in 1. LCD-Zeile:

·         statisch bei Radiotext-Länge < 17 Zeichen

·         "Ping-Pong" Scrolling (Links<->Rechts) bei Länge 17...24 Zeichen

·         wiederholtes Scrollen von links nach rechts bei Länge > 24 Zeichen

·         nach jeder Radiotext-Nachricht kurze Einblendung der FM-Frequenz

·         weitestgehende Implementierung des RDS-Zeichensatzes Europa durch ASCII-Ersatz-Tabelle für EADOGM-Zeichensatz

·         PWM-Ausgang für analoges Zeigerinstrument bei FM anstelle Feldstärke ("RSSI") verändert auf...

·         Stereo-Signalstärke (Si4735 Eigenschaft "Stereo-Signal" = Response-Byte R3 Bit 0..6[%] in RSQ) :

·         0% (=Mono)...100% (=Stereo) --> 0...3,3V PWM-Ausgabe

·         oder Frequenz-Offset ("Ratio-Mitte") (Si4735 Eigenschaft "Frequency-Offset" = Response-Byte R7 Bit 0..7 [kHz] in RSQ)

·         -128 kHz (0V PWM)..... +/-0 kHz (1,65V PWM)....+128 kHz (3,3V)

·         oder SNR (0...85 dB)

·         oder Feldstärke (0...85 dBµV)

·         Defaultwert: Stereo-Signalstärke

·         in Schritten durchschaltbar durch Druck auf S2 beim Einschalten



AM:

·         50 Sender-Speicher: 10 für LW, 10 für MW, 3x10 für Kurzwelle (3 Bandbereiche)

·         Anzahl KW-Bänder auf 14 Rundfunk-KW-Bänder erweitert; entsprechend Wikipedia-Eintrag:
http://de.wikipedia.org/wiki/Kurzwellenrundfunk#Rundfunkb.C3.A4nder_im_Kurzwellenbereich



·         KW-Band wird bei Umschaltung im Klartext mit Frequenzgrenzen angegeben

·         AUTOSCAN bei Druck auf S4 für > 5s:

·         Auto-Scan des eingestellten AM-Bandes und Speicherung der gefundenen Sender in Mn....Mm (1...10=LW; 11...20=MW; 21...30 oder 31...40 oder 41...50 KW je nach gewählten Bandbereich)

·         Nach Abschluss des Scans Speicherplatz M1 (LW), M11 (MW) oder M21/M32/M41 (je nach  angewähltem KW-Bereich) angewählt

·         Gerät dann im Speicher-Scrollmodus bzgl. Drehencoder-Funktion

·         Sendernameneingabe: Beim separaten Speichern eines AM-Senders wird der Sendername (max. 10 Zeichen) mit Drehencoder+Memory-Taste S5 eingegeben und nach Eingabe von 10 Zeichen automatisch mitgespeichert! (noch nicht geprüft)

·         Schrittweite/Frequenzraster auf 9 kHz für LW/MW verändert

·         10 gültige LW und MW-Senderfrequenzen incl. Namen als Default-Werte im EEPROM für Speicherplatz 1...10 und 11...20



RS-232:

·         neuer Befehl    "j" + Steuerbyte + ENTER → einmalige RDS-Datenausgabe im Klartext über RS-232

·          Auswahl des RDS-Infosegmentes über Bit 0...7 des eingegebenen Steuerwertes

·         Bit 0...7 - Segmente beliebig kombinierbar

·

·        Bit 0 :

·         1 Satz Gruppen im FIFO-Speicher

·         aktuelle Gruppennummer+Typ (A/B)

·         Block A, B, C, D-Bytes

·         Blockerror-Byte (Si4735)

·        Bit 1 :

·         PI-Code (Hex und Binär)

·         TP/TA (Travel-Program; Travel-Announcement)

·         Music/Speech-Flag im Klartext

·         Programmtyp PTY (Nummer; 16-Zeichen-Klartext; PTY-Name-Ergänzung)

·         DI = Decoder-Information (Mono/Stereo; Kunstkopfstereophonie; komrimiert/unkomprimert; Dynamischer oder statischer PTY)

·        Bit 2 :

·         PS = Sendername im Klartext

·         eingestellte Frequenz

·         AF = Alternativ-Frequenzen (ggf. mit Regionalisierung!; nicht vorhanden bei Kabelempfang!)

·         Country-Code (z.zt. aus Platzmangel auskommentiert im Source-Code)

·         Area-Coverage (z.zt. aus Platzmangel auskommentiert im Source-Code)

·         Program Reference Nummer (z.zt. aus Platzmangel auskommentiert im Source-Code)

·         Language (Klartext) (z.zt. aus Platzmangel auskommentiert im Source-Code)

·        Bit 3:

·         lokale Uhrzeit formatiert „hhH:mmM

·         Modified Julian Day-Number

·         Wochentag

·         Datum formatiert „Monday, TT.MM.JJJJ

·

·        Bit 4 :

·         Radiotext-Zeichen-Länge

·         Radiotext

·        Bit 5 :

·         Emergency Warning System: EWS, EWS0...EWS4 (Hex)  (z.zt. aus Platzmangel auskommentiert im Source-Code)

·         Bit 6 :

·         EON-PS = EON-Sendername im Klartext

·         EON-PI-Code = Program Identification Code

·         EON-PIN-Code =

·         EON-TP/TA (EON-Travel Program/Travel Announcement)

·         EON-Programmtyp EON-PTY (Nummer; 16-Zeichen-Klartext)

·         EON-AF und Mapped Frequencies (Alternativ-Frequenzen; zugeordnete Frequenzen)

·         Bit 7 :

·         PIN-Code (hex + binär)

·         Linkage Actuator LA

·         Linkage Information (hex)

·         Language Code (hex)

·         Ext. Country Code (hex)

·         TMC-Identification (hex)

·          EWS-Channel (hex)






'kompiliert mit BASCOM V2.0.7.7.
'----------------------------------

'Ausstehende Korrekturen/Verbesserungen:
'---------------------------------------
'- beachte, daß angesteckter Programmieradapter Fehlfunktionen auslöst, da scheinbar Tasten gedrückt sind
'- Vergesse nicht abschließend $EEPROMHEX einzukommentieren

'- PWM-Werte über 1023 beschneiden
'- scroll PWM-Output mit Encoder beim Einschalten oder im Betrieb
'- PWM-Out auch in FM_Tune_Status_Freq_LCD (CALL-SUB)
'- kurze Frequenz-Anzeige in Radiotext auch bei stehendem Radiotext oder Ping-Pong-Scrolling

'- Prüfe AM-Sendernamen-Eingabe/Speicherung/Löschung/Einlesen
'- tausche kurzen und langen S5-Druck (Memory STORE/RECALL aus)
'- Prüfe Property-Verstellung
'- Prüfe RS232-Steuerung
'- prüfe, ob PTY-Name, Ländercode, Regionalcode, Language-Code (evtl. nicht im Kabel) richtig dekodiert werden

'- evtl. Band-Rollover doch wieder einführen für Scan???
'- FM-Bandstart alternativ auf 64MHz setzen. Mal gucken, was da los ist :-)
'- Amateurfunkbänder einbauen?
'- I2C-Befehle verkürzen mit I2CRECEIVE, I2CSEND


'Ausstehende Verbesserungen RDS:
'-------------------------------
'- Linefeed LF in Radiotext auswerten (bisher nur NOPs)
'- RT-Empfang kontinuierlich auch nach Erst-Dekodierung einer Nachricht, solange wie kein A/B-Flagwechsel?
'- PIN_code im Klartext auswerten?
'- TMC-Dekodierung implementieren (Gruppe 8)?

'Versionshistorie:
'-----------------

'V1.0.0.:
'--------
'- FM-Deemphasis auf "1"(=50µs für Europa) anstelle Default-Wert "2" (=75µs für USA etc.) !!!
'- Frequenzsuchraster FM : 50Khz (anstelle Default-Wert 100 khz )
'- Max. Tune-Error FM 20kHz (empfohlen lt. Datenblatt) anstelle Default-Wert 30 kHz
'- Letzte eingestellte Frequenz/Band/AM-FM-Modus beim Einschalten aus EEPROM einlesen und bei Veränderungen jeweils in EEPROM speichern
'- 50 FM-Speicher, 50 AM-Speicher + Namen
'- S2/S4 länger als 2s gedrückt --> FM/AM-Bandscan und automatische Abspeicherung der gefundenen Sender In Speicher 1...n (max. 30); Speicher 1 dann aufrufen
'- Beim Speichern eines AM-Senders wird Name (10 Zeichen) mit Drehencoder+Memory-Taste eingegeben und nach 10 Zeichen automatisch mitgespeichert
'- Falls Property-EEPROM-Speicher=$FF --> lese Default-Wert aus Si4735 aus und speichere in Property(n)
'- Einstellung der je acht Properties durch Drücken von S5 (Memory) länger als 2s
'  - Auswahl der Property mit Drehencode
'  - Bestätigen mit kurzem Tastendruck von S5 (Memory)
'  - Variation der Property mit Drehencoder innerhalb der erlaubten Grenzen
'  - Bestätigen und Abspeichern der Property mit kurzem Tastendruck von S5 (Memory)
'- FM-Anzeige:
'  - Ergänzung "S" = Stereo , "R" = RDS-Daten vorhanden (LCD-Zeile 2, Spalte 15/16)
'- Ausgabe (sehr vieler) RDS-Informationen (meist) im Klartext über RS-232

'V1.0.1.:
'--------
'Anzeige der Betriebsspannung bei Start
'Anzeige der HW/FW/Rev. nach Powerup
'Anzahl KW-Bänder erweitert
'KW-Band bei Umschaltung im Klartext ausgeben
'Kommentare auf LCD bei allen Aktionen

'V1.0.2.:
'--------
'FM-Senderspeicher auf 50 erweitert
'AM-Senderspeicher auf 50 erweitert
'EEPROM enthält einige ausgewählte gültige LW,MW-Frequenzen und Namen
'EEPROM enthält gültige Default-Werte für Properties

'V1.0.3.:
'--------
'RDS: AF-Speicherung korrigiert
'RDS: Länder und Regionalcodes explizit
'RDS: Gruppe 1A und 1B-Dekodierung implementiert
'RDS: Language-Code im Klartext
'RDS: Datumsberechnung aus MJD implementiert
'RDS: Gruppe 10A-Dekodierung implementiert (PTYN)
'RDS: Gruppe 9A-Hex-Ausgabe implementiert (EWS)

'V1.0.7.:
'--------
'RDS: Inverses "R" für RDS+Radiotext-Empfang

'V1.0.8.:
'--------
'Codetabelle für Sonderzeichen, insbes. Umlaute
'RS232 Befehl "j" für einzelne RDS-Info-Teilbereiche jetzt mit Subvariable --> jedes gesetzte Bit (0...6) = 1 Teilberich der gesamten RDS-Info
'Ping-Pong Scrollen bei Radiotext-Länge <25, sonst Scrollen von links n. rechts und Repeat
'bem Scrollen: Start und Ende länger stehen lassen (3x Schleifendurchlauf)
'geänderte PWM-Ausgabe (anstelle RSSI): Stereo-Signal (R3 Bit 0..6[%])
'PWM-Ausgabe Frequenz-Offset "Ratio-Mitte" (FM_RSQ_Status, R7 Bit0:7 [kHz]), wählbar durch Tastendruck S2 beim Einschalten
'Sonderzeichen "ST" für STEREO-Signal definiert, Ausgabe auf Zeile 2, Spalte 15
'Sonderzeichen "RT" für RADIOTEXT-Signal definiert, Ausgabe auf Zeile 2, Spalte 16; ersetzt inverses R

'V1.0.9.:
'--------
'RAM-Variablen optimiert
'EON-Dekodierung eingebaut

'V1.1.0.:
'--------
'IRS optimiert
'zugelassene Blockerrors testweise auf 2 = 3...5 korrigierbare Errors gesetzt
'über RS232 wird nur ein Datensatz ausgegeben
'falls bei Bandscan kein Sender gefunden wird --> kein Memory_Scroll-Modus
'alternative PWM-Ausgabe Frequenz-Offset "Ratio-Mitte" (FM_RSQ_Status, R7 Bit0:7 [kHz]), wählbar durch Tastendruck S2 beim Einschalten
'alternative Frequenz-Schrittweite manuell: 10kHz (FM), 1kHz (AM), wählbar durch Tastendruck S3 beim Einschalten

'V1.1.1.:
'--------
'S2 beim Einschalten gedrückt: Toggelt alternative PWM-Ausgabe Frequenz-Offset "Ratio-Mitte"
'S3 beim Einschalten gedrückt: Toggelt alternative Frequenz-Schrittweite manuell: 10kHz (FM), 1kHz (AM) / 50 kHz (FM) / 9/9/5 kHz (AM)
'EEPROM speichern und lesen der obigen Flags
'zugelassene Blockerrors wieder auf 1 = 1...2 korrigierbare Errors zurückgesetzt
'Betriebsspannungsmessung und Firmware-Anzeige aus Platzgründen auskommentiert


'EEPROM-Memory-Map:
'------------------
'  1 = Anzahl belegter FM-Senderspeicher($FF = unbelegt) "Fm_memorymax"

'  2...101 = 50 Gespeicherte AM-Frequenzen "Fm_memory(n)"
'102...201 = 50 Gespeicherte FM-Frequenzen "Am_memory(n)"
'202...751 = 50 Sendernamenspeicher f. AM-Sender; je 10+1 Bytes "Am_text(n)"

'995...999   = Anzahl belegter Senderspeicher in LW, MW, KW1, KW2, KW3
'1000        = Letzter eingestellter Modus (AM/FM)
'1001...1002 = Letzte Eingestellte FM-Frequenz
'1003...1004 = Letzte eingestellte AM-Frequenz
'1005        = Letztes eingestelltes AM-Band
'1006...1021 = 16 Bytes Tuning-Properties "Property_dat(n)"
'1022        = Flag für FM-PWM-Ausgabe
'1023        = Flag für manuelle Schrittweite




$regfile = "m328pdef.dat"                                   'ATMega328P-PU: 32k Flash 2k RAM 1k EEPROM
$crystal = 8000000                                          '8 MHz
$hwstack = 100                                              'je 2 Byte für Rücksprungadressen CALL/GOSUB/FUNCTION; je 34 Byte pro (multiple) IRS
$swstack = 100                                              'je 2 Byte für (lokale Variable + Variablen, die an ein Unterprogramm übergeben werden)
$framesize = 100                                            ' (mit Byval übergebene + lokale Variable) + 24 Bytes für Umwandlungsroutinen (PRINT/LCD, INPUT, FORMAT(FP-Variable), STR$

$map                                                        'Report-File um die Label-Adressen erweitern

'$sim                                                                            'Befehle für Simulation, damit Wait-Zyklen nicht abgearbeitet werden
'$dbg                                                                            'zur Stackanalyse

'$prog &HFF , &HD7 , &HD7 , &HFD                                                 'Fuse bytes.

$baud = 38400                                               '38.400 Baud über Hardware Rs-232 an FTDI

$lib "I2C_TWI.LBX"                                          'nur bei Benutzung der Hardware I2C-Ports




'PIN-Configuration:
'------------------

'INPUT:
'------
'PB2 = Pin 16 Taster S2
'PB3 = Pin 17 Taster S3
'PB4 = Pin 18 Taster S4
'PB5 = Pin 19 Taster S5
'PC1 = Pin 24 Encoder
'PC2 = Pin 25 Encoder
'PC0 = Pin 23 ADC für Lautstärke-Poti
'PD0 = Pin 2  RxD


'*** Taster ***
Config Pinb.2 = Input : S2 Alias Pinb.2 : Set Portb.2       'PB2=S2 Pullup einschalten
Config Pinb.3 = Input : S3 Alias Pinb.3 : Set Portb.3       'PB2=S2 Pullup einschalten
Config Pinb.4 = Input : S4 Alias Pinb.4 : Set Portb.4       'PB2=S2 Pullup einschalten
Config Pinb.5 = Input : S5 Alias Pinb.5 : Set Portb.5       'PB2=S2 Pullup einschalten

'*** Encoder ***
Config Pinc.1 = Input : Set Portc.1                         'Encoder-Portpins Pullups einschalten
Config Pinc.2 = Input : Set Portc.2

Config Pinc.0 = Input                                       'ADC0 für Lautstärke-Poti

Config Pind.0 = Input                                       'RxD für Hardware RS-232


'OUTPUT:
'-------
'PB0 = Pin 14 Verkürzungsspule
'PB1 = Pin 15 Verkürzungsspule
'PC3 = Pin 26 Verkürzungsspule
'PC4 = Pin 27 I2C-SDA: Si4735 Data
'PC5 = Pin 28 I2C_SCL: Si4735 Clock
'PD1 = Pin 3  TxD

'PD2...PD7 = EADOGM162:RS,E,DB4...DB7

Config Pinb.0 = Output                                      'Spule MF
Config Pinc.3 = Output                                      'Spule LF
Config Pinb.1 = Output                                      'PWM1A-Ausgang für S-Meter

Config Pind.1 = Output                                      'TxD für Hardware RS-232



'******************
'*** Konstanten ***
'******************





'*****************
'*** Variablen ***
'*****************


Dim N As Byte , N1 As Byte , N2 As Byte                     'HilfsVariable Schleifenzähler
Dim I As Word , I1 As Word , I2 As Word                     'IndexVariable
Dim T As Word                                               'Schleifendurchlaufzähler Main-Loop
Dim Lcdrefresh As Byte                                      'Schleifenzähler; nach 5 Durchläufen x 200 Mainloop-Durchläufen Frequenz und Tuingdetails erneuern

Dim D As Byte                                               'Hilfs-Variable "Daten"
Dim Lo As Byte , Hi As Byte                                 'Lo und High-Byte f. diverse Zwecke

Dim Text1 As String * 16                                    'allgemeiner Textausgabe-String
Dim Byte1 As Byte , Byte2 As Byte , Word1 As Word , Word2 As Word , Long1 As Long , Float1 As Single


'*** Poti, Taster, Encoder ***

Dim Pot As Word                                             'Poti-Wert aus ADC
Dim Dif As Integer                                          'Differenz zum letzten Poti-Wert
Dim T1 As Word , T2 As Word , T3 As Word , T4 As Word       'Verzögerungszähler für lang gedrückte Tasten
Dim Encoder1 As Integer , Encoder1old As Integer            'gelesene Encoder-Bits
Dim Code1 As Byte , Code1old As Byte                        'Encoder-Codes

'*** Frequenzen, Bänder, Schrittweiten ***

Dim Am_fm_flag As Byte                                      'Flag für AM-/FM-Modus: 1=AM, 0=FM
Dim Freq_fm As Word                                         'FM-Frequenz
Dim Freq_am As Word                                         'AM-Frequenz
Dim Freq As Word                                            'Frequenz
Dim Band As Byte                                            'AM-Frequenzband
Dim Band_start(17) As Word , Band_end(17) As Word           'Band_start/-end-Frequenzen
Dim Band_name As String * 16                                'Bandname
Dim Am_lower_limit As Word : Am_lower_limit = 149           'absolute AM-Grenzfrequenzen
Dim Am_upper_limit As Word : Am_upper_limit = 23000
Dim Seek_step As Byte                                       'Suchschrittweite in kHz
Dim Freq_step_fine_flag As Byte                             'Flag, ob FM-Step=10kHz, AM-Step=1 kHz (Einschalten S3 gedrückt)

'*** Senderspeicher ***

Dim Am_memory(50) As Word                                   '30 AM-Sendespeicher (Frequenz, 2 Byte)
Dim Am_memorypos As Byte                                    'aktueller AM-Speicherplatz
Dim Am_memorymin As Byte                                    'min. Speicherplatz in gewähltem Speicherbereich
Dim Am_memorymax As Byte , Scan_memorymax As Byte           'Anzahl benutzter Speicherplätze AM-Sender;
Dim Lw_memorymax As Byte , Mw_memorymax As Byte , Kw1_memorymax As Byte , Kw2_memorymax As Byte , Kw3_memorymax As Byte
Dim Am_text(50) As String * 10                              'AM-Sendernamen-Speicher a´ 10 Byte
Dim Am_textpos As Byte                                      'Positionszeiger für AM-Sendernamen-Eingabe
Dim Am_textaktiv As Bit                                     'Flag für AM-Sendernamen-Eingabe
Dim Fm_memory(50) As Word                                   '30 FM-Sendespeicher (Frequenz, 2 Byte)
Dim Fm_memorypos As Byte                                    'aktueller FM-Speicherplatz
Dim Fm_memorymax As Byte                                    'Anzahl benutzter Speicherplätze FM-Sender
Dim Memory_aktiv_flag As Bit                                'im Speicher-Scroll-Modus


'*** Si4735 ***

Dim Rssi As Word                                            'Signalstärke dBuv
Dim Snr As Word                                             'SNR (dB)
Dim Stereo_signal As Byte                                   'Stereo-Signal in %
Dim Freq_offset As Byte                                     '+/- Frequenz-Abweichung in kHz
Dim Pwm_output As Byte                                      'Flag für PWM-Ausgang (0=Stereo-Signal, 1=Freq.-Offset, 2=RSSI, 3=SNR)
Dim C As Long                                               'Antennten-Kapazität
Dim Fin As Long                                             'Eingabe-Frequenz
Dim H As Byte , L As Byte                                   'HilfsVariable High-/Low-Byte
Dim Vol As Byte                                             'Volume
Dim Status As Byte                                          'Statusbyte aus Si4735
Dim Bltf As Bit                                             'Statusbyte für erreichen der Bandgrenze bei Suchlauf
Dim Valid As Bit                                            'Flag für gültige Frequenz (über Pegel- und SNR-Schwelle)
Dim R1 As Byte , R2 As Byte , R3 As Byte , R4 As Byte       '12* gelesene Response-Bytes aus Si4735
Dim R5 As Byte , R6 As Byte , R7 As Byte , R8 As Byte
Dim R9 As Byte , R10 As Byte , R11 As Byte , R12 As Byte
Dim Property_adr As Word                                    'Property-Adresse
Dim Dat As Byte , Dat_word As Word                          'Datenbyte (u.a. Property-Low-Byte)
Dim Property_dat(16) As Byte                                '16 Byte Tuning-Parameter f. Si4735
Dim Property_adress(16) As Word
Dim Property_max(16) As Byte
Dim Property_min(16) As Byte
Dim Property_default(16) As Byte
Dim Property_aktiv As Byte                                  'Flag für Encoder-Eingabe Properties (1=Property-Scroll-Modus, 2=Property-Einstell-Modus)


'*** RDS-Variablen ***

Dim Rds_flag As Bit                                         'RDS-Signal vorhanden
Dim Rds_block_errors As Byte : Rds_block_errors = 1         'max. zulässige RDS-Block-Fehler: 0=0 Errors, 1=1...2 errors correctable, 2=3...5 errors correctable, 3=uncorrectable
Dim Block_errors_block_a As Byte , Block_errors_block_b As Byte , Block_errors_block_c As Byte , Block_errors_block_d As Byte       'Errors Block A,B,C,D

Dim Service As Byte                                         'Gruppennummer
Dim Tp As Byte , Ta As Byte                                 'Flag für Travel-Program, Travel Announcement
Dim Pi As Word                                              '16 bit Programm-Identification-Nummer
Dim Ms_flag As Bit                                          'Music/Speech
Dim Di_counter As Byte                                      'Decoder Information-Zähler modulo 4
Dim Di(4) As Byte                                           'Decoder-Informationen
Dim Pty As Byte , Ptyn As Byte                              'Program-Type,Program-Type Name
Dim Pty_name As String * 8 , Pty_name_flag As Byte          'PTYN aus Gruppe 10A

Dim Ps_name As String * 8 , Ps_name_last As String * 8      'Sendername aus RDS, 8 Zeichen
Dim Ps_counter As Byte , Ps_flag As Bit                     'Zähler für decodierte 2Byte-PS Blocks, Flag für komplette Dekodierung

Dim Af_flag As Byte                                         'Flag für gefundene AFs, 1=gefundene, 2=Liste fertig
Dim Af(25) As Word                                          'Alternate Frequencies
Dim Freq_af As Word
Dim Af_max As Byte                                          'Anzahl von AF
Dim Af_number As Byte                                       'laufende Nummer AF
Dim Lw_mw_af As Bit                                         'Flag für folgende LW-MW-Frequenz in Block D
Dim Method_b As Bit                                         'Flag für AF-Methode B
Dim Reg_flag As Bit                                         'Flag für Regionalprogramm/-Frequenzen

Dim Eon_flag As Byte                                        'Flag für EON-Dekodierung: 0 oder $FF = nicht empfangen; 1= Start empfangen, 2=vollständig empfangen
Dim Ps_eon As String * 8                                    'EON:PS
Dim Pty_eon As Byte                                         'EON:PTY
Dim Tp_eon As Bit , Ta_eon As Bit                           'EON:TP/TA
Dim Pi_eon As Word , Pic1_eon As Byte , Pic2_eon As Byte    'EON:PI
Dim Pin_code_eon As Word                                    'EON:PIN
Dim Af_eon(12) As Word                                      'EON: AF/Tuned-Freq. - Mapped Freq.
Dim Vc_counter_eon As Word                                  'Zähler für Adress-Segment
Dim Link_info As Word                                       'Linkage-Information

Dim La As Bit                                               'Linkage Actuator-Flag
Dim Vc As Byte                                              'Variant Code
Dim Ecc As Byte                                             'Extended Country Code
Dim Lc As Word                                              'Language Code
Dim Ews As Word , Ews0 As Byte , Ews1 As Byte , Ews2 As Byte , Ews3 As Byte , Ews4 As Byte       'Emergency Warning System
Dim Pin_code As Word                                        'Program-Identification-Number
Dim Tmc_ident As Word                                       'TMC-Idenfication

Dim Radiotext_on As Bit : Radiotext_on = 1                  'Flag, ob RDS-Text angezeigt werden soll, oder nicht
Dim Radiotext_present As Bit                                'Flag für Radiotext in RDS-Daten
Dim Radiotext_first_aqu As Bit                              'Flag für Radiotext Erstaquisition (Grupppe 2A oder 2B in RDS-Daten enthalten)
Dim Radiotext_start_decode As Byte                          'Flag, daß RT-Dekodierung gestarrtet hat
Dim Segment As Byte , Position As Byte                      'Segment-Nummer des letzten empfangen egmentes
Dim Char_counter As Byte                                    'Zeichenzähler
Dim Radiotext As String * 64 , Radiotext_new As String * 64 'Radiotext, max. 64 Zeichen
Dim Radiotext_ab_flag As Byte , Radiotext_ab_flag_old As Byte       'Toggle-Bit für neue Radiotext-Info
Dim Radiotext_ready As Bit                                  'Radiotext anzeigen --> Carriage Return oder alle Gruppen gesendet in Radiotext
Dim Radiotext_display_pos As Byte                           'Aktuelle, rechte Stelle des RT
Dim Radiotext_length As Byte , End_position As Byte         'Länge des Radiotext-Strings
Dim Radiotext_lf_pos As Byte                                'Position des nächsten LF
Dim Display_string As String * 16                           '16-Byte String für LCD Zeile 1
Dim Scroll_counter As Byte                                  'Verzögerungszähler für 1. und letztes Zeichen beim Scrolling
Dim Direction As Bit                                        '0=nach rechts, 1=nach links
Dim Replace_codes(127) As Byte                              'Sonderzeichen-Tabelle
Dim Rds_over_rs232_control As Byte                          'Control-Byte für RDS-Ausgabe An/Aus (an RS-232)

Dim Pos As Byte                                             'Positionszeiger in Ausgabestring
Dim Ch As String * 1                                        '1 Zeichen für String
Dim Tx As String * 2                                        '1 Doppelzeichen für String
Dim Freq_string As String * 6                               'Frequenzausgabe-String "108.45" für FM oder "1234" für AM

Dim Minuten As Integer , Utc_min As Byte                    'Minuten
Dim Stunden As Integer , Utc_hour As Byte                   'Stunden
Dim Utc_offset As Byte
Dim Mjd As Long                                             'Modified Julian Date
Dim Year As Integer , Month As Byte , Day As Byte , Wd As Long
Dim K As Byte , Ks As Single , Ms As Single , Ys As Single  'Hilfsvariablen

'*** RS-232 Variablen für I2C-Steuerung vom PC ***

Dim Command As Byte                                         'eingelesenes Kommando-Byte
Dim Bytesout As Byte
Dim Bytesin As Byte
Dim Data_i2c(10) As Byte                                    'zu lesende/schreibende I2C-Daten




'**********************************
'*** SUB-/FUNCTION Definitionen ***
'**********************************

Declare Function Si4735_get_property(byval Prop_adr As Word) As Word       'Hole Property-Wert Nr. N (1...16)

Declare Sub Si4735_get_status_byte()                        'Status-Byte holen. Bit0 =
Declare Sub Si4735_wait_for_seek_tune_cplt()                'Warte, bis Status-Bytet.0 = 1 = STC = Seek/Tune Complete --> bereit zum nächsten Befehlsempfang
Declare Sub Si4735_wait_for_clear_to_send()                 'Warte bis Status-Byte.7 = CTS = "Clear to Send"
Declare Sub Si4735_set_rx_volume()                          'Property "Volume" setzen
Declare Sub Si4735_set_property(byval Prop_adr As Word , Byval Prop_value_high As Byte , Byval Prop_value_low As Byte)       'Property setzen
Declare Sub Si4735_print_property_lcd()                     'Property-Wert Nr. N auf LCD ausgeben
Declare Sub Si4735_init()                                   'Ruft Init=Powerup, Si4735_set_rx_volume, FM_Tune_Freq, Am_tune_status_freq_print_lcd, Rds_init auf; Setzt Properties 1-8
Declare Sub Si4735_get_rev()                                'Hole IC, Firmware und Rev. und schreibe auf LCD

Declare Sub Am_tune_freq()
Declare Sub Am_seek_freq_up()
Declare Sub Am_seek_freq_down()
Declare Sub Am_tune_status_freq_print_lcd()
Declare Sub Am_stop_seek_tune()
Declare Sub Am_rsq_status()
Declare Sub Am_seek_step()                                  'Setze AM-Frequenzschritt
Declare Sub Call_am_memory(am_memory_number As Byte)
Declare Sub Call_fm_memory(fm_memory_number As Byte)
Declare Sub Write_ammemories_eeprom(stored_memories As Byte , Byval Start_memory As Word)       'Schreibe Anzahl gespeicherter Sender in AM-Bändern ins EEPROM
Declare Sub Read_ammemories_eeprom(stored_memories As Byte , Byval Start_memory As Word)


Declare Sub Fm_tune_freq()
Declare Sub Fm_seek_freq_up()
Declare Sub Fm_seek_freq_down()
Declare Sub Fm_tune_status_freq_print_lcd()
Declare Sub Fm_stop_seek_tune()
Declare Sub Fm_rsq_status()
Declare Sub Lcd_freq(byval Fm_freq As Word , Byval Y_pos As Byte , Byval X_pos As Byte)       'Drucke FM_Freq in LCDPosition Y,X
Declare Sub Lcd_scanning                                    'drucke "Scanning..." in untere LCD-Zeile, lösche "mxx "  rechts oben

Declare Sub Eeprom_save()                                   'Frequenzdaten in EEPROM sichern

Declare Sub Rds_init()                                      'RDS-Initialisierung
Declare Sub Rds_reset()                                     'RDS-Variablen zurücksetzen nach SYNC-Lost oder neuem Sender
Declare Sub Rds_get_status_and_data()                       'hole 1 RDS-Gruppe + RDS-Stausbytes R1...R14 aus Si4735
Declare Sub Rds_decoding()                                  'Ausgabe RDS-Sendername und RDS-Zeit auf 2.Display-Zeile bzw. Radiotext
Declare Sub Rds_calc_af(af_index As Byte , Af_word As Word) 'Berechne Frequenz (FM/LW/MW) einer gültigen AF
Declare Sub Rds_char_code(chr_code As Byte)                 'Ersetze RDS-ASCII-Code mit EADOGM-Code
Declare Sub Make_freq_string(byval Af_freq As Word)         'erzeuge Freq_string für formatierte AM-/FM-Frequenz

Declare Sub Radiotext_decoded()                             '1x Radiotext-Message dekodiert
Declare Sub Radiotext_scroll()                              'Scrolle Radiotext um 1 Zeichen nach rechts
Declare Sub Radiotext_start()                               'Bringe Radiotext erneut in Anfangsposition

'Declare Sub Blockerrors_service()                                               'Isoliere Blockerrors der 4 Blocks + Gruppennummer
Declare Sub Clear_lcd_lowerline()                           'untere LCD-Zeile löschen
Declare Sub Clear_lcd_upperline()                           'obere LCD-Zeile löschen
Declare Sub Reset_flags()                                   'Eingabeflags zurücksetzen
Declare Sub Reset_encoder()

Declare Sub F_control()
Declare Sub Mam_control()
Declare Sub Mfm_control()
Declare Sub Pc_control_i2c()
Declare Sub Properties()
Declare Sub Rds_print_control()                             'RDS-Ausgabe über RS-232 in Teilen ein- oder ausschalten (pro Bit 1 Segment, max. 8 Teilbereiche)



'**********************
'*** Initialisation ***
'**********************

Open "com1:" For Binary As #1                               'Kanal 1/Com1 für RS-232 öffnen (38400 Baud, 8N1)

Config Scl = Portc.5                                        'Entspricht Hardware-I2C; (evtl. andere I2C-Routine benutzen)
Config Sda = Portc.4
I2cinit
Config Twi = 400000                                         'I2C-Bus mit 400kHz


Config Adc = Single , Prescaler = Auto , Reference = Off    'AD-Wandler für Volume-Poti Abfrage; A_ref = ext = 3,3V
Start Adc

Config Timer1 = Pwm , Prescale = 8 , Pwm = 10 , Compare A Pwm = Clear Down       'TIMER1 als 10bit-PWM-Ausgabe für S-Meter (oder Stereo-Blend/Frequency-Offset)
Start Timer1
Pwm1a = 0

Config Timer0 = Timer , Prescale = 8                        'TIMER0 als Interruptquelle für Encoder-Abfrage

'On Ovf0 Tim0_isr Saveall
On Ovf0 Tim0_isr Nosave

Enable Timer0

Enable Interrupts

Config Lcdpin = Pin , Db4 = Portd.4 , Db5 = Portd.5 , Db6 = Portd.6 , Db7 = Portd.7 , E = Portd.3 , Rs = Portd.2
Config Lcd = 16 * 2 , Chipset = Dogm162v3

Initlcd
Cursor Off Noblink


'Deflcdchar 0 , 1 , 14 , 14 , 1 , 11 , 13 , 14 , 31                              'Inverses "R"
Deflcdchar 0 , 24 , 20 , 24 , 20 , 20 , 7 , 2 , 2           '"RT" = Radiotext-Symbol
'Deflcdchar 7 , 6 , 8 , 6 , 1 , 14 , 4 , 4 , 4                                   '"ST" = Stereo-Symbol (alternativ)
Deflcdchar 7 , 12 , 16 , 12 , 2 , 12 , 7 , 2 , 2            '"ST" = Stereo-Symbol

Deflcdchar 1 , 2 , 5 , 5 , 6 , 5 , 5 , 6 , 8                'ß
Deflcdchar 2 , 32 , 4 , 14 , 4 , 32 , 14 , 32 , 32          '+/-
Deflcdchar 3 , 14 , 17 , 23 , 25 , 25 , 23 , 17 , 14        'Copyright
Deflcdchar 4 , 24 , 25 , 2 , 4 , 8 , 16 , 27 , 27           'Promille
Deflcdchar 5 , 4 , 14 , 21 , 4 , 4 , 4 , 4 , 32             'Pfeil n. oben
Deflcdchar 6 , 32 , 4 , 2 , 31 , 2 , 4 , 32 , 32            'Pfeil n. rechts

'Deflcdchar 7 , 4 , 4 , 4 , 4 , 21 , 14 , 4 , 32                                 'Pfeil n. unten
'Deflcdchar 2 , 16 , 15 , 15 , 17 , 30 , 30 , 1 , 31                             'Inverses "S"
'Deflcdchar N , 32 , 16 , 8 , 4 , 2 , 1 , 32 , 32                                '\
'Deflcdchar N , 15 , 20 , 20 , 23 , 20 , 20 , 15 , 32                            'OE
'Deflcdchar N , 32 , 32 , 10 , 21 , 22 , 20 , 11 , 32                            'oe

Cls                                                         'LCD-Einschalt-Meldung
'Cursor Off Noblink



'*** Band_start/-end-Frequenzen und Bandname ***

Restore Band_data

For N = 1 To 17
    Read Band_start(n)
    Read Band_end(n)
Next N



'*** Property-Grenzwerte einlesen ***

Restore Property_data

For N = 1 To 16                                             'Tuning-Parameter f. Si4735 aus  zurücklesen EEPROM-Adresse 1006...1023
    Read Property_adress(n)                                 'Property-Adressen, Min./Max.Werte aus Data-Zeilen einlesen
    Read Property_min(n)
    Read Property_max(n)
    Read Property_default(n)
Next N



'*** Sonderzeichen-Ersatztabelle ab ASCII 128 für EADOGM-Zeichensatz vs. RDS-Zeichensatz laden ***

Restore Special_characters
For N = 1 To 127
    Read Replace_codes(n)
Next N




'*** Clear Memory = Taste S5 ("Memory") beim Einschalten gedrückt ***

If S5 = 0 Then                                              'Falls beim Einschalten S5 ("Memory") länger als 0,3s gedrückt --> alle Tuning-Parameter+Senderspeicher löschen

   D = 0
   Writeeeprom D , 0                                        'Anzahl gespeicherter AM-/FM-Sender = 0
   Writeeeprom D
   Writeeeprom D , 995                                      '5xAM-Speicher
   Writeeeprom D
   Writeeeprom D
   Writeeeprom D
   Writeeeprom D

   Text1 = Space(10)
   For I = 202 To 741 Step 11                               'AM-Senderspeichernamen löschen
       Writeeeprom Text1 , I
   Next I

   For N = 1 To 16                                          'Tuning-Parameter mit Default-Wert füllen und ins EEPROM schreiben
       Property_dat(n) = Property_default(n)
       D = Property_default(n)
       I = N + 1005
       Writeeeprom D , I
   Next N

End If


'*** letze Einstellwerte aus EEPROM einlesen und prüfen, ob gültig ***

Readeeprom Am_fm_flag , 1000                                'letzen AM/FM Modus aus EEPROM zurücklesen
Readeeprom Freq_fm                                          'letzte Frequenzen zurücklesen'
Readeeprom Freq_am
Readeeprom Band

If Am_fm_flag > 1 Or Freq_fm < Band_start(17) Or Freq_fm > Band_end(17) Or Freq_am < Band_start(1) Or Freq_am > Band_end(16) Then
   Am_fm_flag = 0                                           'Starte mit FM-Modus
   Freq_fm = 10080                                          'FM-Default-Wert = 100.80 MHz
   Freq_am = 549                                            'AM-Default-Frequenz= DLF
   Band = 2
End If

If Freq_am < Band_start(band) Or Freq_am > Band_end(band) Then       'Falls AM-Frequenz außerhalb Bandgrenzen...
   Freq_am = Band_start(band)                               '--> AM-Frequenz auf Bandstart-Anfang
End If


Readeeprom Fm_memorymax , 1                                 'Anzahl gespeicherter FM-Sender aus EEPROM-Adresse 0 einlesen
If Fm_memorymax > 50 Then Fm_memorymax = 0                  'falls EEPROM-Speicher unbeschrieben --> Anzahl gespeicherter FM-Sender=0 setzen


If Fm_memorymax > 0 Then                                    'falls FM-Senderspeicher EEPROM nicht leer --> FM-Senderspeicher einlesen
   For N = 1 To Fm_memorymax
       I = N * 2                                            'EEPROM-Adresse für FM-Frequenz berechnen
       I = I + 100
       Readeeprom Freq , I                                  'FM-Speicherfrequenzen einlesen
       Fm_memory(n) = Freq
   Next N
End If


Readeeprom Lw_memorymax , 995                               '5x genutzte AM-Speicher-Endadressen
Readeeprom Mw_memorymax , 996
Readeeprom Kw1_memorymax , 997
Readeeprom Kw2_memorymax , 998
Readeeprom Kw3_memorymax , 999

Call Read_ammemories_eeprom(lw_memorymax , 1)               'AM-Speicherfrequenzen und Speichernamen zurücklesen
Call Read_ammemories_eeprom(mw_memorymax , 11)
Call Read_ammemories_eeprom(kw1_memorymax , 21)
Call Read_ammemories_eeprom(kw2_memorymax , 31)
Call Read_ammemories_eeprom(kw3_memorymax , 41)



'*** letzte Tuningparameter (Properties) aus EEPROM einlesen ***

For N = 1 To 16                                             'Tuning-Parameter f. Si4735 aus  zurücklesen EEPROM-Adresse 1006...1023
    I = N + 1005
    Readeeprom Dat , I
    Property_dat(n) = Dat

    If Dat < Property_min(n) Or Dat > Property_max(n) Then  'eingelesener EEPROM-Wert außerhalb Wertebererich
       Property_dat(n) = Property_default(n)
    End If
Next N


Readeeprom Pwm_output , 1022                                'Flag für PWM-Ausgabe FM einlsen
If Pwm_output > 3 Then Pwm_output = 0                       'auf Gültigkeit prüfen


Readeeprom Freq_step_fine_flag , 1023                       'Flag für manuelle Schrittweite einlesen
If Freq_step_fine_flag > 1 Then Freq_step_fine_flag = 0     'auf Gültigkeit prüfen








Lcd "DSP-Radio V1.1.1"
Home Lower
Lcd "  Extended RDS"
Wait 1


'*** Ändere PWM-Ausgabe auf Freq-Offset, falls Taste S2 ("FM") beim Einschalten gedrückt ***

Cls
Lcd "PWM Analog-Out:" : Home Lower

If S2 = 0 Then                                              'Falls beim Einschalten S2 ("FM") gedrückt --> PWM-Ausgabe aus FM-Freq-Offset anstelle Stereo-Signal
   Incr Pwm_output : If Pwm_output > 3 Then Pwm_output = 0
   Writeeeprom Pwm_output , 1022                            'Flag für PWM-Ausgabe FM in EEPROM schreiben
End If

Select Case Pwm_output
        Case 0 : Print "FM Stereo-Level"
        Case 1 : Print "FM Freq-Offset"
        Case 2 : Print "Feldstaerke"
        Case 3 : Print "SNR"
End Select

If Pwm_output = 1 Then
   Lcd "FM Freq-Offset"
Else
   Lcd "FM Stereo-Level"
End If

Wait 2


If S3 = 0 Then                                              'Falls beim Einschalten S3 ("Band") gedrückt --> manueller Frequenzschritt
   Toggle Freq_step_fine_flag.0
   Writeeeprom Freq_step_fine_flag , 1023                   'Flag für manuelle Frequenzschrittweite iin EEPROM schreiben
End If

Cls
If Freq_step_fine_flag = 1 Then
   Lcd "FM-Step:10 kHz"
   Lowerline : Lcd "AM-Step: 1 kHz"
Else
   Reset Freq_step_fine_flag
   Lcd "FM-Step:50 kHz"
   Lowerline : Lcd "AM-Step: 5 kHz"
End If

Wait 2


'(
Pot = Getadc(14) : Pot = Getadc(14)                                             '1.1V Bandgap-Referenz messen
Float1 = Pot : Float1 = Float1 / 1024 : Float1 = 1.1 / Float1
Cls : Lcd "Betriebsspannung"
Lowerline : Lcd "      " ; Fusing(float1 , "#.#") ; " V" : Wait 1

Call Si4735_get_rev()                                                           'Hardware/Firmware Daten holen und anzeigen
')
'Vol = 45                                                                        'Default Volume Wert







'*** Si 4735 initialisieren ***
Call Si4735_init                                            '--> Starte FM/AM-Modus in Si4735




'*****************                                                                          k
'*****************
'*** MAIN-LOOP ***
'*****************
'*****************

Do


   '************ RS-332 Control***************************
   '*** 1 Steuerzeichen einlesen und zu SUB verzweigen ***
   '******************************************************

    D = Inkey(#1)
    Select Case D

          Case 102 : Call F_control                         '"f", Freq
          Case 109 : Call Mam_control                       '"m", Memory AM
          Case 110 : Call Mfm_control                       '"n", Memory FM
          Case 112 : Call Properties                        '"p", Property
          Case 105 : Call Pc_control_i2c                    '"i", I2C command
          Case 106 : Call Rds_print_control                 '"j": RDS output On (Sendername, Zeit, Radiotext ausgeben)
          Case 107 : Rds_over_rs232_control = 0             '"k": RDS output Off
          Case 114 : Print Rssi                             '"r": RSSI
          Case 115 : Print Snr                              '"s": SNR

    End Select

    Waitms 1




  '*************************
  '*** Encoder auswerten ***
  '*************************


  '*** Encoder: Property-Anzeige/Einstell-Modus ***

  If Encoder1old <> Encoder1 Then

     Disable Timer0

     If Property_aktiv <> 0 Then                            'im Property-Einstell-Modus?

        'Properties scrollen

        If Property_aktiv = 1 Then                          'im Property-Scroll-Modus?

           If Encoder1 > 0 Then Incr N                      'Property-Adresse erhöhen oder verkleinern und auf Intervall 9...16 bringen
           If Encoder1 < 0 Then Decr N

           If N > 16 Then N = 9                             'Property-Scroll nur im Intervall 1...8 (FM) oder 9...16 (AM)
           If N = 0 Then N = 8
           If N = 8 And Am_fm_flag = 1 Then N = 16
           If N = 9 And Am_fm_flag = 0 Then N = 1

        Elseif Property_aktiv = 2 Then                      'im Property-Setz-Modus (Property_aktiv=2)? --> Je nach Property Max./Min.Werte einhalten

           Dat = Property_dat(n)

           If Encoder1 > 0 Then                             'Property-Wert erhöhen oder verkleinern und auf zulässiges Intervall bringen

              If Dat < Property_max(n) Then
                 Incr Dat
              Else
                 Dat = Property_min(n)                      'Rollover
              End If

           End If

           If Encoder1 < 0 Then

              If Dat > Property_min(n) Then
                 Decr Dat
              Else
                  Dat = Property_max(n)
              End If

           End If

           Property_dat(n) = Dat
           Property_adr = Property_adress(n)                'Neuen Property-Wert setzen
           Call Si4735_set_property(property_adr , &H00 , Dat)

        End If

        Call Si4735_print_property_lcd                      'Property auf LCD ausgeben
        Call Reset_encoder



     '*** Encoder: AM-Modus ***

     Elseif Am_fm_flag = 1 Then                             'im AM Modus?

   '      Disable timer0

         If Am_textaktiv = 1 Then                           'AM-Text Senderspeichernamen-Eingabe?

           'Namenseingabe AM-Sender

            Ch = Mid(am_text(am_memorypos) , Am_textpos , 1)       'aktuelles Zeichen aus Am_text isolieren
            I = Asc(ch)
            If Encoder1 > 0 Then Incr I                     'ASCII-Wert 1 erhöhen oder erniedrigen
            If Encoder1 < 0 Then Decr I
            If I = 126 Then I = 32                          'Bei Überlauf auf "SPACE" zurücksetzen
            If I = 31 Then I = 125                          'Bei Unterlauf auf "~" zurücksetzen
            Ch = Chr(i)                                     'ASCII-Wert in Zeichen zurückverwandeln
            Mid(am_text(am_memorypos) , Am_textpos , 1) = Ch       'Zeichen in Am_text zurückspeichern
            I = Am_textpos + 6
            Locate 2 , I
            Lcd Ch                                          'neues Zeichen ausgeben
            Locate 2 , I

            Call Reset_encoder

         Elseif Memory_aktiv_flag = 1 Then                  'im Memorymodus? --> Speicher durchscrollen

           'Speicher-Scrolling

           If Am_memorymax > 0 Then                         'Scrolling nur, falls überhaupt mind. 1 Sender gespeichert

              If Encoder1 > 0 Then Incr Am_memorypos        'Speicherzeiger +/- 1
              If Encoder1 < 0 Then Decr Am_memorypos

              If Am_memorypos > Am_memorymax Then Am_memorypos = Am_memorymin       'Rollover bei Überschreiten
              If Am_memorypos < Am_memorymin Then Am_memorypos = Am_memorymax       'Rollover bei Unterschreiten

              Call Call_am_memory(am_memorypos)

           End If

         Else                                               'sonst --> Frequenz je nach Band um 1/5/9 kHz erhöhen

           'Frequenz-Erhöhung

            Freq = Encoder1 * 5                             '5 kHz-Default-Schrittweite

            If Freq_step_fine_flag = 0 Then
               If Band < 3 Then Freq = Encoder1 * 9         'Im Grobmodus: LW/MW --> 9 kHz
            Else
               Freq = Encoder1                              'Im Feinmodus --> 1 KHz
            End If

            Freq_am = Freq_am + Freq

            If Freq_am < Am_lower_limit Then Freq_am = Am_lower_limit       'absolute Frequenzgrenzen checken
            If Freq_am > Am_upper_limit Then Freq_am = Am_upper_limit

            Call Am_tune_freq                               'Frequenz einstellen

            Call Am_tune_status_freq_print_lcd

            Call Reset_encoder

         End If




     '*** Encoder: FM-Modus ***

     Elseif Am_fm_flag = 0 Then                             'im FM-Modus, dann...

   '      Disable Timer0                                                        'Encoder verändert --> Frequenz- oder Memory-Inc/Decr

         If Memory_aktiv_flag = 1 Then                      'im Speichermodus? --> Speicher durchscrollen

            If Fm_memorymax > 0 Then

               If Encoder1 > 0 Then Incr Fm_memorypos
               If Encoder1 < 0 Then Decr Fm_memorypos

               If Fm_memorypos > Fm_memorymax Then Fm_memorypos = 1
               If Fm_memorypos < 1 Then Fm_memorypos = Fm_memorymax

               Call Call_fm_memory(fm_memorypos)

            End If

         Else                                               'sonst --> FM-Frequnez um +/-50 kHz verändern

            If Freq_step_fine_flag = 1 Then                 'Frequenz-Schrittweite berechnen
               Freq = Encoder1
            Else
               Freq = Encoder1 * 5
            End If

            Freq_fm = Freq_fm + Freq

            If Freq_fm < Band_start(17) Then Freq_fm = Band_end(17)       'FM-Bandgrenzen checken --> Rollover
            If Freq_fm > Band_end(17) Then Freq_fm = Band_start(17)

            Call Fm_tune_freq                               'und einstellen

            Call Fm_tune_status_freq_print_lcd

            Call Reset_encoder

         End If

     End If

  End If


  '***********************************
  '*** Display periodisch erneuern ***
  '***********************************

  '*** Frequenz, Tuning-Details und ggf. RDS/Radiotext auf Display***


  If Property_aktiv = 0 Then                                'falls gerade nicht im Property-Einstell-Modus und RDS-Data present...
     Call Rds_decoding()                                    'RDS-Loop; hole die letzten Gruppen aus FIFO-Speicher, sobald mind. 14 Gruppen present
  End If


  Incr T                                                    'Schleifenzähler für Mainloop bis 200

  If T = 100 Then T = 0

  If T = 25 Then                                            'bei T=50: Frequenz auf Display, falls Radiotext_ready=0

     If Valid = 0 Then                                      'Bei noch ungültiger Frequenz...

        If Am_fm_flag = 0 Then                              'FM-Modus?

           If Radiotext_ready = 1 Then
              If Scroll_counter > 0 Then                    'Verzögerungszähler
                 Decr Scroll_counter
              Else
                 Call Radiotext_scroll                      'Scrolle Radiotext um 1 Zeichen weiter
              End If
           Else
              Call Fm_tune_status_freq_print_lcd            '--> FM-Fequenz Auf Display (wenn kein Radiotext decodiert)
           End If

        Else                                                'AM-Modus?
           Call Am_tune_status_freq_print_lcd               '--> Am-Status/Frequenz-ausgabe
        End If

     End If

  End If

  If T = 50 Then                                            'bei T=100: Tuning-Details und ggf. RDS auf Display

     If Am_fm_flag = 0 Then                                 'FM-Modus

        Call Fm_rsq_status                                  '--> FM-Tuning-Details

        If Radiotext_ready = 1 Then                         'Radiotext-Anzeige
           If Scroll_counter > 0 Then                       'Verzögerungszähler
              Decr Scroll_counter
           Else
              Call Radiotext_scroll                         'Scrolle Radiotext um 1 Zeichen weiter
           End If
        End If

     Else                                                   'AM-Modus
        Call Am_rsq_status                                  '-->AM-Tuningdetails auf LCD
     End If

  End If

  If T = 0 Or T = 75 And Radiotext_ready = 1 Then

     If Radiotext_ready = 1 Then                            'Radiotext-Anzeige
        If Scroll_counter > 0 Then                          'Verzögerungszähler
           Decr Scroll_counter
        Else
           Call Radiotext_scroll                            'Scrolle Radiotext um 1 Zeichen weiter
        End If
     End If

  End If


  '******************************
  '*** Tastendrücke auswerten ***
  '******************************

  '*** S2 = FM --> Seek-FM Up/Down oder Band-Scan FM ***

    If S2 = 0 Then

       Call Reset_flags                                     'Eingabeflags zurücksetzen
       Call Rds_reset

       If Am_fm_flag = 1 Then                               'falls noch nicht im FM-Modus...
          Am_fm_flag = 0                                    ' --> FM-Modus aktivieren
          T1 = 0
          Call Si4735_init

       Else

          T1 = 0
          Waitms 5                                          'debounce

          Do
             Waitms 1
             Incr T1
          Loop Until S2 = 1

          If T1 < 500 Then                                  'short (<500ms)--> Seekup

             'FM-Seekup

             Valid = 0
             Call Fm_seek_freq_up                           'Stop bei Erreichen der Bandgrenze
             Call Clear_lcd_lowerline
             Waitms 500
             Fm_tune_status_freq_print_lcd

          Elseif T1 > 499 And T1 < 2000 Then                'long (500...2000ms) --> Seekdown

             'FM-Seekdown

             Valid = 0
             Call Fm_seek_freq_down
             Call Clear_lcd_lowerline
             Waitms 500
             Fm_tune_status_freq_print_lcd

          Else                                              'very long (2000ms Scan FM-Band and Store 1...n)

             'FM-Bandscan

             Fm_memorymax = 0 : Fm_memorypos = 0 : Memory_aktiv_flag = 0       'Speicher auf Null setzen
             Freq_fm = Band_start(17)                       'stelle Band_start FM ein (z.B. 87,50 MHz)
             Call Fm_tune_freq                              'Tune auf Band_start
             Bltf = 0                                       'Wraparound-Indikator

             Cls : Lcd "FM-Bandscan" : Wait 1 : Cls

             Do                                             'Schleife für kompletten Bandsuchlauf
                Call Fm_seek_freq_up                        'FM-Suchmodus aufwärts starten
                Call Fm_tune_status_freq_print_lcd          'gefundene Frequenz aus Si4735 holen und anzeigen
                Call Fm_rsq_status                          'RSSI und SNR anzeigen
                Incr Fm_memorymax                           'Memoryzeiger + 1
                Fm_memory(fm_memorymax) = Freq_fm           'Frequenz abspeichern

             Loop Until Bltf <> 0 Or Fm_memorymax = 50      'solange, bis Bandgrenze erreicht oder 30 Speicher voll

             If Fm_memorymax > 0 Then                       'Sender gefunden...

                If Bltf = 1 Then Decr Fm_memorymax          'Bei Bandgrenze wird letzter Speicher doppelt belegt

                Fm_memorypos = 1                            'Zeiger auf 1. gefundenen Sender in Memory stellen
                Memory_aktiv_flag = 1
                Call Clear_lcd_lowerline
                Freq_fm = Fm_memory(fm_memorypos)
                Call Fm_tune_freq
                Locate 1 , 14                               '"Mnn" in Zeile 1, Spalte 14 schreiben
                Lcd "M" ; Fm_memorypos ; " "

             End If

          End If

       End If

    End If



'*** S3 = AM Band Up/Down  ***

    If S3 = 0 Then

       Call Reset_flags                                     'Eingabeflags zurücksetzen
       Call Rds_reset

       T2 = 0
       Waitms 5                                             'debounce

       Do
          Waitms 1
          Incr T2
       Loop Until S3 = 1

       If Am_fm_flag = 0 Then                               'Falls noch nicht im AM-Modus --> AM-Modus starten
          Am_fm_flag = 1
          Call Si4735_init
       Else
          If T2 < 500 Then                                  'short-->nächst höheres Band / long--> nächst niedrigeres Band
             Incr Band
          Else
             Decr Band
          End If
       End If

       If Band > 16 Then Band = 1                           'Bringe BAND auf Intervall 1...16
       If Band = 0 Then Band = 16                           'mit Rollover

       Call Am_stop_seek_tune                               'Stoppe evtl. Tuning

       Select Case Band                                     'Setze Anfang der Memmorybereichs
               Case 1 : Am_memorypos = 1 : Am_memorymax = Lw_memorymax
               Case 2 : Am_memorypos = 11 : Am_memorymax = Mw_memorymax
               Case 3 To 6 : Am_memorypos = 21 : Am_memorymax = Kw1_memorymax
               Case 7 To 10 : Am_memorypos = 31 : Am_memorymax = Kw2_memorymax
               Case 11 To 16 : Am_memorypos = 41 : Am_memorymax = Kw3_memorymax
       End Select

       Am_memorymin = Am_memorypos                          'Halte min. Speicherplatz im Speicherbereioch fest

       Band_name = Lookupstr(band , Band_names)
       Cls : Lcd Band_name : Lowerline
       Lcd Band_start(band) ; "-" ; Band_end(band) ; " kHz" : Wait 1
       Cls

       Freq_am = Band_end(band) : Hi = High(freq_am) : Lo = Low(freq_am)       'Setze Suchlauf-Ende auf Bandende
       Call Si4735_set_property(&H3401 , Hi , Lo)

       Freq_am = Band_start(band) : Hi = High(freq_am) : Lo = Low(freq_am)       'Setze Suchlauf-Anfang auf Anfang aktuelles Band
       Call Si4735_set_property(&H3400 , Hi , Lo)

       Call Am_tune_freq                                    'Starte mit Band_start-Frequenz
       Waitms 100
       Call Am_tune_status_freq_print_lcd

       If Band < 3 Then                                     'Setze Suchlauf-Schrittweite
          Seek_step = 9                                     '9kHz in LW und MW
       Else
          Seek_step = 5                                     '1kHz in KW
       End If

       Call Am_seek_step()

    End If

'*** S4 = AM Seek --> Seek-AM Up/Down oder Band-Scan FM ***

    If S4 = 0 Then

      Call Reset_flags                                      'Eingabeflags zurücksetzen
      Call Rds_reset


      If Am_fm_flag = 1 Then                                'schon im AM-Modus?

         T3 = 0
         Waitms 5                                           'debounce
         Do
            Waitms 1
            Incr T3
         Loop Until S4 = 1

         If T3 < 500 Then                                   'short (<0,5s)

           'AM-Seekup

            Valid = 0
            Call Am_seek_freq_up
            Call Clear_lcd_lowerline
            Waitms 500
            Am_tune_status_freq_print_lcd

         Elseif T3 > 499 And T3 < 2000 Then                 'long (500...2000ms) --> Seekdown

           'AM-Seekdown

            Valid = 0
            Call Am_seek_freq_down
            Call Clear_lcd_lowerline
            Waitms 500
            Am_tune_status_freq_print_lcd

         Else                                               'very long (>2000ms) Scan AM-Band and Store 1...n)

           'AM-Band-Scan

            If Band = 1 Then                                'LW: von Speicher 1...10 füllen
               Scan_memorymax = 0                           'Speicher-Startposition - 1
               Am_memorypos = 10                            'Speicher-Maximum

            Elseif Band = 2 Then                            'MW: von Speicher 11...20 füllen
               Scan_memorymax = 10
               Am_memorypos = 20

            Elseif Band > 2 And Band < 7 Then               'KW: Tropenbänder 3-6 = 120-60m von Speicher 21...30 füllen
               Scan_memorymax = 20
               Am_memorypos = 30

            Elseif Band > 6 And Band < 11 Then              'KW: Bänder 7-10 = 49-25m von Speicher 31...40 füllen
               Scan_memorymax = 30
               Am_memorypos = 40

            Elseif Band > 10 And Band < 17 Then             'KW: Bänder 11-16 = 22-11m von Speicher 41...50 füllen
               Scan_memorymax = 40
               Am_memorypos = 50

            End If

            Freq_am = Band_start(band)                      'stelle Band_start-Frequenz AM-Band ein
            Call Am_tune_freq

            Bltf = 0                                        'Wraparound-Flag zurücksetzen

            Band_name = Lookupstr(band , Band_names)
            Cls : Lcd "Scan " ; Band_name : Wait 1 : Cls

            Do

               Call Am_seek_freq_up                         'AM-Suchmodus aufwärts starten
               Call Am_tune_status_freq_print_lcd           'gefundene Frequenz aus Si4735 holen und anzeigen
               Call Am_rsq_status                           'RSSI und SNR anzeigen

               Incr Scan_memorymax                          'Memoryzeiger + 1

               Am_memory(scan_memorymax) = Freq_am          'Frequenz abspeichern
               Am_text(scan_memorymax) = Space(10)          'Sendername löschen

            Loop Until Bltf <> 0 Or Scan_memorymax = Am_memorypos       'solange, bis Bandgrenze erreicht

'            If Bltf = 1 Then Decr Scan_memorymax                                'Bei Bandgrenze wird letzter Speicher doppelt belegt
            Am_memorypos = Am_memorypos - 9                 '--> Zeiger auf Anfang des 10er-Speicerhblocks legen

            If Valid = 0 Then                               'letzter Sender ungültig --> kein Sender gefunden
               Freq_am = Band_start(band)                   'Frequenz auf Bandanfang setzen
            Else
               Freq_am = Am_memory(am_memorypos)
            End If

            Call Clear_lcd_lowerline

            Call Am_tune_freq
            Call Am_tune_status_freq_print_lcd

            If Valid = 0 Then                               'falls M1 keine gültige Frequenz --> keine Frequenz gefunden
               Memory_aktiv_flag = 0
            Else
               Memory_aktiv_flag = 1
               Home Lower
               Lcd "M" ; Am_memorypos ; " "
            End If

         End If

      Else                                                  'noch nicht im AM-Modus

         Am_fm_flag = 1                                     'AM-Modus einschalten
         T = 0
         Call Si4735_init

      End If

    End If


    '*** S5: Memory  ***

'je einmal lang drücken (lang) toggelt Recall Modus an/aus

'Speicherauswahl im Recall-Modus mit Dreh-Encoder

'falls Recall-Modus aktiv und dann kurzer Tastendruck für "Store" --> Recall-Modus wird ausgeschaltet
'und Frequenz nicht (!) gespeichert

'2s drücken --> Property-Einstell-Modus starten (Scroll mit Encoder)
'           --> kurz drücken --> gewählte Property mit Encoder verändern
'           --> kurz drücken --> Property-Einstell-Modus beenden

'5s drücken --> alle Daten ins EEPROM speichern

    If S5 = 0 Then

       T4 = 0
       Waitms 5                                             'debounce

       Do
         Waitms 1
         Incr T4
       Loop Until S5 = 1

      If T4 > 5000 Then                                     'longer > 5000 ms --> alle Daten ins EEPROM

         Call Rds_reset

         Cls : Lcd "All data stored" : Lowerline : Lcd "into EEPROM" : Wait 2

         Writeeeprom Fm_memorymax , 1                       'Anzahl belegter FM-Speicher ins EEPROM
         Writeeeprom Lw_memorymax , 995
         Writeeeprom Mw_memorymax , 996
         Writeeeprom Kw1_memorymax , 997
         Writeeeprom Kw2_memorymax , 998
         Writeeeprom Kw3_memorymax , 999

         Call Write_ammemories_eeprom(lw_memorymax , 1)     'Speichere alle AM-Senderspeicher ins EEPROM
         Call Write_ammemories_eeprom(mw_memorymax , 11)
         Call Write_ammemories_eeprom(kw1_memorymax , 21)
         Call Write_ammemories_eeprom(kw2_memorymax , 31)
         Call Write_ammemories_eeprom(kw3_memorymax , 41)

         If Fm_memorymax > 0 Then

            For N = 1 To Fm_memorymax                       'FM-Frequenzspeicher ins EEPROM
                I = N * 2
                I = I + 100
                Freq = Fm_memory(n)
                Writeeeprom Freq , I
            Next N

         End If

         For N = 1 To 16                                    'Properties ins EEPROM
              I = N + 1005
              Dat = Property_dat(n)
              Writeeeprom Dat , I
         Next N

      Elseif T4 > 2000 Then                                 'Sehr langer Tastendruck (>2s) --> Properties-Setz-Modus

         Call Rds_reset

         Property_aktiv = 1                                 'Property-Aktiv-Flag setzen

         If Am_fm_flag = 0 Then N = 1 Else N = 9            'Property No.1/9 als Start (ja nach AM/FM-Modus)

         Call Si4735_print_property_lcd                     'Property anzeigen

      Elseif T4 > 500 Then                                  'Langer Tastendruck (>500ms)= MEMORY-Recall Modus einschalten

         Call Rds_reset

         If Memory_aktiv_flag = 0 Then                      'noch nicht im Memorymodus?

            If Am_fm_flag = 1 Then                          'AM-Modus --> "M" auf Display
               If Am_memorymax >= Am_memorypos Then         'gültige Speicher?
                  Am_memorypos = Am_memorymin
                  Call Call_am_memory(am_memorypos)
                  Memory_aktiv_flag = 1                     ' --> Memorymodus aktiv setzen
               End If

            Else                                            'FM-Modus
               If Fm_memorymax >= Fm_memorypos Then         'gültige Speicher
                  Fm_memorypos = 1
                  Call Call_fm_memory(fm_memorypos)
                  Memory_aktiv_flag = 1                     ' --> Memorymodus aktiv setzen
               End If

            End If

         Else

            Memory_aktiv_flag = 0                           'sonst: Memorymodus schon aktiv --> Memorymodus löschen

            If Am_fm_flag = 1 Then                          'AM-Modus
               Home Lower                                   '"Mnn"-Anzeige auf Display löschen
               Lcd "   "
            Else
               Locate 1 , 14
               Lcd "   "
            End If

         End If

      Else                                                  'kurzer Tastendruck (<500ms) --> STORE MEMORY/STORE PROPERTY

         If Property_aktiv = 2 Then                         '--> im Property-Setz-Modus?

            Property_aktiv = 0                              'Property-Modus wieder ausschalten
            Call Clear_lcd_lowerline                        '2. LCD-Zeile wieder löschen

         Elseif Property_aktiv = 1 Then                     'im Property-Scroll-Modus?

            Property_aktiv = 2                              '--> in Property-Setz-Modus wechseln

         Elseif Memory_aktiv_flag = 0 Then                  'Memorymodus nicht aktiv

            If Am_fm_flag = 1 Then                          'AM-Modus?

               If Am_textaktiv = 0 Then                     'nicht im AM-Text-Eingabemodus?

                  'nächsten Speicher anwählen
                  Incr Am_memorypos                         'Speicherzähler+1 mit Rollover auf ersten Speicherplatz
                  If Am_memorypos > Am_memorymax Then Am_memorypos = Am_memorymin
                  Am_memory(am_memorypos) = Freq_am         'Sender-Frequenz speichern (AM)
                  Am_text(am_memorypos) = Space(10)         'Sendernamen löschen
                  Home Lower                                '"Mnn" auf Display schreiben
                  Lcd "M" ; Am_memorymax ; " "

                  Am_textaktiv = 1                          'Texteingabe für AM-Sendernamen aktivieren
                  Am_textpos = 1
                  Locate 2 , 7                              'Cursor vor Start der Am_text-Eingabe setzen
                  Cursor On Blink                           'Cursor anschalten

               Else

                  'Texteingabemodus
                  Incr Am_textpos                           'Zeichenzähler+1

                  If Am_textpos = 11 Then                   'letztes Zeichen erreicht?
                     Am_textaktiv = 0                       'Am_text-Eingabeflag zurücksetzen
                     Cursor Off Noblink                     'Cursor wieder ausschalten
                  End If

               End If

            Else                                            'FM-Mode

               Incr Fm_memorymax
               If Fm_memorymax > 50 Then Fm_memorymax = 50  'Speicherzähler+1 und bei Überlauf auf max.Wert belassen setzen
               Fm_memory(fm_memorymax) = Freq_fm            'Sender-Frequenz speichern (AM)
               Locate 1 , 14
               Lcd "M" ; Fm_memorymax ; " "

            End If

         Elseif Memory_aktiv_flag = 1 Then                  'sonst: Memorymodus schon aktiv -->

            Memory_aktiv_flag = 0                           'Memorymodus ausschalten

            If Am_fm_flag = 1 Then                          'AM-Modus --> LCD-Display "Mnn" löschen
               Home Lower
               Lcd "   "
            Else
               Locate 1 , 14                                'LCD-Display "Mnn" löschen
               Lcd "   "
            End If

         End If

      End If

    End If


'*** Volume-Poti holen und setzen***

    Pot = Getadc(0)                                         'Hole Poti-ADC
    Pot = Pot / 16                                          'schneide 4 LSB ab
    Dif = Pot - Vol                                         'Berechne Differenz zu aktuellem Vol-Wert
    Dif = Abs(dif)
    If Dif > 1 Then                                         'nur bei Veränderung-->
       Vol = Pot                                            'setze neuen Volume-Wert
       Call Si4735_set_rx_volume
    End If

Loop




'**********************
'**********************
'*** Ende MAIN-LOOP ***
'**********************
'**********************










'*********************
'*********************
'*** SUBs und IRSs ***
'*********************
'*********************




'**************************************************************************
'*** Lese Si4734 Hardware-Code/-rev, Firmware, Lib und gebe auf LCD aus ***
'**************************************************************************

Sub Si4735_get_rev()


    '*** POWERUP ***
    I2cstart
    I2cwbyte 34
    I2cwbyte &H01                                           'CMD = 0x01 = Powerup

    '*** Set AM-/FM-Mode ***
    If Am_fm_flag = 0 Then
       I2cwbyte &B00010000                                  'FM-Modus
    Else
       I2cwbyte &B00010001                                  'AM-Modus
    End If

    '*** Set Analog-/Digital Outputs ***
    I2cwbyte &B00000101                                     'Analog Outputs On, Digital Outputs Off
    I2cstop

    Waitms 120                                              '110ms Wartezeit nach Powerup lt. Datenblatt
    '*** GET REVISION ***
    I2cstart
    I2cwbyte 34
    I2cwbyte &H10                                           'CMD = 0x10 = Get_Rev.
    I2cstop

    Waitms 1

    I2cstart
    I2cwbyte 35                                             'Read-Mode
    I2crbyte Status , Ack
    I2crbyte R1 , Ack
    I2crbyte R2 , Ack
    I2crbyte R3 , Ack
    I2crbyte R4 , Ack
    I2crbyte R5 , Ack
    I2crbyte R6 , Ack
    I2crbyte R7 , Nack
    I2cstop

    Cls
    Lcd "Si47" ; R1 ; " Rev.:" ; R6
    Lowerline : Lcd "FW:" ; R2 ; "." ; R3 ; " Lib:" ; R7
    Wait 2



End Sub



'****************************
'*** Initialisiere SI4735 ***
'*** FM/AM-Modus starten ****
'****************************


Sub Si4735_init()

    Cls

    '*** POWERDOWN ***
    I2cstart
    I2cwbyte 34
    I2cwbyte &H11                                           'CMD 0x11=POWERDOWN
    I2cstop

    Waitms 1

    '*** POWERUP ***
    I2cstart
    I2cwbyte 34
    I2cwbyte &H01                                           'CMD = 0x01 = Powerup

    '*** Set AM-/FM-Mode ***
    If Am_fm_flag = 0 Then
       I2cwbyte &B00010000                                  'FM-Modus
    Else
       I2cwbyte &B00010001                                  'AM-Modus
    End If

    '*** Set Analog-/Digital Outputs ***
    I2cwbyte &B00000101                                     'Analog Outputs On, Digital Outputs Off
    I2cstop

    Waitms 120                                              '110ms Wartezeit nach Powerup lt. Datenblatt


    '*** Lade und setze Properties ***
    If Am_fm_flag = 0 Then                                  'Property-Indices für Schleife
       N1 = 1 : N2 = 8                                      'FM
    Else
       N1 = 9 : N2 = 16                                     'AM
    End If

    For N = N1 To N2                                        'Read back Properties 1...8

        Property_adr = Property_adress(n)
        Dat = Property_dat(n)

        If Dat > Property_max(n) Then                       'Falls Property außerhalb Wertebereich...
           Dat_word = Si4735_get_property(property_adr)     'lese eingestellten (Default-) Wert
           Property_dat(n) = Low(dat_word)                  'und speichere in Property_dat(N)
        Else
           Call Si4735_set_property(property_adr , &H00 , Dat)       'sonst: Property setzen
        End If

    Next N

    Call Si4735_set_rx_volume                               'Set Volume


    If Am_fm_flag = 0 Then                                  'FM-Modus

       Call Si4735_set_property(&H1402 , &H00 , &H05)       'Setze FM_Seek_Freq_Spacing Suchraster-FM auf 50kHz anstelle 100kHz (Default)

       Call Si4735_set_property(&H1108 , &H00 , 20)         'Setze FM_Max_Tune_Error 20kHz anstelle 30kHz (Default)

       Cls : Lcd "       FM" : Lowerline
       Call Lcd_freq(band_start(17) , 2 , 1)
       Locate 2 , 7 : Lcd "-"

       Call Lcd_freq(band_end(17) , 2 , 8)
       Locate 2 , 14 : Lcd "MHz" : Wait 1
       Cls

       Call Fm_tune_freq                                    'Set Frequency

       Call Fm_tune_status_freq_print_lcd                   'Tune-Status auf Display

       Call Rds_init                                        'RDS initialisieren

    Else                                                    'AM-Modus einschalten

       Band_name = Lookupstr(band , Band_names)
       Cls : Lcd Band_name : Lowerline
       Lcd Band_start(band) ; "-" ; Band_end(band) ; " kHz" : Wait 1
       Cls

       Call Am_tune_freq
       Waitms 500

       Call Am_tune_status_freq_print_lcd

    End If

End Sub



'*******************************************************************************
'*** Si4735: Statusbyte holen                                                ***
'*** Bit 7 = CTS = Clear to send next commands                               ***
'*** Bit 6 = ERR = Error                                                     ***
'*** Bit 3 = RSQINT = Received Signal Quality measurement has been triggered ***
'*** Bit 2 = RDSINT = RDS-Interrupt                                          ***
'*** Bit 0 = STCINT = Seek/Tune Complete                                     ***
'*******************************************************************************

Sub Si4735_get_status_byte()                                'Abfrage, ob STC-Bit gesetzt (Seek/Tune Complete), also Si4735 bereit zum Befehlsempfanf

    I2cstart
    I2cwbyte 34
    I2cwbyte &H14                                           'CMD $0x14 = Si4735_Get_status_byte
    I2cstop

    Waitms 1

    I2cstart
    I2cwbyte 35                                             'Read-Mode
    I2crbyte Status , Nack                                  'STATUS-Byte: D7=CTS, D6=ERR, D3=RSQINT, D2=RDSINT, D0=STCINT
    I2cstop

'    If Status.2 = 1 Then Rds_flag = 1 Else Rds_flag = 0

End Sub



'*******************************************
'*** Si4735: Warte bis Statusbit.0 STC=1 ***
'*** Bit 0 = STCINT = Seek/Tune Complete ***
'*******************************************

Sub Si4735_wait_for_seek_tune_cplt()

    Do
       Call Si4735_get_status_byte
    Loop Until Status.0 = 1 Or S2 = 0 Or S3 = 0 Or S4 = 0 Or S5 = 0 Or Encoder1old <> Encoder1

End Sub



'*******************************************
'*** Si4735: Warte bis Statusbit.7 CTS=1 ***
'*** Bit 0 = CTS = Clear to send nxt cmd ***
'*******************************************

Sub Si4735_wait_for_clear_to_send()

    Do
       Call Si4735_get_status_byte
    Loop Until Status.7 = 1

End Sub



'**************************
'*** Si4735: Set-Volume ***
'**************************

Sub Si4735_set_rx_volume()

     Call Si4735_set_property(&H4000 , &H00 , Vol)

End Sub



'**************************************
'*** Si4735: Properties-Word setzen ***
'**************************************

Sub Si4735_set_property(byval Prop_adr As Word , Byval Prop_value_high As Byte , Byval Prop_value_low As Byte )

    Local High_adr As Byte
    Local Low_adr As Byte
    Local High_value As Byte
    Local Low_value As Byte

    Call Si4735_wait_for_clear_to_send()

    High_adr = High(prop_adr)
    Low_adr = Low(prop_adr)

    I2cstart
    I2cwbyte 34
    I2cwbyte &H12                                           'CMD=0x12=Set Property
    I2cwbyte &H00
    I2cwbyte High_adr
    I2cwbyte Low_adr
    I2cwbyte Prop_value_high
    I2cwbyte Prop_value_low
    I2cstop

    Waitms 15                                               '10ms t(complete) laut Datenblatt

End Sub


'*************************************
'*** Si4735: Properties-Word holen ***
'*************************************

Function Si4735_get_property(byval Prop_adr As Word) As Word

    Local High_adr As Byte
    Local Low_adr As Byte
    Local High_value As Byte
    Local Low_value As Byte

    Call Si4735_wait_for_clear_to_send()

    High_adr = High(prop_adr)
    Low_adr = Low(prop_adr)


    I2cstart
    I2cwbyte 34
    I2cwbyte &H13                                           'CMD 0x13=CMD Si4735_get_property
    I2cwbyte &H00
    I2cwbyte High_adr
    I2cwbyte Low_adr
    I2cstop

    Waitms 1

    I2cstart
    I2cwbyte 35                                             'Read-Mode
    I2crbyte Status , Ack                                   'STATUS-Byte: D7=CTS, D6=ERR, D3=RSQINT, D2=RDSINT, D0=STCINT
    I2crbyte High_value , Ack                               'Always $00
    I2crbyte High_value , Ack                               'High und Lowbyte der Property einlesen
    I2crbyte Low_value , Nack
    I2cstop
    Waitms 1

    Si4735_get_property = Makeint(low_value , High_value)

End Function


'*************************************************
'*** Gebe Property-Wert(n) auf LCD Zeile 2 aus ***
'*************************************************

Sub Si4735_print_property_lcd()                             'Property N auf LCD bringen (2. LCD-Zeile)

    Local Property_string As String * 8

    Property_string = Lookupstr(n , Property_names)

    Home Lower
    Dat = Property_dat(n)
    Lcd "P" ; N ; "  " ; Dat ; "    "                       '"P nn Propertywert" in 2. Zeile schreiben
    Locate 2 , 9 : Lcd Property_string

End Sub



'***********************************************
'*** Si4735: Suchschritt AM 1/5/9 kHz setzen ***
'***********************************************

Sub Am_seek_step()

    Call Si4735_set_property(&H3402 , &H00 , Seek_step)

End Sub



'**************************************
'*** Si4735: AM-Frequenz einstellen ***
'**************************************

Sub Am_tune_freq()

    If Freq_am > 500 Then                                   'Verkürzungsspulen setzen:
       If Freq_am > 2000 Then
          Portb.0 = 1                                       'SW
          Portc.3 = 0
       Else
           Portb.0 = 0                                      'MW
           Portc.3 = 1
       End If
    Else
       Portb.0 = 0                                          'LW
       Portc.3 = 0
    End If

    H = High(freq_am)
    L = Low(freq_am)

    I2cstart
    I2cwbyte 34
    I2cwbyte &H40                                           'CMD 0x40 = Tune AM-Frequency
    I2cwbyte &H00
    I2cwbyte H
    I2cwbyte L
    I2cwbyte &H00                                           'Tuning-Cap automatic
    I2cstop

    Waitms 85                                               '80ms bis Seet-Tune Complete lt. Datenblatt

    Call Si4735_wait_for_seek_tune_cplt                     'Warte bis STC-Bit gesetzt

End Sub



'*************************************
'*** Si4735: AM-Suchmodus aufwärts ***
'*************************************

Sub Am_seek_freq_up()

    Call Am_stop_seek_tune                                  'Cancel Seek

    I2cstart
    I2cwbyte 34
    I2cwbyte &H41                                           'CMD=0x41
    I2cwbyte &B00001000                                     'Bit3=Seek Up/Down; Bit2=Wrap/Stop bei Erreichen der Bandgrenze
    I2cstop

    Waitms 85                                               '80ms bis Seet-Tune Complete lt. Datenblatt

    Call Clear_lcd_lowerline : Lowerline : Lcd "Scanning..."

    Call Si4735_wait_for_seek_tune_cplt                     'Warte bis STC-Bit gesetzt

End Sub


'************************************
'*** Si4735: AM-Suchmodus abwärts ***
'************************************

Sub Am_seek_freq_down()

    Call Am_stop_seek_tune                                  'Cancel Seek

    I2cstart
    I2cwbyte 34
    I2cwbyte &H41                                           'CMD=0x41
    I2cwbyte &B00000000                                     'Bit3=Seek Up/Down; Bit2=Wrap/Stop bei Erreichen der Bandgrenze
    I2cstop

    Waitms 85                                               '80ms bis Seet-Tune Complete lt. Datenblatt

    Call Lcd_scanning

    Call Si4735_wait_for_seek_tune_cplt                     'Warte bis STC-Bit gesetzt

End Sub




'*****************************************
'*** Lese AM-Senderspeicher ins EEPROM ***
'*****************************************

Sub Read_ammemories_eeprom(stored_memories As Byte , Byval Start_memory As Word)

    Local End_memory As Word

    If Stored_memories >= Start_memory Then

       End_memory = Stored_memories                         'Schleifenzähler-Endwert = Start + Anzahl Speicher -1
'       End_memory = End_memory + Start_memory
'       Decr End_memory

       For I1 = Start_memory To End_memory
           I = I1 * 2
           Readeeprom Freq , I                              'AM-Frequenz ins EEPROM
           Am_memory(i1) = Freq

           I = I1 * 11
           I = I + 191
           Readeeprom Text1 , I
           Am_text(i1) = Text1                              'AM-Sendernamen ins EEPROM
       Next I1

    End If

End Sub




'**********************************************
'*** Speichere AM-Senderspeicher ins EEPROM ***
'**********************************************

Sub Write_ammemories_eeprom(stored_memories As Byte , Byval Start_memory As Word)

    Local End_memory As Word

    If Stored_memories >= Start_memory Then

       End_memory = Stored_memories                         'Schleifenzähler-Endwert = Start + Anzahl Speicher -1
'       End_memory = End_memory + Start_memory
'       Decr End_memory

       For I1 = Start_memory To End_memory
           I = I1 * 2
           Freq = Am_memory(i1)
           Writeeeprom Freq , I
                                                            'AM-Frequenz ins EEPROM
           I = I1 * 11
           I = I + 191
           Text1 = Am_text(i1)
           Writeeeprom Text1 , I                            'AM-Sendernamen ins EEPROM
       Next I1

    End If

End Sub



'*************************************
'*** Si4735: AM-Suchlauf abbrechen ***
'*************************************

Sub Am_stop_seek_tune()                                     'Stopt aktuellen AM-Suchlauf

    I2cstart
    I2cwbyte 34
    I2cwbyte &H42                                           'CMD=0x42
    I2cwbyte &B00000011                                     'Bit1=1 Cancel Seek; Bit0=1 Clear Seek/Tune Interrupt Status Bits
    I2cstop

    Waitms 1

    Call Lcd_scanning

    Call Si4735_wait_for_clear_to_send

End Sub



'**************************************
'*** Si4735: FM-Frequenz einstellen ***
'**************************************

Sub Fm_tune_freq()

    Call Rds_reset

    Call Fm_stop_seek_tune                                  'Cancel Seek

    H = High(freq_fm)
    L = Low(freq_fm)

    I2cstart
    I2cwbyte 34
    I2cwbyte &H20                                           'CMD=0x20
    I2cwbyte &H00                                           'Always $00
    I2cwbyte H
    I2cwbyte L
    I2cwbyte &H00                                           'Antenna-Cap=Automatic
    I2cstop

    Waitms 65                                               '60ms bis Seek-Tune-Complete laut Datenblatt

    Call Si4735_wait_for_seek_tune_cplt                     'Warte bis STC-Bit gesetzt

    Cls


End Sub



'*************************************
'*** Si4735: FM-Suchmodus aufwärts ***
'*************************************

Sub Fm_seek_freq_up()

    Call Fm_stop_seek_tune                                  'Cancel Seek

    I2cstart
    I2cwbyte 34
    I2cwbyte &H21                                           'CMD=0x21
    I2cwbyte &B00001000                                     'Bit3=Seek Up/Down; Bit2=Wrap/Stop bei Erreichen der Bandgrenze
    I2cstop

    Waitms 65                                               '60ms bis Seet-Tune Complete lt. Datenblatt

    Call Lcd_scanning

    Call Si4735_wait_for_seek_tune_cplt                     'Warte bis STC-Bit gesetzt

End Sub



'************************************
'*** Si4735: FM-Suchmodus abwärts ***
'************************************

Sub Fm_seek_freq_down()

    Call Fm_stop_seek_tune                                  'Cancel Seek

    I2cstart
    I2cwbyte 34
    I2cwbyte &H21                                           'CMD=0x21
    I2cwbyte &B00000000                                     'Bit3=Seek Up/Down; Bit2=Wrap/Stop bei Erreichen der Bandgrenze
    I2cstop

    Waitms 65                                               '60ms bis Seet-Tune Complete lt. Datenblatt

    Call Lcd_scanning

    Call Si4735_wait_for_seek_tune_cplt                     'Warte bis STC-Bit gesetzt

End Sub


'*************************************
'*** Si4735: FM-Suchlauf abbrechen ***
'*************************************

Sub Fm_stop_seek_tune()

    Call Rds_reset

    I2cstart
    I2cwbyte 34
    I2cwbyte &H22                                           'CMD=0x22
    I2cwbyte &B00000011                                     'Bit1=1 Cancel Seek; Bit0=1 Clear Seek/Tune Interrupt Status Bits
    I2cstop

    Waitms 1

    Call Si4735_wait_for_clear_to_send

End Sub



'*************************************************************
'*** Si4735: Frequenz/Tuningdetails FM in R1...R7 auslesen ***
'*** Frequenz auf LCD ausgeben, falls gültig               ***
'*************************************************************

Sub Fm_tune_status_freq_print_lcd()                         'Frequenz holen und ausgeben

    Call Si4735_get_status_byte                             '

    I2cstart
    I2cwbyte 34                                             'Adresse Si4736 für Write
    I2cwbyte &H22                                           'CMD = 0x22 = FM_Tune_Status
'    I2cwbyte &B00000000                                                         'D1=1 Cancel Seek; D0=1 Clear Seek/Tune Complete Interrupt Status Indicator
    I2cwbyte &B00000011                                     'Original-Version --> Cancel Seek, Clear Seek-Tune-Complete Interrupt Bit
    I2cstop

    Waitms 1

    I2cstart
    I2cwbyte 35                                             'Adresse Si4735 für Read
    I2crbyte Status , Ack                                   'Statusbyte (Bit 7=CTS)
    I2crbyte R1 , Ack                                       'Bit7=kompletter Suchlauf (Bandlimit) nach FM_Seek; Valid_channel=Bit 0
    I2crbyte R2 , Ack                                       'Frequenz
    I2crbyte R3 , Ack                                       'Frequenz
    I2crbyte R4 , Ack                                       'RSSI
    I2crbyte R5 , Ack                                       'S/N
    I2crbyte R6 , Ack
    I2crbyte R7 , Nack                                      'Tuning-Capacitor
    I2cstop

    Bltf = R1.7                                             'Statusbit für Erreichen der Bandgrenze bzw. Wraparound

    Freq = 256 * R2
    Freq = Freq + R3

    Rssi = R4

    Snr = R5

    Valid = R1.0

    If Valid = 1 Then                                       'Falls Frequenz Valid --> ausgelesene Frequenz in Freq_fm übernehmen; Daten in EEPROM sichern
       Freq_fm = Freq
       Call Reset_encoder
       Call Eeprom_save
    End If

'    If Radiotext_ready = 0 Then                                                 'falls keine RDS-Anzeige
       Call Lcd_freq(freq_fm , 1 , 1)                       '--> Frequenz-Anzeige
'    End If

'    Pwm1a = Rssi * 12                                                           'RSSI als PWM ausgeben

    Waitms 1

    Call Si4735_wait_for_clear_to_send

End Sub



'*****************************************
'*** Drucke FM_Freq in LCDPosition Y,X ***
'*****************************************

Sub Lcd_freq(byval Fm_freq As Word , Byval Y_pos As Byte , Byval X_pos As Byte)

   Call Make_freq_string(fm_freq)                           'erzeuge Frequenz-String
   Locate Y_pos , X_pos                                     '--> Frequenz in MHz + 2 Nachkommastellen auf Display
   Lcd Freq_string

End Sub


'********************************************
'*** Erzeuge formatierten Frequenz-String ***
'********************************************

Sub Make_freq_string(byval Af_freq As Word)

Local Freq_int As Word
Local Freq_remainder As Word
Local Short_string As String * 2

   If Af_freq > 6000 Then                                   'FM-Frequenz in 10 kHz-Einheiten

      Freq_int = Af_freq / 100 : Freq_remainder = Af_freq Mod 100       'formatiere auf " 88.56" für MHz-Ausgabe
      Freq_string = Str(freq_int) : Short_string = Str(freq_remainder)

      If Freq_int < 100 Then
         Freq_string = " " + Freq_string
      End If

      Freq_string = Freq_string + "."

      If Freq_remainder < 10 Then
         Freq_string = Freq_string + "0"
      End If

      Freq_string = Freq_string + Short_string

   Else                                                     'AM-Frequenz in  kHz

      Freq_string = Str(af_freq)

   End If

End Sub




'************************************************
'*** Drucke "Scanning..." in untere LCD-Zeile ***
'*** Lösche Mxx Feld                          ***
'************************************************

Sub Lcd_scanning()

    Cls
'    Call Clear_lcd_lowerline
    Lowerline : Lcd "Scanning..."
'    Locate 1 , 13 : Lcd "    "                                                  'lösche letzte 4 Zeichen rechts oben

End Sub


'**************************************
'** RSSI und SNR holen und ausgeben ***
'**************************************


Sub Fm_rsq_status()

    I2cstart
    I2cwbyte 34
    I2cwbyte &H23                                           'CMD 0x23=FM_RSQ_STATUS
    I2cwbyte &B00000000                                     'Bit0=0 --> Interrupt Status Preserved
    I2cstop

    Waitms 1

    I2cstart
    I2cwbyte 35
    I2crbyte Status , Ack                                   'Bit 7=CTS;
    I2crbyte R1 , Ack                                       'div. Statusbits
    I2crbyte R2 , Ack                                       'div. Statusbits; Bit0=Fm_freq_valid_flag Channel
    I2crbyte R3 , Ack                                       'div. Statusbits; Bit7=Pilotton
    I2crbyte R4 , Ack                                       'RSSI:0...127dBuV
    I2crbyte R5 , Ack                                       'SNR:=9...127dB
    I2crbyte R6 , Ack                                       'Stereo-Block_errors_block_nd 0...100%
    I2crbyte R7 , Nack                                      'Signed Frequency Offset
    I2cstop

    Rssi = R4
    Snr = R5

'(
    If Status.2 = 1 Then
       Rds_flag = 1                                                             'RDS_INT Flag setzen
    Else
       Rds_flag = 0
    End If
')

    Incr Lcdrefresh                                         'nur bei jedem n. Schleifendurchlauf

    If Lcdrefresh > 4 Then

       Lcdrefresh = 0

'       If Radiotext_present = 0 Then                                              'falls keine Radiotext-Anzeige
       If Radiotext_ready = 0 Then                          'falls keine Radiotext-Anzeige

             Call Clear_lcd_upperline
             Call Lcd_freq(freq_fm , 1 , 1)                 'Frequenz auf Display
             Locate 1 , 8
             Lcd Rssi ; " "                                 'RSSI und
             Locate 1 , 11
             Lcd Snr ; " "                                  'SNR auf Display
             If Memory_aktiv_flag = 1 Then
                Locate 1 , 14                               '"Mnn" in Zeile 1, Spalte 14 schreiben
                Lcd "M" ; Fm_memorypos
             End If

       End If

       If Property_aktiv = 0 Then

          Locate 2 , 15                                     'STEREO-Anzeige-Symbol

          If R3.7 = 1 Then Lcd Chr(7) Else Lcd " "          'Pilotton vorhanden -->Sonderzeichen für ST=Stereo

          Locate 2 , 16                                     'RDS/RADIOTEXT-Anzeige-Symbol

   '       If Radiotext_present = 1 Or Radiotext_ready = 1 Then
          If Radiotext_present = 1 Then
             Lcd Chr(0);                                    'Sonderzeichen "RT" für Radiotext
          Elseif Rds_flag = 1 Then                          '"R" für nur RDS (ohne Radiotext)
             Lcd "R";
          Else
             Lcd " ":
          End If

       End If

    End If

    Stereo_signal = R3 And &B01111111                       'Bit 0...6 von R3 = Stereo-Signal in %
    Freq_offset = R7                                        'Frequency-Offset in kHZ [-128...+128kHz]

    Select Case Pwm_output
            Case 0 : Pwm1a = Stereo_signal * 8              'PWM1A als Stereo-Signal setzen 0...100% = 0...1023
            Case 1 : Pwm1a = Freq_offset * 4                'PWM1A als Freq_Offset setzen +/-128kHz = 0...1023
            Case 2 : Pwm1a = Rssi * 12                      'Signalstärke an PWM-Ausgang 0..85dBµV = 0...1023
            Case 3 : Pwm1a = Snr * 12                       'SNR 0...85dB = 0...1023
    End Select

    Waitms 1

    Call Si4735_wait_for_clear_to_send

End Sub



'*************************************************************
'*** Si4735: Frequenz/Tuningdetails AM in R1...R7 auslesen ***
'*** Frequenz auf LCD ausgeben, falls gültig               ***
'*************************************************************

Sub Am_tune_status_freq_print_lcd()

    I2cstart
    I2cwbyte 34
    I2cwbyte &H42                                           'CMD=0x42
'    I2cwbyte &B00000000                                                         'Bit1=0 Continue Seek; Bit0=Clear Seek/Tune Interrupt Status Bits
    I2cwbyte &B00000011                                     'Original-Version --> Cancel Seek, Clear Seek-Tune-Complete Interrupt Bit
    I2cstop

    Waitms 1

    I2cstart
    I2cwbyte 35                                             'Adresse Si4735 für Read
    I2crbyte Status , Ack                                   'Statusbyte (Bit 7=CTS)
    I2crbyte R1 , Ack                                       'Bit7=kompletter Suchlauf (Bandlimit) nach AM_Seek; Fm_freq_valid_flag=Bit 0
    I2crbyte R2 , Ack                                       'Frequenz
    I2crbyte R3 , Ack                                       'Frequenz
    I2crbyte R4 , Ack                                       'RSSI
    I2crbyte R5 , Ack                                       'S/N
    I2crbyte R6 , Ack                                       'Tuning-Capacitor
    I2crbyte R7 , Nack                                      'Tuning-Capacitor
    I2cstop

    Bltf = R1.7                                             'Statusbit für Erreichen der Bandgrenze

    Freq = 256 * R2
    Freq = Freq + R3

    Rssi = R4

    Snr = R5

    C = 256 * R6
    C = C + R7
    C = C * 95
    C = C / 1000
    C = C + 7

    Valid = R1.0                                            'R1.0 = Valid AM-Frequency

    Home Upper

    Lcd Freq
    If Freq < 10000 Then Lcd " "
    If Freq < 1000 Then Lcd "  "
    Locate 1 , 13
    Lcd C ; " "

    If Valid = 1 Then                                       'Falls Frequenz Valid --> Frequenz übernehmen Daten in EEPROM sichern
       Freq_am = Freq
       Call Eeprom_save
    End If

    Pwm1a = Rssi * 12                                       'Signalstärke an PWM-Ausgang übergeben

    Call Si4735_wait_for_clear_to_send

End Sub




'**************************************
'** RSSI und SNR holen und ausgeben ***
'**************************************

Sub Am_rsq_status()

    I2cstart
    I2cwbyte 34
    I2cwbyte &H43                                           'CMD 0x43
    I2cwbyte &B00000000                                     'Bit0=0 Interrupt Status preserved
    I2cstop

    Waitms 1

    I2cstart
    I2cwbyte 35
    I2crbyte Status , Ack
    I2crbyte R1 , Ack                                       'div. Statusbits
    I2crbyte R2 , Ack                                       'div. Statusbits; Bit0=Fm_freq_valid_flag Channel
    I2crbyte R3 , Ack
    I2crbyte R4 , Ack                                       'RSSI:0...127dBuV
    I2crbyte R5 , Nack                                      'SNR:=9...127dB
    I2cstop

    Rssi = R4
    Snr = R5
'   Incr Lcdrefresh
'   If Lcdrefresh > 5 Then
'      Lcdrefresh = 0
       Locate 1 , 7
       Lcd Rssi ; " "
       Locate 1 , 10
       Lcd Snr ; " "
'   End If
    If Am_textaktiv = 1 Then                                'Im Texteingabemodus -->
       I = Am_textpos + 6
       Locate 2 , I
    End If

    Pwm1a = Rssi * 12
    Waitms 1
    Call Si4735_wait_for_clear_to_send

End Sub




'*************************************************
'*** Stelle AM-Speicher ein und bringe auf LCD ***
'*************************************************

Sub Call_am_memory(am_memory_number As Byte)

    Home Lower                                              '"Mnn" in 2. Zeile schreiben
    Lcd "M" ; Am_memorypos ; "  "

    Freq_am = Am_memory(am_memory_number)                   'Frequenz aus Speicher-Array laden
    Call Am_tune_freq

    Call Am_tune_status_freq_print_lcd

    Locate 2 , 7
    Text1 = Am_text(am_memory_number)                       'Sendername in 2. Zeile ab Spalte 7 schreiben
    Lcd Text1

    Call Reset_encoder

End Sub





'*************************************************
'*** Stelle FM-Speicher ein und bringe auf LCD ***
'*************************************************

Sub Call_fm_memory(fm_memory_number As Byte)

    Freq_fm = Fm_memory(fm_memory_number)
    Call Fm_tune_freq

    Call Fm_tune_status_freq_print_lcd

    Locate 1 , 14                                           '"Mnn" in Zeile 1, Spalte 14 schreiben
    Lcd "M" ; Fm_memorypos ; " "

    Call Reset_encoder

End Sub


'**********************************
'*** Si4735: RDS initialisieren ***
'**********************************

Sub Rds_init()

    'RDS_INT wird gesetzt, wenn RDS-Sync = RDS-Signal vorhanden

    Call Si4735_set_property(&H1500 , &H00 , &B00000100)    'Property=RDS_Int_Source; RDSINT-Set bei... Bit2=RDS-SYNC, Bit1=RDS_SYNC_Lost, Bit0=RDS_Recv

    Call Si4735_set_property(&H1501 , &H00 , 14)            'Property=RDS_Int_FIFO_Count; DAT=14=min. Number of received Groups before RDSRECV-Bit is set

    Select Case Rds_block_errors
            Case 0 : Call Si4735_set_property(&H1502 , &B00000000 , 1)       'mur 1-2 korrigierbare Blockfehler zulassen
            Case 1 : Call Si4735_set_property(&H1502 , &B01010101 , 1)
            Case 2 : Call Si4735_set_property(&H1502 , &B10101010 , 1)
            Case 3 : Call Si4735_set_property(&H1502 , &B11111111 , 1)
    End Select

Call Rds_reset()

End Sub


'****************************************************************
'*** Si4735: RDS-Status + RDS-Daten in Status, R1...R12 holen ***
'****************************************************************

Sub Rds_get_status_and_data()

  I2cstart
  I2cwbyte 34                                               'Adresse Si4735 für Write=34
  I2cwbyte &H24                                             'CMD $0x24 zur Adressierung RDS-Status-/Daten
'  I2cwbyte &B00000000                                                           'Preserve RDS-Interrupt-Flag
  I2cwbyte &B00000001                                       'Preserve RDS-Interrupt-Flag
   I2cstop

  Waitms 1

  I2cstart
  I2cwbyte 35                                               'Adresse Si4735 für Read=35
  I2crbyte Status , Ack                                     'Statusbyte einlesen:B7=CTS-Flag, B6=ERR-Flag, B3=RSQINT-Flag, B2=RDSINT-Flag, B0=STCINT-Flag                                                         '

  I2crbyte R1 , Ack                                         'Statusbyte einlesen:B2=RDS_SYNC_FOUND-Flag, B1=RDS_SYNC_LOST-Flag, B0=RDS_RECV-Flag
  I2crbyte R2 , Ack                                         'Statusbyte einlesen:B2=GRP_LOST-Flag, B0=RDS_SYNC-Flag

  I2crbyte R3 , Ack                                         'RDS_FIFO_USED = Anzahl der verbleibenden Gruppen im RDS-FIFO-Speicher

  I2crbyte R4 , Ack                                         'RDS-Gruppen in R4...R11 (8 Bytes)
  I2crbyte R5 , Ack
  I2crbyte R6 , Ack
  I2crbyte R7 , Ack
  I2crbyte R8 , Ack
  I2crbyte R9 , Ack
  I2crbyte R10 , Ack
  I2crbyte R11 , Ack
  I2crbyte R12 , Nack                                       'je 2 Bit für Anzahl der korrigierten RDS-Fehler in Gruppe A,B,C,D
  I2cstop


  Waitms 1

  Call Si4735_wait_for_clear_to_send

End Sub


'****************************************************
'*** RDS-Dekodierung, LCD-Anzeige, RS-232-Anzeige ***
'****************************************************

Sub Rds_decoding()

     Do                                                     'Solange je eine Gruppe auf FIFO holen, bis FIFO leer

       Call Si4735_get_status_byte                          'Statusbit 7 holen

       If Status.7 = 1 Then                                 'Falls CTS=1 (Si4735 bereit)...

         Call Rds_get_status_and_data                       'hole RDS-Daten

         If R2.0 = 1 Then Rds_flag = 1 Else Rds_flag = 0    'RDS-Flag = aktueller RDS-Sync-Status

         If R3 > 0 Then                                     'FIFO-Speicher nicht leer (>0)

            Block_errors_block_a = R12 And &B11000000       'Anzahl RDS-Fehler in Block A isolieren
            Block_errors_block_b = R12 And &B00110000       'Anzahl RDS-Fehler in Block B isolieren
            Block_errors_block_c = R12 And &B00001100       'Anzahl RDS-Fehler in Block C isolieren
            Block_errors_block_d = R12 And &B00000011       'Anzahl RDS-Fehler in Block D isolieren

            Service = R6 And &B11111000                     'Gruppennummer = Bit 7...4 + Typ = Bit 3 aus R6 isolieren




            '*** GRUPPE 0A/0B (PI/TA/MS_Flag/DI/AF/PS=Sendername) ***

            If Service = &B00000000 Or Service = &B00001000 Then       'Gruppe 0A/0B (Bit7..3/R6=0) --> Sendername

               If R7.4 = 1 Then Ta = 1 Else Ta = 0          'Travel-Announcement-Flag
               If R7.3 = 1 Then Ms_flag = 1 Else Ms_flag = 0       'Music-Speech-Flag

               Pos = R7 And &B00000011                      'Adresse für DI und PS-Namenszeichen isolieren Bit 0,1 in R7

               Byte1 = Pos Xor &B00000011                   'Invertiere Adresse für DI-Adressierung
               Incr Byte1                                   '+1, da DI-Tabelle 1-based

               Incr Di_counter : If Di_counter = 0 Then Di_counter = 4       'DI-Counter>=4  als Zeichen für vollständig dekodierte DI

               If R7.2 = 1 Then                             'DI-Flag = Bit2 in R7
                  Di(byte1) = 1
               Else
                  Di(byte1) = 0
               End If

               'PS-Name
               Set Ps_counter.pos                           'Setze n=pos. Bit in PS-Counter

               Pos = Pos * 2                                'Programmname dekodieren und in Ps_name-String bringen
               Pos = Pos + 1
               Call Rds_char_code(r10)                      'RDS ASCII-Code in EADOGM-Code umrechnen
               Ch = Chr(r10)                                '2 Zeichen aus R10 und R11 (Block D)
               Mid(ps_name , Pos , 1 ) = Ch                 'in Ps_name-String
               Call Rds_char_code(r11)                      'RDS ASCII-Code in EADOGM-Code umrechnen
               Ch = Chr(r11)
               Incr Pos
               Mid(ps_name , Pos , 1 ) = Ch

               If Ps_counter = &B00001111 Then              'Ausgabe auf LCD, wenn alle 4*2 Zeichensätzen durchlaufen
                  Home Lower
                  Lcd Ps_name
                  Ps_counter = 0                            'Setze PS-Counter zurück
                  Ps_flag = 1
                  Ps_name_last = Ps_name
               End If


               'AF in Block C (R8,R9) nur in Gruppe 0A

               If Service = &B00000000 Then                 'Alternate Frequencies nur in Gruppe 0A!

                  'First 'AF-Byte

                  Lw_mw_af = 0                              'LW/MW-Flag zurücksetzen

                  If R8 = 224 Then                          'keine AF vorhanden

                     Af_flag = 0                            '..> AF-Flag = 0

                  Elseif R8 > 224 And R8 < 250 And Af_flag <> 2 Then       'Startbyte: = n weitere Alternate Frequencies vorhanden?

                     Af_flag = 1                            'AF-Flag auf Empfang setzen
                     Af_number = 0                          'laufender AF_Index
                     Af_max = R8 - 224                      'Anzahl AFs = Start der AF-Liste

                  Elseif R8 > 0 And R8 < 205 And Af_flag = 1 Then       'Code zwischen 1...204 => gültige  AF

                     If Af_number < 26 Then Incr Af_number  'Zähler nur inkrementieren,solange <= 25

'                     Word1 = Af(af_number)
                     Call Rds_calc_af(r8 , Word1)           'Dekodiere 1 AF
                     Af(af_number) = Word1

                     If Af_number >= Af_max Then Af_flag = 2       'Setze AF-Flag auf voll, falls AF=AF_max

                  Elseif R8 = 250 Then                      'LW/MW-Frequenz folgt

                     Lw_mw_af = 1                           '--> Flag für Block D setzen, daß Frequenz = LM/AM-Frequenz ist

                  End If

                  'Second AF-Byte

                  If Af_number < 26 Then Incr Af_number     'Zähler nur inkrementieren,solange <= 25

'                  Word1 = Af(af_number)
                  Call Rds_calc_af(r9 , Word1)              '2. AF dekodieren
                  Af(af_number) = Word1

                  If Af_number >= Af_max Then Af_flag = 2   'Setze AF-Flag auf voll, falls AF=AF_max

               End If

            End If




            '*** GRUPPE 1A/1B (PI, Slow-labeling-codes etc.) ***

            If Service = &B00010000 Or Service = &B00011000 Then       'Gruppe 1A/1B (Bit7..3/R6=0)

               Pin_code = Makeint(r11 , R10)

               If Service = &B00010000 Then                 'Gruppe 1A --> div. Info-Bits
                  Word1 = Makeint(r9 , R8)
                  Word1 = Word1 And &B0000111111111111
                  If R8.7 = 1 Then La = 1 Else La = 0       'Linkage actuator
                  Vc = R8 And &B01110000                    'Variant-Code isolieren
                  Shift Vc , Right , 4
                  If Vc = 0 Then                            'ECC
                     Ecc = R9
                  Elseif Vc = 1 Then                        'TMC-Identification
                     Tmc_ident = Word1
                  Elseif Vc = 3 Then                        'Language Code
                     Lc = Word1
                  Elseif Vc = 7 Then                        'Emergency warning system
                     Ews = Word1
                  End If
               End If

            End If





            '*** GRUPPE 2A/2B (Radiotext) ***

            If Service = &B00100000 Or Service = &B00101000 And Radiotext_on = 1 Then       'Gruppe 2A/2B = Radiotext1 (bis zu 64/32 Zeichen!)

                  Radiotext_present = 1

                  Radiotext_ab_flag = R7 And &B00010000     'A/B-Toggle-Flag für neuen Text isolieren = Bit 4, Block B, R7

                  If Radiotext_first_aqu = 0 Then           '1. Durchlauf?
                     Radiotext_ab_flag_old = Radiotext_ab_flag Xor &B00010000       'setzt A/B-Flag künstlich auf aktuelles Toggeln
                     Radiotext_first_aqu = 1
                  End If

                  If Radiotext_ab_flag <> Radiotext_ab_flag_old Then       'A/B Flag getoggelt? --> neue Nachricht beginnt
                     Radiotext_ab_flag_old = Radiotext_ab_flag
                     Radiotext_start_decode = 1             '-->setze Flag auf neue Dekodierung
                  End If

                  Segment = R7 And &B00001111               'Zeichenposition "POS" = 4*(Bit0...3) von R7

                  If Radiotext_start_decode = 1 And Segment = 0 Then       'Zeichenanfang gefunden?
                     Radiotext_start_decode = 2             'Flag auf Beginn Dekodierung setzen
                     Char_counter = 0
                  End If

                  If Radiotext_start_decode = 2 Then        'Bedingung zum Erstellen des RT-Strings erfüllt

                     If Service = &B00100000 Then           'Gruppe 02A

                        Position = Segment
                        Shift Position , Left , 2           'Position=Segment*4

                        If R8 = 13 And Radiotext_start_decode = 2 Then       '=RETURN?
                           Call Radiotext_decoded           'Aussprung in RT-Ready
                        Else
                           Incr Position : Incr Char_counter       'erhöhe Positions- und Gesamt-Zeichenzähler
                           Call Rds_char_code(r8)           'RDS ASCII-Code in EADOGM-Code umrechnen
                           Mid(radiotext_new , Position , 1) = Chr(r8)       '1. Zeichen in Radiotext-String an richtige Position schreiben

                           If R9 = 13 And Radiotext_start_decode = 2 Then
                              Call Radiotext_decoded
                           Else
                              Incr Position : Incr Char_counter       'erhöhe Positions- und Gesamt-Zeichenzähler
                              Call Rds_char_code(r9)        'RDS ASCII-Code in EADOGM-Code umrechnen
                              Mid(radiotext_new , Position , 1) = Chr(r9)       '1. Zeichen in Radiotext-String an richtige Position schreiben

                              If R10 = 13 And Radiotext_start_decode = 2 Then
                                 Call Radiotext_decoded
                              Else
                                 Incr Position : Incr Char_counter
                                 Call Rds_char_code(r10)    'RDS ASCII-Code in EADOGM-Code umrechnen
                                 Mid(radiotext_new , Position , 1) = Chr(r10)       '1. Zeichen in Radiotext-String an richtige Position schreiben

                                 If R11 = 13 And Radiotext_start_decode = 2 Then
                                    Call Radiotext_decoded
                                 Else
                                    Incr Position : Incr Char_counter
                                    Call Rds_char_code(r11) 'RDS ASCII-Code in EADOGM-Code umrechnen
                                    Mid(radiotext_new , Position , 1) = Chr(r11)       '1. Zeichen in Radiotext-String an richtige Position schreiben
                                 End If
                              End If
                           End If
                        End If

                     Else                                   'Gruppe 02B:

                        Position = Segment
                        Shift Position , Left , 1           'Position=Segment*2

                        If R10 = 13 And Radiotext_start_decode = 2 Then
                           Call Radiotext_decoded
                        Else
                           Incr Position : Incr Char_counter       'erhöhe Positions- und Gesamt-Zeichenzähler
                           Call Rds_char_code(r10)          'RDS ASCII-Code in EADOGM-Code umrechnen
                           Mid(radiotext_new , Position , 1) = Chr(r10)       '1. Zeichen in Radiotext-String an richtige Position schreiben

                           If R11 = 13 And Radiotext_start_decode = 2 Then
                              Call Radiotext_decoded
                           Else
                              Incr Position : Incr Char_counter       'erhöhe Positions- und Gesamt-Zeichenzähler
                              Call Rds_char_code(r11)       'RDS ASCII-Code in EADOGM-Code umrechnen
                              Mid(radiotext_new , Position , 1) = Chr(r11)       '1. Zeichen in Radiotext-String an richtige Position schreiben
                           End If
                        End If

                     End If

                     If Service = &B00100000 And Position = 64 And Radiotext_start_decode = 2 Then Call Radiotext_decoded       'nach 64/32 Zeichen automatisch CR=1 setzen
                     If Service = &B00101000 And Position = 32 And Radiotext_start_decode = 2 Then Call Radiotext_decoded       'Gruppe 02B

                  End If

            End If



            '*** GRUPPE 4A (UTC/MJD) ***

            If Service = &B01000000 Then                    'Gruppe 4A --> UTC-Zeit/Datum

               Byte1 = R7 And &B00000011                    'MJD berechnen
               Mjd = Byte1 : Shift Mjd , Left , 15
               Word1 = Makeint(r9 , R8)
               Shift Word1 , Right , 1
               Long1 = Word1
               Mjd = Mjd + Long1

               Utc_offset = R11 And &B00111111              'UTC-Offset berechnen

               Lo = R11                                     'Minuten berechnen
               Shift Lo , Right , 6
               Hi = R10 And &B00001111
               Shift Hi , Left , 2
               Utc_min = Hi + Lo
               Minuten = Utc_min

               Lo = R10                                     'Stunden berechnen
               Shift Lo , Right , 4
               Hi = R9 And &B00000001
               Shift Hi , Left , 4
               Utc_hour = Hi + Lo
               Stunden = Utc_hour

               If R11.0 = 1 Then                            '1/2-Stunden Addition
                  If R11.5 = 1 Then
                     Minuten = Minuten - 30
                     If Minuten < 0 Then
                        Minuten = Minuten + 60
                        Stunden = Stunden - 1
                     End If
                  Else
                     Minuten = Minuten + 30
                     If Minuten > 60 Then
                        Minuten = Minuten - 60
                        Stunden = Stunden + 1
                     End If
                  End If
               End If

               Shift Utc_offset , Right , 1                 'von 1/2-Stunden-Einheiten auf volle Stunden umrechnen
               If R11.5 = 1 Then
                  Stunden = Stunden - Utc_offset
               Else
                  Stunden = Stunden + Utc_offset
               End If

               If Stunden > 23 Then
                  Stunden = Stunden - 24
                  Decr Mjd
               End If

               If Stunden < 0 Then
                  Stunden = Stunden + 24
                  Incr Mjd
               End If

               Locate 2 , 10                                'Cursor auf Zeile 2, 10. Spalte setzen
               Tx = Str(stunden)
               If Stunden < 10 Then Tx = "0" + Tx
               Lcd Tx ; ":";                                'Stunden ":" Minuten auf Display ausgeben
               Tx = Str(minuten)
               If Minuten < 10 Then Tx = "0" + Tx
               Lcd Tx

            End If


'(
            '*** GRUPPE 9A (EWS) ***

            If Service = &B10010000 Then                                        'Gruppe 10A --> Erweiterung des PTY-Typs

               If Ews <> &HFFFF Then                                            'EWS-Daten isolieren
                  Ews0 = R7 And &B00011111
                  Ews1 = R8 : Ews2 = R9 : Ews3 = R10 : Ews4 = R11
               End If

            End If
')


            '*** GRUPPE 10A (PTYN) ***

            If Service = &B10100000 Then                    'Gruppe 10A --> Erweiterung des PTY-Typs

               If Pty_name_flag < 2 Then                    'Solange Schleife noch nicht 2x durchlaufen ist
                  Incr Pty_name_flag                        'Setze Flag auf erkanntes PTYN

                  Byte1 = R7 And &B00000001                 'Isoliere Block C, Bit0 als HI/LO Schalter für Position in 8-Zeichen-String
                  Shift Byte1 , Left , 3                    '*4

                  Call Rds_char_code(r8)                    'RDS ASCII-Code in EADOGM-Code umrechnen
                  Ch = Chr(r8) : Pos = 1 + Byte1
                  Mid(pty_name , Pos , 1 ) = Ch
                  Call Rds_char_code(r9)                    'RDS ASCII-Code in EADOGM-Code umrechnen
                  Ch = Chr(r9) : Pos = 2 + Byte1
                  Mid(pty_name , Pos , 1 ) = Ch
                  Call Rds_char_code(r10)                   'RDS ASCII-Code in EADOGM-Code umrechnen
                  Ch = Chr(r10) : Pos = 3 + Byte1
                  Mid(pty_name , Pos , 1 ) = Ch
                  Call Rds_char_code(r11)                   'RDS ASCII-Code in EADOGM-Code umrechnen
                  Ch = Chr(r11) : Pos = 4 + Byte1
                  Mid(pty_name , Pos , 1 ) = Ch
               End If

            End If



            '*** GRUPPE 14A (EON) ***

            If Service = &B11100000 Then                    'Gruppe 14A --> EON-Info

               Tp_eon = R7.4                                'TP_EON
               Pic1_eon = R10                               'Program Identification Code in Block D
               Pic2_eon = R11

               Vc_counter_eon = R7 And &B00001111           'Variant-Code = Adressierung Datenbytes isolieren

               If Eon_flag = &HFF Then Eon_flag = 0         'Start-Flag für EON-Daten vorhanden setzen
               If Eon_flag = 0 And Vc_counter_eon = 0 Then Eon_flag = 1       'EON-Dekodierung starten

               If Eon_flag = 1 Then

                 'PS (Sendername) dekodieren

                  If Vc_counter_eon < 4 Then

                     Pos = Vc_counter_eon * 2
                     Incr Pos
                     Call Rds_char_code(r8)                 'RDS ASCII-Code in EADOGM-Code umrechnen
                     Ch = Chr(r8)                           '2 Zeichen aus R8 und R9 (Block C)
                     Mid(ps_eon , Pos , 1 ) = Ch            'in Ps_name-String
                     Incr Pos
                     Call Rds_char_code(r9)                 'RDS ASCII-Code in EADOGM-Code umrechnen
                     Ch = Chr(r9)
                     Mid(ps_eon , Pos , 1 ) = Ch


                  'AF und Tuning-Freq./Mapped Freq.

                  Elseif Vc_counter_eon < 10 Then

                     Pos = Vc_counter_eon - 4               'Index = 2*(VC-4)+1
                     Shift Pos , Left , 1
                     Incr Pos

                     Lw_mw_af = 0                           'Setze LW/MW-Flag auf Null

                     If R8 > 0 And R8 < 205 Then            'Code zwischen 1...204 => gültige  AF

                        Call Rds_calc_af(r8 , Word1)
                        Af_eon(pos) = Word1

                     Elseif R8 = 250 Then                   'LW/MW-Frequenz folgt
                        Lw_mw_af = 1
                        Af_eon(pos) = 0                     '--> Flag setzen, daß nächste Frequenz = LM/AM-Frequenz ist

                     Else
                        Lw_mw_af = 0
                        Af_eon(pos) = 0
                     End If

                     Incr Pos

                     If R9 > 0 And R9 < 205 Then            'Code zwischen 1...204 => gültige  AF

                        Call Rds_calc_af(r9 , Word1)
                        Af_eon(pos) = Word1

                     End If

                  'Linkage Information

                  Elseif Vc_counter_eon = 12 Then

                     Link_info = Makeint(r9 , R8)

                 'PTY_EON, TA

                  Elseif Vc_counter_eon = 13 Then

                     Pty_eon = R8 And &B11110000
                     Swap Pty_eon
                     Ta_eon = R9.0

                 'PIN_EON

                  Elseif Vc_counter_eon = 14 Then

                     Pin_code_eon = Makeint(r9 , R8)

                     Eon_flag = 2                           'Flag auf voll dekodiert setzen

                  End If

               End If

            End If

            '*** GRUPPE 14B (EON) ***

            If Service = &B11101000 Then                    'Gruppe 14B --> EON-Info

               Ta_eon = R7.3                                'TA_EON
               Tp_eon = R7.4                                'TP_EON
               Pic1_eon = R10                               'Program Identification Code in Block D
               Pic2_eon = R11

            End If




            If Rds_over_rs232_control.0 = 1 Then            'RDS-Infosegment 1

               Print

               'aktuelle Gruppennummer und Typ anzeigen
               Byte1 = Service : Swap Byte1 : Byte1 = Byte1 And &B00001111
               Print "Gruppennummer: " ; Byte1 ; : If Service.3 = 0 Then Print "A" Else Print "B"

               'Blöcke anzeigen
               Print "BlockA: " ; Bin(r4) ; " " ; Bin(r5)
               Print "BlockB: " ; Bin(r6) ; " " ; Bin(r7)
               Print "BlockC: " ; Bin(r8) ; " " ; Bin(r9)
               Print "BlockD: " ; Bin(r10) ; " " ; Bin(r11)
               Print "Blockerrors: " ; Bin(r12)

            End If

         End If

       End If



      '*** Bei Tastendruck, Encoder, oder RS-232-Input --> Ende Radiotext-Dekodierung ***
'(
       If S2 = 0 Or S3 = 0 Or S4 = 0 Or S5 = 0 Or Encoder1 <> Encoder1old Then
          Call Rds_reset
          Exit Do
       End If

       If Ischarwaiting(#1) = 1 Then Exit Do
')
     Loop Until R3 = 1 Or R3 = 0                            'Schleife, bis FIFO-Speicher leer


     '*** div. RDS-Infos auf RS-232 ausgeben ***


     Pi = Makeint(r5 , R4)                                  'Isoliere PI-Code aus BlockA = R4 + R5

     If Rds_over_rs232_control.1 = 1 And Pi <> &HFFF Then   'RDS-Infosegment 2

        Print
        'PI-Code
        Print "PI = $" ; Hex(pi) ; " = %" ; Bin(r4) ; " " ; Bin(r5)

        'Travel-Program, Travel-Announcement
        Print "TP = ";
        If R6.2 = 1 Then
           Tp = 1
           Print "1 :" ;                                    'Verkehrsfunksender
        Else
           Tp = 0
           Print "0 : No ";
        End If
        Print "Travel Program"

        Print "TA = " ; Ta ; " : " ;
        If Ta = 0 Then Print "No ";
        Print "Travel-Announcement" ;
        If Ta = 1 And Tp = 0 Then Print " on EON" Else Print       'TA auf anderem Sender via EON

        'Music/Speech
        Print "Music or Speech: ";
        If Ms_flag = 1 Then                                 'MS
           Print "Music"
        Elseif Ms_flag = 0 Then
           Print "Speech"
        End If

        'PTY (Europa)
        Pty = R6 And &B00000011                             'PTY-Bits isolieren
        Shift Pty , Left , 3
        Ptyn = R7 And &B11100000
        Shift Ptyn , Right , 5
        Pty = Pty Or Ptyn
        Print "Program-Type: " ; Pty ; " = ";

        'PTY im Klartext ausgeben (Europäische Kodierung)
        'empfohlene Ausgabe für 16-Zeichen Anzeige

        Text1 = Lookupstr(pty , Pty_codes)
        Print Text1 ; " ";

        'PTY_Name
        If Pty_name_flag > 1 Then                           'Klartext-Ergänzung des PTY
           Print Pty_name
           Pty_name_flag = 0                                'Flag zurücksetzen
        Else
           Print
        End If


        'Decoder-Information

        If Di_counter > 4 Then
           Print "Decoder-Information: " ;                  'DI
           If Di(1) > 0 Then Print "Stereo," ; Else Print "Mono,";
           If Di(2) > 0 Then Print " Binaural Transmission,";
           If Di(3) > 0 Then Print " C" ; Else Print " Unc";
           Print "ompressed Transmission";
           If Di(4) > 0 Then Print ", Dynamic PTY or EON" Else Print ", Static PTY"
        End If

     End If



     If Rds_over_rs232_control.2 = 1 Then                   'RDS-Infosegment 3

        Print

        If Ps_flag = 1 Then                                 'Ausgabe PS nur bei voll dekodiertem PS
           Print "Program-Name: " ; Ps_name_last
           Ps_flag = 0
        End If

        Call Make_freq_string(freq_fm)
        Print "Frequenz: " ; Freq_string ; " MHz"

        If Af_flag = 2 And Af_max > 0 Then                  'Alternate Frequencies ausdrucken, wenn Liste vollständig

           Word1 = Af(1)                                    'AF1 zum Vergleich mit möglichen Frequenzpaaren in Methode B laden
           Method_b = 0

           If Af_max > 2 Then                               'Prüfe auf Methode B
              If Af(2) = Af(1) Or Af(3) = Af(1) Then
                 Method_b = 1
              Else
                 Method_b = 0
                 Reg_flag = 0                               'Regionalisierungs-Flag zurücksetzen
              End If
           End If

           N = 1                                            'N=laufender Index für AF-Speicherstelle
           N1 = 0                                           'N1=Index für tatsächlichen AF-Index (=N bei Methode A; =Frequenzpaarnummer bei Methode B)

           Do

               If N1 = 0 And Method_b = 1 Then
                  Byte1 = Af_max / 2
                  Print "Frequenzpaare: " ; Byte1
                  Print "Tuned Frequency: ";                'Tuned-frequency bei Methode B (0. Paar)
               Elseif N1 = 0 And Method_b = 0 Then
                  Print "Anzahl Alternativ-Frequenzen: " ; Af_max
                  Print "1. Altern. Frequ.: " ;
               Else                                         'Methode A oder Methode B ab 1.Paar
                  If Method_b = 1 Then
                     Print N1 ;
                     Else
                     Print N;
                  End If
                  Print ". Altern. Frequ.: " ;
               End If

               If Method_b = 0 Then                         'Methode A
                  Freq_af = Af(n)
               Else                                         'Methode B
                  If N1 = 0 Then                            'Hauptfrequenz bei Paarindex N1=0
                     Freq_af = Af(1)
                  Else                                      'AF-Paare dekodieren
                     N = N1 * 2                             'N = 1.AF-Index für Frequenzpaar N1
                     N2 = N + 1                             'N2= 2.AF-Index für Frequenzpaar N1

                     If Af(n) < Af(n2) Then Reg_flag = 0 Else Reg_flag = 1       'Teste auf Regional-Frequenz

                     If Af(n) = Af(1) Then Freq_af = Af(n2) 'Teste, welche Frequenz die AF, und welche die Wiederholung der Hauptfrequenz ist
                     If Af(n2) = Af(1) Then Freq_af = Af(n)
                  End If
                  Incr N                                    'damit >AF_max wird nach Erreichen des letzten Frequenzpaares
               End If

               Incr N : Incr N1                             'Paarindex erhöhen

'               Word1 = Af(n)
               Call Make_freq_string(freq_af)

'               If Af(n) < 1600 Then                                             'LW/MW-Frequenz
               If Freq_af < 1600 Then                       'LW/MW-Frequenz
                  Print Freq_string ; " kHz";
               Else                                         'FM-Frequenz
                  Print Freq_string ; " MHz";
               End If

               If Reg_flag = 1 Then Print " Regional" Else Print

           Loop Until N > Af_max

           Af_flag = 0                                      'Flag wieder zurücksetzen, damit nächste AF-Liste bei Methode B geholt werden kann

        End If

'(
        'PI-Codes (Europa)

        Byte1 = R4 : Swap Byte1 : Byte1 = Byte1 And &B00001111             '4 MSB von R4=BlockA isolieren
        If Byte1 <> 0 Then

           Decr Byte1                                                        '-1, da Tabelle 0-based
           Print "Country-Code: ";

           If Ecc = &HFF Then                                                'keine ECC-Daten aus Gruppe1A

              For N = 0 To 60 Step 15
                  Byte2 = Byte1 + N                                          'Berechne Tabellenadrese
                  Text1 = Lookupstr(byte2 , Country_codes )
                  Print Text1 ; " or ";
              Next N
              Print

           Else                                                              'genau spezifiertes Land, weil ECC vorhanden
              Byte2 = Ecc And &B00001111                                     '4 LSB=Index isolieren
              Byte2 = Byte2 * 15
              Byte2 = Byte2 + Byte1
              Text1 = Lookupstr(byte2 , Country_codes )
              Print Text1
           End If

           Byte1 = R4 And &B00001111                                       '4 LSB von R8=BlockC isolieren
           Print "Area-Coverage-Code: ";
           Select Case Byte1
                   Case 0 : Print "Local"
                   Case 1 : Print "International"
                   Case 2 : Print "National"
                   Case 3 : Print "Suparnational"
                   Case Else
                        Byte2 = Byte1 - 3
                        Print "Regional R" ; Byte2
           End Select

           Print "Program Reference Number: " ; R5

           'Language Codes (Europe)
           Print
           If Lc <> &HFF Then
              Print "Language: ";
              If Lc < &H30 Then
                 Text1 = Lookupstr(lc , Language_codes )
              Elseif Lc < &H40 Then
                 Text1 = "Reserved"
              Elseif Lc = &H7D Then
                 Text1 = "Armenian"
              Elseif Lc = &H7B Then
                 Text1 = "Azerbaijan"
              Elseif Lc = &H79 Then
                 Text1 = "Belorussian"
              Elseif Lc = &H71 Then
                 Text1 = "Georgian"
              Elseif Lc = &H7D Then
                 Text1 = "Armenian"
              Elseif Lc = &H63 Then
                 Text1 = "Macedonian"
              Elseif Lc = &H60 Then
                 Text1 = "Moldavian"
              Elseif Lc = &H56 Then
                 Text1 = "Russian"
              Elseif Lc = &H54 Then
                 Text1 = "Serbo-Croat"
              Elseif Lc = &H49 Then
                 Text1 = "Ukrainian"
              Elseif Lc = &H40 Then
                 Text1 = "Background Sound"
              End If
              Print Text1
           End If

        End If
')

     End If

     If Rds_over_rs232_control.3 = 1 And Stunden <> &HFFFF Then       'RDS-Infosegment 4

        'Zeit + Datum
        Print

        Print "Local Time: " ;
        If Stunden < 10 Then Print "0";
        Print Stunden ; "h " ;
        If Minuten < 10 Then Print "0";
        Print Minuten ; "m"

        Print "Modified Julian Date: " ; Mjd

        Ys = Mjd : Ys = Ys - 15078.2 : Ys = Ys / 365.25 : Ys = Int(ys)
        Ms = Mjd : Ms = Ms - 14956.1 : Ks = Ys * 365.25 : Ks = Int(ks) : Ms = Ms - Ks : Ms = Ms / 30.6001 : Ms = Int(ms)
        Float1 = Mjd : Float1 = Float1 - 14956 : Float1 = Float1 - Ks : Ks = Ms * 30.6001 : Ks = Int(ks) : Float1 = Float1 - Ks
        Day = Float1
        If Ms = 14 Or Ms = 15 Then K = 1 Else K = 0
        Year = Ys : Year = Year + K : Year = Year + 1900
        K = K * 12
        Month = Ms : Month = Month - 1 : Month = Month - K
        Wd = Mjd + 2 : Wd = Wd Mod 7
        Text1 = Lookupstr(wd , Day_names )
        Print "Date: " ; Text1 ; ", " ; Day ; "." ; Month ; "." ; Year

     End If



     If Rds_over_rs232_control.4 = 1 And Radiotext_ready = 1 Then       'RDS-Infosegment 5

        'Radiotext
        Print
        Print "Radiotext (Länge): " ; Radiotext_length
        Print Left(radiotext , Radiotext_length)            'LF und CR werden automtisch bei RS-232 richtig interpretiert

     End If


 '(
     If Rds_over_rs232_control.5 = 1 And Ews <> &HFFFF Then                     'RDS-Infosegment 6

        'EWS
        Print
        Print "Emergency Warning: $" ; Hex(ews)
        If Ews0 <> &HFF Then                                                    'EWS-Daten aus Gruppe 9A
           Print "EWS0...EWS4 = $" ; Hex(ews0) ; " " ; Hex(ews1) ; " " ; Hex(ews2) ; " " ; Hex(ews3) ; " " ; Hex(ews4)
        End If

     End If
')


     If Rds_over_rs232_control.6 = 1 And Eon_flag = 2 Then  'RDS-Infosegment 7, wenn EON voll dekodiert

        'EON
         Print
         Eon_flag = 0                                       'EON-Flag zurücksetzen für Neudecodierung

         Print "EON-Program-Name: " ; Ps_eon

        'PI-Code
        Pi_eon = Makeint(pic2_eon , Pic1_eon)
        Print "PI-EON = $" ; Hex(pi_eon) ; " = %" ; Bin(pic1_eon) ; " " ; Bin(pic2_eon)


        'PIN-Code
        Print "PIN-EON = $" ; Hex(pin_code_eon)

        'Travel-Program, Travel-Announcement
        Print "EON-TP = " ; Tp_eon ; " : ";
        If Tp_eon = 0 Then Print "No ";
        Print "Travel Program"


        Print "EON-TA = " ; Ta_eon ; " : ";
        If Ta_eon = 0 Then Print "No ";
        Print "Travel-Announcement";
        If Ta_eon = 1 And Tp_eon = 0 Then                   'TA auf anderem Sender via EON
           Print " on EON"
        Else
           Print
        End If

        'EON_PTY

        Text1 = Lookupstr(pty_eon , Pty_codes)

        Print "EON-Program-Type: " ; Pty_eon ; " = " ; Text1

        'EON_AF

        For N = 0 To 5                                      '6 Frequenzpaare

            Byte1 = N * 2 : Incr Byte1
            Word1 = Af_eon(byte1)

            If Af_eon(byte1) = Freq_fm Then                 '1. AF_EON aus Frequenzpaar = eingestellte Frequenz?

               Incr Byte1                                   'rechter Wert aus Frequenzpaar=mapped Frequency
               Call Make_freq_string(word1)
               Print "Mapped Frequency:  " ; Freq_string ;
               If Word1 < 1600 Then Print " kHz" Else Print " MHz"       '

            Else                                            'AF-Methode A

               If Word1 <> 0 Then                           'linke AF aus AF-Paar
                  Call Make_freq_string(word1)
                  Print "Altern. Frequency: " ; Freq_string ;
                  If Word1 < 1600 Then Print " kHz " ; Else Print " MHz ";       '
               End If

               Incr Byte1
               Word1 = Af_eon(byte1)

               If Word1 <> 0 Then                           'rechte AF aus AF-Paar
                  Call Make_freq_string(word1)
                  Print "Altern. Frequency: " ; Freq_string ;
                  If Word1 < 1600 Then Print " kHz" Else Print " MHz"       '
               End If

            End If

        Next N

        Eon_flag = &HFF                                     'EON_Flag wieder zurücksetzen


     End If

     If Rds_over_rs232_control.7 = 1 And Pin_code <> &HFFFF Then       'RDS-Infosegment 8

        Print
        Print "PIN-Code:          $" ; Hex(pin_code)
        Print "Linkage actuator:  $" ; La
        Print "Linkage Information$" ; Hex(link_info)
        Print "Language Code:     $" ; Hex(lc)
        Print "Ext. Country Code: $" ; Hex(ecc)
        Print "TMC-Ident:         $" ; Hex(tmc_ident)
        Print "EWS-Channel:       $" ; Hex(ews)

     End If


     Rds_over_rs232_control = 0                             'Setze RS232-Ausgabe-Flag zurück

End Sub



'*************************************************
'*** Ersetze RDS-ASCII-Code mit EADOGM-Zeichencode
'*************************************************

Sub Rds_char_code(chr_code As Byte)


   If Chr_code > 127 Then                                   'ASCII-Codes über 127?
      Reset Chr_code.7                                      ' (Code - 127) = Tabellenindex
      Incr Chr_code
      Chr_code = Replace_codes(chr_code)
   End If

End Sub


'*************************************
'*** Radiotext 1x fertig empfangen ***
'*************************************

Sub Radiotext_decoded()

    If Char_counter = Position Then                         'Teste, ob Anzahl gezählter Zeichen = aktuelle Positionszähler

       Radiotext_ready = 1                                  'Flag auf fertig dekodierten RT-String
       Radiotext_start_decode = 3                           'Flag auf fertig dekodierten RT-String
       Radiotext = Radiotext_new                            'hole dekodierten String in "RADIOTEXT"-String
       Radiotext_length = Char_counter                      'Aktuelle Position des letzten Zeichens/Zeichenzählers = Radiotext_Länge

       Call Radiotext_start                                 '

'       Radiotext_lf_pos = Charpos(radiotext , 10)                               'Position des nächsten LF

       Home Upper : Lcd Display_string                      'RT-String in 1. Zeile LCD bringen

    Else

       Radiotext_start_decode = 1                           'Dekodier-Status auf Anfang zurücksetzen

    End If

End Sub



'******************************************************
'*** Starte Radiotext-Anzeige mit ersten 16 Zeichen ***
'******************************************************

Sub Radiotext_start()

Local Missing_spaces As Byte


    Call Clear_lcd_upperline                                'Am Beginn 1s Frequenzanzeige
    Call Fm_tune_status_freq_print_lcd
    Wait 1


    If Radiotext_length < 16 Then                           'Radiotext kürzer als 16 Zeichen?

       Radiotext = Left(radiotext , Radiotext_length)       'fülle RT mit Spaces auf 16 Zeichen auf
       Missing_spaces = 16 - Radiotext_length
       Radiotext = Radiotext + Space(missing_spaces)
       Radiotext_length = 16

    End If

    Radiotext_display_pos = 1                               'Zähler für Postion nächstes 16-Zeichen-Segment

    End_position = Radiotext_length - 14                    'Letzte Zählerposition

    Display_string = Left(radiotext , 16)                   'Isoliere erste LCD-Zeile des Display_strings

    Home Upper : Lcd Display_string                         'Drucke auf LCD aus

    Scroll_counter = 2 : Direction = 0                      '2x stehen lassen, bevor weitergescrollt wird

End Sub



'******************************************
'*** Scrolle Radiotext-Lauftext auf LCD ***
'******************************************

Sub Radiotext_scroll()

    Local Switch_position As Byte
    Switch_position = End_position - 1

    If Radiotext_length > 16 Then                           'scrollen nur bei Länge>16

       'Ping-Pong-Scrollen
       If Radiotext_length < 25 Then

          If Direction = 0 Then                             'nach rechts

             Incr Radiotext_display_pos

             If Radiotext_display_pos = Switch_position Then Scroll_counter = 2       'rechtes Ende erreicht --> 2x stehen lassen

             If Radiotext_display_pos = End_position Then   'rechtes Ende erreicht
                Toggle Direction                            'Richtung umkehren
             Else
                Display_string = Mid(radiotext , Radiotext_display_pos , 16)       '16-Zeichen-String aus Radiotext ausschneiden
             End If

          Else                                              'nach links

             Decr Radiotext_display_pos

             If Radiotext_display_pos = 1 Then Scroll_counter = 2       'rechtes Ende erreicht 6x stehen lassen

             If Radiotext_display_pos = 0 Then              'rechtes Ende erreicht
                Toggle Direction                            'Richtung umkehren
             Else
                Display_string = Mid(radiotext , Radiotext_display_pos , 16)       '16-Zeichen-String aus Radiotext ausschneiden
             End If

         End If

         Home Upper
         Lcd Display_string                                 'drucke auf LCD aus

       'normales Scrollen
       Else

          Incr Radiotext_display_pos

          If Radiotext_display_pos = Switch_position Then Scroll_counter = 2       '2x stehen lassen

          If Radiotext_display_pos = End_position Then      'Scrolling beendet?
             Call Radiotext_start
          Else
             Display_string = Mid(radiotext , Radiotext_display_pos , 16)       '16-Zeichen-String aus Radiotext ausschneiden
             Home Upper
             Lcd Display_string                             'drucke auf LCD aus

          End If

       End If

    End If

End Sub



'*********************************************
'*** Berechne Frequenz einer AF (FM/LW/MW) ***
'*********************************************

Sub Rds_calc_af(af_index As Byte , Af_word As Byte)

   If Af_index = 250 Then                                   'LW/MW-Frequenz folgt im nächsten Byte

      Lw_mw_af = 1 : Af_word = 0

   Elseif Af_index > 0 And Af_index < 205 Then              'Code zwischen 1...204 => gültige  AF

      If Lw_mw_af = 0 Then                                  'FM-Frequenz

         Af_word = Af_index + 875                           'AF berechnen (in 100kHz-Einheiten)
         Af_word = Af_word * 10

      Else                                                  'AM-Frequenz

          Lw_mw_af = 0                                      'Flag wieder zurücksetzen

          Af_word = 9 * Af_index                            '9kHz-Einheiten

          If Af_index < 16 Then                             'LW
             Af_word = Af_word + 144
          Else                                              'MW
             Af_word = Af_word + 387
          End If

      End If

   Else                                                     'ungültige Frequenz --> 0 zurückgeben

      Af_word = 0

   End If

End Sub



'*******************************************************************
'*** RDS-Variablen zurücksetzen nach SYNC-Lost oder neuem Sender ***
'*******************************************************************

Sub Rds_reset()

    Tp = &HFF : Ta = &HFF                                   'Travel Program, Travel Announcement-Flag
    Pi = &HFFFF                                             'Programm-Identification Code
    Di_counter = 0 : Di(1) = &HFF : : Di(2) = &HFF : Di(3) = &HFF : Di(4) = &HFF       'Decoder-Information-Zähler
    Ps_name = Space(8) : Ps_name_last = Ps_name : Ps_flag = 0 : Ps_counter = 0
    Af_flag = 0 : Af_max = 0 : Lw_mw_af = 0                 'div. Startdaten für Alternate Frequencies
    La = 0                                                  'Linkage Actuator-Flag
    Vc = &HFF                                               'Variant Code
    Ecc = &HFF                                              'Extended Country Code
    Lc = &HFFFF                                             'Language Code
    Ews = &HFFFF : Ews0 = &HFF                              'Emergency Warning System
    Pin_code = &HFFFF                                       'Program-Identification-Code
    Tmc_ident = &HFFFF                                      'TMC-Identification
    Eon_flag = &HFF : Pin_code_eon = &HFFFF

    Radiotext_present = 0
    Radiotext_first_aqu = 0
    Radiotext_start_decode = 0 : Radiotext_ready = 0

    Minuten = &HFFFF : Stunden = &HFFFF : Utc_offset = &HFF : Mjd = &HFFFFFFFF       'Zeitvariablen                                                                 'Modified Julian Date
    Pty_name = Space(8) : Pty_name_flag = 0                 'PTYN aus Gruppe 10A



End Sub



'**********************************************************************************
'*** aktuell eingestellter Modus, Frequenz FM/AM und Band im EEPROM abspeichern ***
'**********************************************************************************

Sub Eeprom_save()                                           'Frequenzdaten in EEPROM sichern

    Writeeeprom Am_fm_flag , 1000
    Writeeeprom Freq_fm
    Writeeeprom Freq_am
    Writeeeprom Band

End Sub



'********************************
'*** untere LCD-Zeile löschen ***
'********************************

Sub Clear_lcd_lowerline()                                   'untere LCD-Zeile löschen

    Home Lower
    Lcd Space(16)

End Sub

'********************************
'*** untere LCD-Zeile löschen ***
'********************************

Sub Clear_lcd_upperline()                                   'untere LCD-Zeile löschen

    Home Upper
    Lcd Space(16)

End Sub



'*******************************************
'*** Flags für Eingabemodus zurücksetzen ***
'*******************************************

Sub Reset_flags()                                           'Eingabeflags zurücksetzen

    Memory_aktiv_flag = 0
    Property_aktiv = 0
    Am_textaktiv = 0
    Cursor Off

End Sub


'*****************************************************
'*** Encoderwerte nach Veränderung auf Null setzen ***
'*****************************************************

Sub Reset_encoder()                                         'Encoder auf 0 zurücksetzen

    Encoder1 = 0
    Encoder1old = Encoder1
    Enable Timer0

End Sub






'*****************************************************
'************** RS-232: Frequenz-Einstellung *********
'*****************************************************


Sub F_control()

    Print "Tune"

    Input Fin

    If Am_fm_flag = 1 Then                                  'im AM-Modus?
       If Fin >= 23000 Then                                 'prüfe, ob Frequenz oberhalb 23MHz
          Am_fm_flag = 0                                    '--> schalte auf FM-Modus um
          Call Si4735_init
       End If
    End If

    If Am_fm_flag = 0 Then                                  'im FM-Modus?
'       If Fin < 000 Then                                                      'prüfe, ob Frequenz unterhalb 60MHz
'         Am_fm_flag = 1                                                        '--> schalte auf AM-Modus um
'         Call Si4735_init
'      End If
    End If

    If Am_fm_flag = 1 Then                                  'setze AM-Frequenz

       Freq_am = Fin
       Call Am_tune_freq
       Call Am_tune_status_freq_print_lcd

    Else                                                    'setze FM-Frequenz

       Fin = Fin / 10
       Freq_fm = Fin
       Call Fm_tune_freq
       Call Fm_tune_status_freq_print_lcd

    End If

End Sub



'******************************************
'*** RS-232: Senderspeicher AM eingeben ***
'******************************************

Sub Mam_control()

    Print "Memory AM"

    Input N                                                 'Speicherplatz holen
    Input Fin                                               'Frequenz in kHz holen
    Input Text1                                             'Sendername holen

    If N < 51 Then
       If N > Am_memorymax Then Am_memorymax = N
       Freq = Fin
       Am_memory(n) = Freq
       Text1 = Text1 + "         "
       Text1 = Left(text1 , 10)
       Am_text(n) = Text1
    End If

End Sub


'******************************************
'*** RS-232: Senderspeicher FM eingeben ***
'******************************************


Sub Mfm_control()

    Print "Memory FM"

    Input N
    Input Fin

    If N < 51 Then
       If N > Fm_memorymax Then Fm_memorymax = N
       Fin = Fin / 10
       Freq = Fin
       Fm_memory(n) = Freq
    End If

End Sub




'*********************************
'*** RS-232: Property eingeben ***
'*********************************

Sub Properties()

    Print "Property"

    Input N                                                 'Property-Nummer holen

    If N < 17 Then

       Input Dat                                            'Property-Wert holen                                                              '

       Property_dat(n) = Dat
       Property_adr = Property_adress(n)
       Call Si4735_set_property(property_adr , &H00 , Dat)  'Property-Wert setzen

    End If

End Sub



'*****************************
'*** RS-232: I2C-Kommando  ***
'*****************************

Sub Pc_control_i2c()

  Print #1 , "I2C"

  Do

    Get #1 , Command                                        'I2C write and read to SI4735

    If Command = 67 Then                                    '"C"
       Input #1 , Bytesout
       Input #1 , Bytesin
       For N = 1 To Bytesout
           Inputhex #1 , Data_i2c(n)
       Next N
       I2cstart
       I2cwbyte 34
       For N = 1 To Bytesout
           I2cwbyte Data_i2c(n)
       Next N
       I2cstop
       If Bytesin > 0 Then
          Waitms 1
          I2cstart
          I2cwbyte 35
          While Bytesin > 1
             Bytesin = Bytesin - 1
             I2crbyte D , Ack                               'Binärausgabe der gelesenen Bytes vom I2C-Bus
             Print #1 , Bin(d)
          Wend
          I2crbyte D , Nack
          Print #1 , Bin(d)                                 'Binärausgabe des letzten gelesenen Bytes vom I2C-Bus
          I2cstop
       End If
    End If

    If Command = 65 Then                                    'LCD Line 1
       Input #1 , Text1
       Home Upper
       Lcd Text1
    End If

    If Command = 66 Then                                    'LCD Line 2
       Input #1 , Text1
       Home Lower
       Lcd Text1
    End If

  Loop

End Sub


'*******************
'*** RDS-Ausgabe ***
'*******************

Sub Rds_print_control()

    Print : Print "RDS-Data over RS-232 --> Enter Control Byte: ";

    Input Rds_over_rs232_control : Print                    '

End Sub







'********************************************
'*** TIMER0-Interrupt für Encoder-Abfrage ***
'********************************************

Tim0_isr:

$asm
        push        r16
        push        r17
        push        r20
        push        r21
        push        r24
        push        r26
        push        r27
        in        r24,sreg
        push        r24

$end Asm

  Code1 = Pinc
  Code1 = Code1 And &B00000110                              'PC2 und PC1 isolieren

  If Code1.2 < Code1old.2 Then
    If Code1.1 = 1 Then Encoder1 = Encoder1 + 1
    If Code1.1 = 0 Then Encoder1 = Encoder1 - 1
  End If

  Code1old = Code1

$asm

        pop        r24
        Out Sreg , R24
        pop        r27
        pop        r26
        pop        r24
        pop        r21
        pop        r20
        pop        r17
        pop        r16

$end Asm


Return


End





'******************
'******************
'*** DATA-Werte ***
'******************
'******************
'******************


$eeprom
$eepromhex                                                  'Intel HEX-Format für EEP-File für USBTiny-Programmer
'***EEPROMHEX-Direktive Auskommentieren bei Simulation oder Brennen mit Normal-Brenner!!!***

Data 0                                                      'Leerbyte
Data 1                                                      'Anzahl belegter FM-Senderspeicher


'10 LW-Speicherfrequenzen
Data 153%                                                   '1.LW-Senderfrequenz
Data 162%
Data 177%
Data 183%
Data 198%
Data 207%
Data 216%
Data 234%
Data 252%
Data 279%

'10 MW-Speicherfrequenzen
Data 549%                                                   '1.MW-Senderfrequenz
Data 621%
'Data 675%
Data 693%
Data 720%
Data 747%
Data 756%
'Data 801%
Data 810%
'Data 828%
Data 864%
'Data 1008%
'data 1215%
Data 1422%
Data 1440%
'Data 1593%

'10 KW-Speicerhfrequenzen, Bandbereich 1
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

'10 KW-Speicerhfrequenzen, Bandbereich 2
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

'10 KW-Speicerhfrequenzen, Bandbereich 3
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

'50 FM-Speicherfrequenzen
Data 10080%                                                 '1.FM-Frequenz
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%
Data 0%

'10 LW Speichernamen
Data "DLF       "                                           '1.LW-Sendernamen
Data "France Int"
Data "DLR Kultur"
Data "Europe One"
Data "BBC4/BBCWS"
Data "DLF       "
Data "MonteCarlo"
Data "RTL-Luxemb"
Data "Chaine 3  "
Data "Belarus 1 "

'10 MW Speichernamen
Data "DLF       "                                           '2. MW-Sendernamen
Data "RTBF/Bel  "
'Data "RadioMaria"
Data "BBC5/RUSSL"
Data "WDR2/VERA "
Data "Radio5 NL "
Data "DLF       "
'Data "BR Plus   "
Data "BBC Scotld"
'Data "NDR Info  "                                                               'oder "Radio10 NL"
Data "FranceBleu"
'Data "Gr.Nieuws "
'Data "V.o.Russia"
Data "DLF       "
Data "RTL/China "
'Data "WDR2      "

'10 KW Speichernamen, KW-Bandbereich 1
Data "          "                                           '1.KW-Sendername; Tropenbänder
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "

'10 KW Speichernamen, KW-Bandbereich 2
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "

'10 KW Speichernamen, KW-Bandbereich 3
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "
Data "          "


'Frei-Bytes 752-994
Data 52 , 53 , 54 , 55 , 56 , 57 , 58 , 59 , 60 , 61 , 62 , 63 , 64 , 65 , 66
Data 67 , 68 , 69 , 70 , 71 , 72 , 73 , 74 , 75 , 76 , 77 , 78 , 79 , 80 , 81 , 82 , 83 , 84 , 85 , 86 , 87 , 88 , 89 , 90 , 91 , 92 , 93 , 94 , 95 , 96 , 97 , 98 , 99

Data 0 , 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 26 , 27 , 28 , 29 , 30 , 31 , 32
Data 33 , 34 , 35 , 36 , 37 , 38 , 39 , 40 , 41 , 42 , 43 , 44 , 45 , 46 , 47 , 48 , 49 , 50 , 51 , 52 , 53 , 54 , 55 , 56 , 57 , 58 , 59 , 60 , 61 , 62 , 63 , 64 , 65 , 66
Data 67 , 68 , 69 , 70 , 71 , 72 , 73 , 74 , 75 , 76 , 77 , 78 , 79 , 80 , 81 , 82 , 83 , 84 , 85 , 86 , 87 , 88 , 89 , 90 , 91 , 92 , 93 , 94 , 95 , 96 , 97 , 98 , 99

Data 0 , 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 26 , 27 , 28 , 29 , 30 , 31 , 32
Data 33 , 34 , 35 , 36 , 37 , 38 , 39 , 40 , 41 , 42 , 43 , 44 , 45 , 46 , 47 , 48 , 49 , 50 , 51 , 52 , 53 , 54 , 55 , 56 , 57 , 58 , 59 , 60 , 61 , 62 , 63 , 64 , 65 , 66
Data 67 , 68 , 69 , 70 , 71 , 72 , 73 , 74 , 75 , 76 , 77 , 78 , 79 , 80 , 81 , 82 , 83 , 84 , 85 , 86 , 87 , 88 , 89 , 90 , 91 , 92 , 93 , 94

'Adresse 995:
Data 10                                                     'Lw_memorymax = Position des höchsten LW-Speichers
Data 20                                                     'Mw_memorymax = Position des höchsten MW-Speichers
Data 20                                                     'Kw1_memorymax = Position des höchsten KW1-Speichers
Data 30                                                     'Kw2_memorymax = Position des höchsten KW2-Speichers
Data 40                                                     'Kw3_memorymax = Position des höchsten KW2-Speichers


'Adresse 1000
Data 0                                                      'letzter Modus: AM/FM
Data 10080%                                                 'letzte FM-Frequenz
Data 648%                                                   'letzte AM-Frequenz
Data 2                                                      'letztes AM-Band

'Adresse 1006
Data &H01 , &H31 , &H1E , &H40 , &H10 , &H04 , &H03 , &H14  '16 Property-Default-Werte ab 1006
Data &H00 , &H03 , &H40 , &H02 , &H10 , &H0A , &H05 , &H19

'Adresse 1022        = Flag für FM-PWM-Ausgabe
Data 0

'Adresse 1023        = Flag für manuelle Schrittweite
Data 0





$data

'Band-Bezeichnungen
Band_names:
Data " "
Data "Langwelle"
Data "Mittelwelle"
Data "120m Tropenband"                                      'KW-Bereich 1; AM-Speicher 21-30
Data "90m Tropenband"
Data "75m Tropenband"
Data "60m Tropenband"
Data "49m Europaband"                                       'KW-Bereich 2; AM-Speicher 31-40
Data "41m KW-Band"
Data "31m KW-Band"
Data "25m KW-Band"
Data "21m KW-Band"                                          'KW-Bereich 3: AM-Speicher 41-50
Data "19m KW-Band"
Data "16m KW-Band"
Data "15m KW-Band"
Data "13m KW-Band"
Data "11m KW-Band"

Band_data:
Data 153% , 279%                                            'LW-Bandgrenzen
Data 522% , 1710%                                           'MW-Bandgrenzen
Data 2300% , 2495%                                          'KW-Band1 Bandgrenzen
Data 3200 % , 3400%
Data 3900% , 4000%
Data 4750% , 5060%
Data 5900% , 6200%
Data 7100% , 7450%
Data 9400% , 9900%
Data 11600% , 12100%
Data 13570% , 13870%
Data 15100% , 15800%
Data 17480% , 17900%
Data 18900% , 19020%
Data 21450% , 21850%
Data 25600% , 26100%
Data 8750% , 10800%                                         'FM-Bandgrenzen
'Band_start(17) = 6400                                                           'unterste FM-Grenze
'Call Si4735_set_property(&H1400 , 64 , 00)                                      'auf 64 MHz setzen



'Property-Adressen N=1...16; max./min.-Werte; Default-Werte
Property_data:
Data &H1100% , 1 , 2 , &H01                                 'FM-Deemphasis
Data &H1105% , 0 , 127 , &H31                               'FM-Stereo-Schwelle
Data &H1106% , 0 , 127 , &H1E                               'FM-Mono-Schwelle
Data &H1300% , 1 , 255 , &H40                               'FM Mute-Geschwindigkeit
Data &H1302% , 0 , 31 , &H10                                'FM Soft_Mute, max. Absenkung
Data &H1303% , 0 , 15 , &H04                                'FM Soft_Mute, SNR-Schwelle
Data &H1403% , 0 , 127 , &H03                               'FM Suchlauf, SNR-Schwelle
Data &H1404% , 0 , 127 , &H14                               'FM Suchlauf, Signalstärke-Schwelle
Data &H3100% , 0 , 1 , &H00                                 'AM-Deemphasis
Data &H3102% , 0 , 4 , &H03                                 'AM-Bandbreite
Data &H3300% , 11 , 255 , &H40                              'AM Soft-Mute Geschwindigkeit
Data &H3301% , 1 , 5 , &H02                                 'AM Soft-Mute Steilheit
Data &H3302% , 0 , 63 , &H10                                'AM Soft_Mute, max. Absenkung
Data &H3303% , 0 , 63 , &H0A                                'AM Soft_Mute, SNR-Schwelle
Data &H3403% , 0 , 63 , &H05                                'AM Suchlauf, SNR-Schwelle
Data &H3404% , 0 , 63 , &H19                                'AM Suchlauf, Signalstärke-Schwelle


'Property-Bezeichnungen (8 Zeichen f. LCD)
Property_names:
Data " "
Data "Deemphas"
Data "ST-Blend"
Data "MO-Blend"
Data "MuteRate"
Data "MuteAttn"
Data "Mute SNR"
Data "Seek SNR"
Data "SeekRSSI"

Data "Deemphas"
Data "Bndwidth"
Data "MuteRate"
Data "MuteSlop"
Data "MuteAttn"
Data "Mute SNR"
Data "Seek SNR"
Data "SeekRSSI"

Pty_codes:
'(
'RDS-PTY-Klartext-Bezeichnung (16-Zeichen-Code)
Data "None"                                                                     '8-Character Anzeige "  None  "
Data "News"                                                                     '8-Character Anzeige "  News  "
Data "Current Affairs"                                                          '8-Character Anzeige "Affairs "
Data "Information"                                                              '8-Character Anzeige " Info   "
Data "Sport"                                                                    '8-Character Anzeige " Sport  "
Data "Education"                                                                '8-Character Anzeige "Educate "
Data "Drama"                                                                    '8-Character Anzeige " Drama  "
Data "Culture"                                                                  '8-Character Anzeige "Culture "
Data "Science"                                                                  '8-Character Anzeige "Science "
Data "Varied Speech"                                                            '8-Character Anzeige " Varied "
Data "Pop Music"                                                                '8-Character Anzeige " Pop M  "
Data "Rock Music"                                                               '8-Character Anzeige " Rock M "
Data "Easy Listening"                                                           '8-Character Anzeige " Easy M "
Data "Light Classics M"                                                         '8-Character Anzeige "Light M "
Data "Serious Classics"                                                         '8-Character Anzeige "Classics"
Data "Other Music"                                                              '8-Character Anzeige "Other M "
Data "Weather & Metr"                                                           '8-Character Anzeige "Weather "
Data "Finance"                                                                  '8-Character Anzeige "Finance "
Data "Children's Progs"                                                         '8-Character Anzeige "Children"
Data "Social Affairs"                                                           '8-Character Anzeige " Social "
Data "Religion"                                                                 '8-Character Anzeige "Religion"
Data "Phone In"                                                                 '8-Character Anzeige "Phone In"
Data "Travel & Touring"                                                         '8-Character Anzeige " Travel "
Data "Leisure & Hobby"                                                          '8-Character Anzeige "Leisure "
Data "Jazz Music"                                                               '8-Character Anzeige "  Jazz  "
Data "Country Music"                                                            '8-Character Anzeige "Country "
Data "National Music"                                                           '8-Character Anzeige "Nation M"
Data "Oldies Music"                                                             '8-Character Anzeige " Oldies "
Data "Folk Music"                                                               '8-Character Anzeige " Folk M "
Data "Documentary"                                                              '8-Character Anzeige "Document"
Data "Alarm Test"                                                               '8-Character Anzeige "  TEST  "
Data "ALARM!"                                                                   '8-Character Anzeige " ALARM! "
')

'RDS-PTY-Klartext-Bezeichnung (8-Zeichen-Code)
Data "None"
Data "News"
Data "Affairs"
Data "Info"
Data "Sport"
Data "Educate"
Data "Drama"
Data "Culture"
Data "Science"
Data "Varied"
Data "Pop M"
Data "Rock M"
Data "Easy M"
Data "Light M"
Data "Classics"
Data "Other M"
Data "Weather"
Data "Finance"
Data "Children"
Data "Social"
Data "Religion"
Data "Phone In"
Data "Travel"
Data "Leisure"
Data "Jazz"
Data "Country"
Data "Nation M"
Data "Oldies"
Data "Folk M"
Data "Document"
Data "TEST"
Data "ALARM!"

'RDS-Ländercodes

'(
Country_codes:
Data "DE" , "DZ" , "AD" , "IL" , "IT" , "BE" , "RU" , "PS" , "AL" , "AT" , "HU" , "MT" , "DE" , "nn" , "EU"
Data "GR" , "CY" , "SM" , "CH" , "JO" , "FI" , "LU" , "BG" , "DK" , "GI" , "IQ" , "GB" , "LY" , "RO" , "FR"
Data "MA" , "CZ" , "PL" , "VA" , "SK" , "SY" , "TN" , "nn" , "LI" , "IS" , "MC" , "LT" , "YU" , "ES" , "NO"
Data "IE" , "TR" , "MK" , "nn" , "nn" , "nn" , "NL" , "LV" , "LB" , "nn" , "HR" , "nn" , "SE" , "BY" , "nn"
Data "MD" , "EE" , "nn" , "nn" , "nn" , "UA" , "nn" , "PT" , "SI" , "nn" , "nn" , "nn" , "nn" , "nn" , "BA"
')

'(
'RDS-Spachen-Kodierung
Language_codes:
Data "unknown" , "Albanian" , "Breton" , "Catalan" , "Croatian" , "Welsh" , "Czech" , "Danish" , "German" , "English" , "Spanish" , "Esperanto" , "Estonian" , "Basque" , "French"
Data "Frisian" , "Irish" , "Gaelic" , "Galician" , "Icelandic" , "Italian" , "Lappish" , "Latin" , "Latvian" , "Luxembourgian" , "Lithuanian" , "Hungarian" , "Maltese" , "Dutch" , "Norwegian" , "Occitan"
Data "Polish" , "Portugese" , "Romanian" , "Romansh" , "Serbian" , "Slovak" , "Slovene" , "Finnish" , "Swedish" , "Turkish" , "Flemish" , "Walloon" , " " , " " , " " , " "
')

Day_names:
Data "Monday" , "Tuesday" , "Wednesday" , "Thursday" , "Friday" , "Saturday" , "Sunday"

'RDS-Sonderzeichen ab ASCII 128
Special_characters:
Data &HE0 , &H85 , &H82 , &H8A , &HE1 , &H8D , &HE2 , &H95 , &HE3 , &H97 , &H9C , &H80 , &H20 , &H00 , &HE9 , &H20
Data &H83 , &H84 , &H88 , &H89 , &H86 , &H8B , &H93 , &H94 , &H96 , &H81 , &H9B , &H87 , &H20 , &H20 , &H20 , &H20
Data &H9D , &H1F , &H03 , &H04 , &H20 , &H20 , &H20 , &H99 , &H19 , &HE4 , &HE5 , &H24 , &H08 , &H05 , &H06 , &H07
Data &HF2 , &H20 , &H20 , &H02 , &H20 , &HE9 , &H6E , &H9A , &H75 , &H9F , &HF8 , &HDF , &HF6 , &HF5 , &H20 , &H12
Data &H41 , &H41 , &H90 , &H45 , &H49 , &H49 , &H4F , &H4F , &H55 , &H55 , &H52 , &H43 , &H53 , &H5A , &H44 , &H4C
Data &H41 , &H8E , &H45 , &H45 , &H49 , &H8B , &H93 , &H99 , &H95 , &H9A , &H72 , &H63 , &H73 , &H7A , &H64 , &H6C
Data &HEC , &H8F , &H92 , &H99 , &H98 , &H59 , &HEC , &HEE , &H4E , &H6E , &H52 , &H43 , &H53 , &H5A , &H20 , &H20
Data &HED , &H83 , &H91 , &H94 , &H77 , &H79 , &HED , &HEF , &H6E , &H9A , &H72 , &H63 , &H73 , &H7A , &H20 , &H20



Elektronik-Labor  Projekte  HF  DSP-Radio
