MMR-70 Hack: ISP-Programmmer (PC und Palm)

von Thomas Baum
Elektronik-Labor  Projekte  AVR



Der MMR-70 FM-Transmitter ist wegen der günstigen Beschaffung geradezu prädestiniert für Basteleien und Hardware-Hacks. Als ich die Tage einen zweiten Programmer für ein Projekt brauchte (ja der Trend geht eindeutig zum Zweitprogrammer) stand die Überlegung im Raum, bestellen und warten oder gleich loslegen. Und da ich schon immer einen seriellen Programmer für meinen alten Palm haben wollte und dieses Vorhaben schon lange vor mir her schiebe, war es mal wieder an der Zeit zwei MMR-70 zu schlachten. Das folgende Bild zeigt die Ergebnisse der Session. Links der Testaufbau mit t13 als Versuchskaninchen und rechts der ansteckbare Programmer für meinen Palm m500 (den Stecker hab ich mir aus einer alten Ladestation ausgebaut, MMR-70 angelötet und ein kleines Steckbrett zum mobilen Entwickeln).



Als Grundlage für den Programmer dient die Software des AVR-Prog von Klaus Leidinger. Der Code wurde lediglich an den ATMega32L des MMR-70 angepasst.
http://www.klaus-leidinger.de/mp/Mikrocontroller/AVR-Prog/AVR-Programmer.html



Programmiert wird der MMR-70 per ISP. Die Anschlussbelegung ist folgende:
VCC    TP11 (3V-5V)
GND    TP1
RESET    TP2
SCK    TP10
MISO    TP3
MOSI    TP7

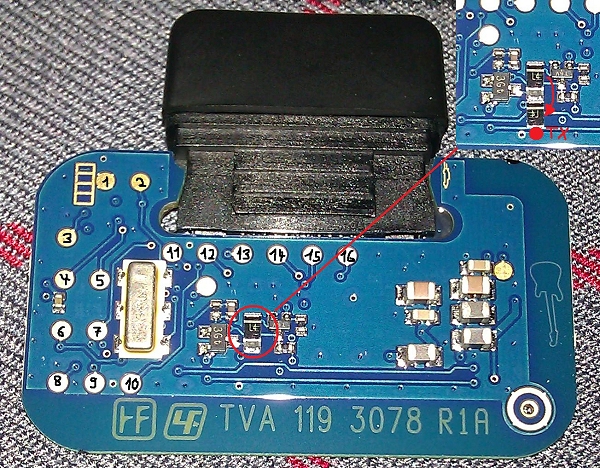

Der Transmitter bringt eine Besonderheit mit die wir jetzt noch anpassen müssen. TX und RX sind üblicherweise bei SonyEricsson zu einer Eindraht-RS232 zusammengefasst. Dies lässt sich jedoch einfach beheben indem wir die Schottkydiode (roter Kreis im Bild) auslöten und umdrehen. TX und RX sind jetzt getrennt. TP14 ist nun der RX-Anschluss und der freie Pol unserer in der Luft hängenden Diode ist unser TX. Das wars schon unser Programmer ist soweit fertig.

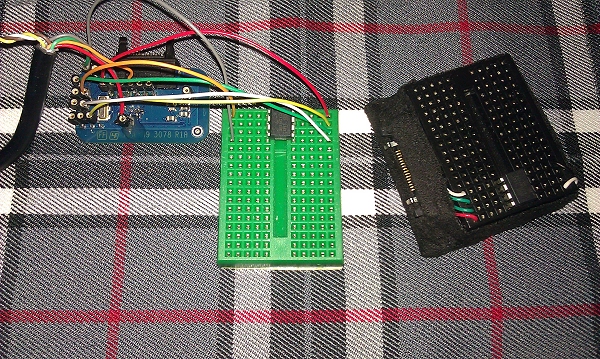

Zum Anschluss an den PC habe ich einen USB-Seriell-Adapter verwendet. Dieser erkennt automatisch den richtigen Pegel. (Achtung bei älteren Schnittstellen)
Die Stromversorgung läuft hier über die RTS-Leitung. Bei der Version für den Palm habe ich die 3,3V Leitung verwendet.

Der zu programmierende Controller wird folgendermaßen angeschlossen:
VCC    TP11
GND    TP1
RESET    TP5
SCK    TP10
MISO    TP3
MOSI    TP7

Der Programmer kann mit AVRDUDE mit -c avr910 -b 9600 verwendet werden. Beim Attiny13 musste ich mit -x devcode=0x57 beschreiben.
Auf dem Palm verwende ich PalmAVR (http://www.engbedded.com/palmavr).
Ein Compiler ist in Arbeit.

Und hier noch die Quellen und die HEX-Datei.
Download: MMR-70 Programmer.zip


;***************************************************************************
;*
;* Title : AVR ISP (Auto adr inc, 115200bps, supports AVR109 commands)
;* Version : 3.8
;* Last updated : Feb 26 2006
;* Target : AT90S2313
;* File : avr910_2313_v38b.asm
;* Author(s) : klaus@mikrocontroller-projekte.de
;* last Filename: avr910_2313_V38a.asm
;* initial File : avr910_31.asm, Author: wubblick@yahoo.com, source: www.mit8.ru/~mars/ )
;*
;* This Code is free for private, noncommercial use only
;*
;* DESCRIPTION
;* The firmware on all programmers now support a unified protocol for
;* program and data memory programming. The host computer do not need
;* to know if the programmer operates in serial or parallel mode.
;*
;* The following commands are supported. All commands start with a
;* single letter. The programmer returns 13d (carriage return) or the
;* data read after the command is finished.
;*
;* +-------------------+-------------+------+
;* Commands | Host writes | Host reads | |
;* -------- +-----------+-------+-------+-----+ |
;* | ID (hex ) | data | data | | Note |
;* +-----------------------------------+-----------+-------+-------+-----+------+
;* | Enter programming mode | 'P'(0x50) | | | 13d | 1 |
;* | Report autoincrement address | 'a'(0x61) | | | 'Y' | |
;* | Set address | 'A'(0x41) | ah al | | 13d | 2 |
;* | Write program memory, low byte | 'c'(0x63) | dd | | 13d | 3 |
;* | Write program memory, high byte | 'C'(0x43) | dd | | 13d | 3 |
;* | Issue Page Write | 'm'(0x6d) | | | 13d | 13 |
;* | Read program memory | 'R'(0x52) | | dd(dd)| | 4 |
;* | Write data memory | 'D'(0x44) | dd | | 13d | |
;* | Read data memory | 'd'(0x64) | | dd | | |
;* | Chip erase | 'e'(0x65) | | | 13d | |
;* | Write lock bits | 'l'(0x6c) | dd | | 13d | |
;* | Leave programming mode | 'L'(0x4c) | | | 13d | 5 |
;* | Select device type | 'T'(0x54) | dd | | 13d | 6 |
;* | Read signature bytes | 's'(0x73) | | 3*dd | | |
;* | Return supported device codes | 't'(0x74) | | n*dd | 00d | 7 |
;* | Return software identifier | 'S'(0x53) | | s[7] | | 8 |
;* | Return sofware version | 'V'(0x56) | | dd dd | | 9 |
;* | Return hardware version | 'v'(0x76) | | dd dd | | 9 |
;* | Return programmer type | 'p'(0x70) | | dd | | 10 |
;* | Set LED | 'x'(0x78) | dd | | 13d | 12 |
;* | Clear LED | 'y'(0x79) | dd | | 13d | 12 |
;* | Universial command | ':'(0x3a) | 3*dd | dd | 13d | 15 |
;* | New universal command | '.'(0x2E) | 4*dd | dd | 13d | 15 |
;* |-----------------------------------+-----------+-------+-------+-----+------|
;* | New Commands since Version 3.3 | | | | | |
;* | Exit (AVR109, Bootloader) | 'E'(0x45) | | | 13d | 15 |
;* | Return Chip ID (Terminalmode only)| 'i'(0x69) | | s[n] | | 14 |
;* +-----------------------------------+-----------+-------+-------+-----+------+
;* | New Commands since Version 3.5 | | | | | |
;* | Implemented Atmel Bootloader commands (Atmel Appl. Note 109) | | |
;* | Report Block write Mode | 'b'(0x62) | |'Y'2*nn| 13d | 16 |
;* | Block Write | 'B'(0x42) |2*nn'M'| n*dd | 13d | 16 |
;* | Block Read | 'g'(0x67) |2*nn'M'| n*dd | 13d | 16 |
;* +-----------------------------------+-----------+-------+-------+-----+------+
;* | Commands to test (fully implemented since V3.8, Unverified) | | | |
;* | Return Lockbits | 'r'(0x72) | | dd | 13d | 17 |
;* | Return High Fusebits | 'N'(0x4E) | | dd | 13d | 17 |
;* | Return extendet Fusebits | 'Q'(0x51) | | dd | 13d | 17 |
;* | Write fuse bits (reserved) | 'f'(0x66) | dd | | 13d |11,17 |
;* | Read fuse and lock bits (reserved)| 'F'(0x46) | | dd | |11,17 |
;* +-----------------------------------+-----------+-------+-------+-----+------+
;*'F
;* NOTE 1
;* The Enter programming mode command MUST be sent one time prior to
;* the other commands, with the exception of the 't', 'S', 'V', 'v'
;* and 'T' commands. The 'T' command must be sent before this command
;* (see note 6).
;*
;* For programmers supporting both parallel and serial programming
;* mode this command enters parallel programming mode. For programmers
;* supporting only serial programming mode, this command enters serial
;* programming mode.
;*
;* NOTE 2
;* The ah and al are the high and low order bytes of the address. For
;* parallel programmers this command issues the Load Address Low/High
;* Byte command. For serial programmers the address byte is stored for
;* use by the Read/Write commands.
;*
;* NOTE 3
;* For parallel programmers this command issues the Program Flash
;* command. For serial programmers this command iussues the Write
;* Program Memory Command. For devices with byte-wide program memories
;* only the low byte command should be used.
;*
;* NOTE 4
;* The contents of the program memory at the address given by the 'A'
;* command are written to the serial port in binary form. For byte
;* wide memories one byte is written. For 16 bit memories two bytes
;* are written,MSB first.
;*
;* NOTE 5
;* This command must be executed after the programming is finished.
;*
;* NOTE 6
;* The select device type command must be sent before the enter
;* programming command
;*
;* NOTE 7
;* The supported device codes are returned in binary form terminated
;* by 0x00.
;*
;* NOTE 8
;* This return a 7 character ASCII string identifying the programmer.
;* For the development board it is "AVR DEV", for the parallel
;* programmer it is "AVR PPR" and for the in-curcuit programmer it is
;* "AVR ISP".
;*
;* NOTE 9
;* The software/hardware version are returned as two ASCII numbers.
;*
;* NOTE 10
;* This command should be used to identify the programmer type. The
;* return value is 'S' for serial (or SPI) programmers or 'P' for
;* parallel programmers.
;*
;* NOTE 11
;* The write fuse bits command are available only on parallel
;* programmers and only for AVR devices (device code < 0x80). The host
;* should use the return programmer type command to determine the
;* programmer type, do not use the "AVR PPR" idenifier because other
;* programmers may be available in the future.
;*
;* NOTE 12
;* Currently only the AVR development board has LEDs. The other boards
;* must implement this commands as NOPs.
;*
;* NOTE 13
;* Devices using Page Mode Programming write one page of flash memory
;* before issuing a Page Mode Write Pulse.
;*
;* NOTE 14
;* The 'i' command is only used with a Terminal, for debug reasons.
;* Not used in any Programmer so far
;*
;* NOTE 15
;* Lock and Fuse Bits are written using the "universal command" (:) and
;* "new universal command" (.) in AVRProg and AVRDUDE.
;* AVRProg has an Exit (E) command implemented, which switches AVRProg offline
;*
;* NOTE 16
;* Atmel Bootloader commands described in Atmel Application Note 109 implemented.
;* Very useful if you use USB to serial converter.
;* AVRProg since Version 1.33 checks if Programmer supports Block Mode,
;* IF Programmer responds 'Y' and the size of the internal Buffer (nn nn), Bootloader commands
;* are used automatically from AVRProg. (faster Protocoll)
;* Block commands send size Buffersize (nn nn) and Type of Memory ('F'=Flash, 'E'=Data)
;* Compatibility to AVR Butterfly command set and Bootloader. Works with AVR911 Open Source
;* Programmer.
;* For avrdude use -c butterfly instead of -c avr910 and you get same behaviour.
;* Page Write for Data Memory (EEPROM) not implemented
;*
;* NOTE 17
;* Commands implemented in V3.8 but not completely tested yet.
;*
;* NOTE 18
;* Device 89S8252 was tested to programm with avrprog. Shows a avrprog bug in "block Mode". Works in "standart"
;* avr910 Programming Mode. To program this Device, disable the "Block Mode" by changing "w53: rjmp w6"
;*
;* HISTORY
;* V3.8b 26.02.06 (Klaus) Matched new Devices to avrdude.conf v5.1
;* V3.8a 30.12.05 (Klaus) Corrected Devic entry for ATTiny13
;* V3.8 06.11.05 (Klaus) New Devicecodes (inoffiacal) for Mega48/88/168 and others,
;* Lockbyte write enhanced for newer Devices. Commands in
;* Note 17 implemented. Not comletely tested.
;* Code cleanup to save some Bytes.
;* V3.7e 11.01.05 (Klaus) Matched Devicecodes to the new Atmel AVRProgV1.40
;* V3.7d 05.01.05 (Klaus) Removed 1200A/B/C devicecodes, Polling 0x7F for AT90S4414, default PollcodeF = 0xFF
;* V3.7c 04.01.05 (Klaus/Micha) Some devicecodes changed (Bootloader and "default" mode).
;* V3.7b 03.01.05 (Klaus/Leo) Bugfix for Block read of Flash Mamory for AT89Snnnn Controllers.
;* V3.7a 29.12.04 (Klaus/Micha) addet devicecodes for m64, m162 and m169.
;* V3.7 15.12.04 (Klaus) Rewriting polled timing for "non Page Mode" Chips, reorganised Table for
;* different polling Codes. Skip 0xFF Byte polling. (was buggy for some Controllers)
;* Added ATTiny2313 (device Code 0x23), and ATMega8535 (0x6A)Support.
;* Not Supported from avrprog, avrdude Support possible.
;* Reorganised Table for Page Mode Chips with Pagesize. Adding different Pagesizes
;* Try to fix S89 write, BUG in avrprog detected. Firmware should be OK now. (NOTE 18)
;* After 256 unsuccesful polls for Flash wait additional standart time.
;* Modified "release_ports" so that RESET is released also.
;* V3.6 10.07.04 (Klaus) Changed Block Mode Commands to AVR109 compatibility.
;* Additional AVR109 Commands, not testet yet.
;* V3.4-V3.5 unreleased (Klaus) cleaning up, tests for Block Modes
;* V3.3 25.06.04 (Klaus, Thomas) added enhanced Block write commands
; with own Protocol.
; Add 0xFF, 0x7F (2313) check for polling Mode
;* V3.2.1 18.11.03 (Klaus) Commented out some Controller Types, which are
; not really Supported by the hardware, but from
; AVRProg Software. See Comments at the end.
;* V3.2 16.11.03 (Klaus) Correctet typo in Chrystal frequency.
;* V3.2 13.10.03 (Klaus) 7,3728 Mhz chrystal for 115.200 Baud.
;* Swap MOSI <-> MISO Pinnumbers.
;* Add dual color LED Support.
;* Add some new Dewices.
;* V3.0 02.01.23 (wubble) Ported from 1200 to 2313.
;* Serial IO modified to use hardware UART.
;* Added support for multiple new devices.
;* Used data polling to short write process.
;* Added LED support to indicate R/W process.
;* V2.2 00.03.10 (pkastnes) Added support for multiple new devices.
;* V2.1 98.10.26 (mlund) New date marking.
;* Removed support for AT90S1200C.
;* Added support for AT90S4433A.
;* V2.0 98.01.06 (mlund) ATmega103 support.
;* V1.7 97.11.06 (mlund) Universial command (':') implemented.
;* Releases all pins when not in
;* programming mode.
;* V1.6e 97.11.04 (mlund) mega103 rev D support
;* V1.6c 97.10.30 (mlund) Auto incrementing / SPI sync
;* also works for mega103.
;* V1.6 97.09.09 (hskar) Created Page Mode Version (mega103)
;* V1.5 97.08.21 (mlund) Modified / Bugfix / Major cleanup
;* ... ... (no records)
;* V?.? 97.03.15 (OS) Created
;*
;*
;* Device Support List: see table "Devices" at the end of this file.
;***************************************************************************

;**** includes ****

.include "m32def.inc"

;***************************************************************************
;*
;* CONSTANTES
;*
;***************************************************************************

;**** Constant declarations Data Rate ****

;******** Chrystals for maximum Baudrates
;.equ XTAL = 7373 ; XTAL frequency, Khz (7.3728 Mhz)
;********
;.equ BAUD = 115200 ; Data rate, bauds
;.equ N = 3 ; for 7.3728 Mhz/115.200Baud
;********
;.equ BAUD = 38400 ; Data rate, bauds
;.equ N = 11 ; for 7.3728 Mhz/38.400Baud
;********
;.equ BAUD = 19200 ; Data rate, bauds
;.equ N = 23 ; for 7.3728 Mhz/19.200 Baud
;*********

;**** definitions for different chrystals and 115.200 baud ****
.equ XTAL = 3686 ; XTAL frequency, Khz (3.6864 Mhz)
;*********
;.equ BAUD = 115200 ; Data rate, bauds
;.equ N = 1 ; for 3.6864 Mhz/115.200Baud
.equ BAUD = 9600 ; Data rate, bauds
.equ N = 23 ; for 3.6864 Mhz/115.200Baud
;*********
;
;********* Baudrates for 8 Mhz Chrystal
;.equ XTAL = 8000 ; XTAL frequency, Khz (8.000 Mhz)
;*********
;.equ BAUD = 38400 ; Data rate, bauds
;.equ N = 12 ; for 8.00 Mhz/38.400 Baud
;*********
;.equ BAUD = 19200 ;Data rate, bauds
;.equ N = 25 ; for 8.00 Mhz/19.200 Baud
;*********
;.equ BAUD = 9600 ; Data rate, bauds ! Not valid for AVRProg, use for avrdude only !
;.equ N = 51 ; for 8.00 Mhz/9.600 Baud
;*********

;12 MHZ
;.equ XTAL = 12000
;.equ BAUD = 9600
;.equ N = 77

;********* Baudrates for 4 Mhz Chrystal
;.equ XTAL = 4000 ; XTAL frequency, Khz (4.000 Mhz)
;*********
;.equ BAUD = 19200 ; Data rate, bauds
;.equ N = 12 ; for 4.00 Mhz/19.200 Baud
;*********
;.equ BAUD = 9600 ; Data rate, bauds ! Not valid for AVRProg, use for avrdude only !
;.equ N = 25 ; for 4.00 Mhz/9.600 Baud
;*********

.equ RAMSTART = 0x60 ; first SRAM Adress of 2313
;.equ PAGESIZE = 0x10 ; default Page size for Programming
.equ BUFSIZE = 0x40 ; 64 bytes internal RAM for Buffer

;***************************************************************************
;*
;* PORTS
;* Ports Definitions
;*
;* DESCRIPTION
;* Change the following definitions if the RESET pin to the
;* target moves and/or if the SCK/MISO/MISO/LED moves.
;*
;***************************************************************************

.equ LEDH = PB3 ; dual color LED output, anode green (output)
.equ LED = PB0 ; LED output, active low, dual color LED Kathode green (output)
.equ LEDI = PD7
.equ MISO = PB6 ; MISO pin of the target (input)
.equ MOSI = PB5 ; MOSI pin of the target (output)

.equ RESET = PB1 ; RESET pin of the target (output) //thb war 4
.equ SCK = PB7 ; SCK pin of the target (output)
.equ RXD = PD0 ; UART RXD line
.equ TXD = PD1 ; UART TXD line

;***************************************************************************
;*
;* MACROS
;* Program Macros
;*
;* DESCRIPTION
;* Change the following macros if the RESET pin to the
;* target moves and/or if the SCK/MISO/MISO/LED moves.
;*
;***************************************************************************

.macro init_ports ; init ports
ldi temp2,0xff
out PORTD,temp2
ldi temp2,0xff
out PORTB,temp2
.endm

.macro catch_ports ; catch ports
ldi temp2,(1<<TXD) | (1<<LEDI)
out DDRD,temp2
ldi temp2,(1<<RESET) | (1<<MOSI) | (1<<SCK) | (1<<LED) | (1<<LEDH)
out DDRB,temp2
.endm

.macro release_ports ; release ports
ldi temp2,(1<<TXD) | (1<<LEDI)
out DDRD,temp2
ldi temp2,(1<<LED) | (1<<LEDH)
out DDRB,temp2
.endm

.macro pas_RESET ; set RESET passive
tst device
brmi m2 ; S89 device
sbi PORTB,RESET
rjmp m3
m2: cbi PORTB,RESET
m3:
.endm

.macro act_RESET ; set RESET active
tst device
brmi m4 ; S89 device
cbi PORTB,RESET
rjmp m5
m4: sbi PORTB,RESET
m5:
.endm

.macro set_LED ; set LED Port -> Standart LED off, dual LED green
sbi PORTB,LED
sbi PORTD,LEDI
cbi PORTB,LEDH ; added for dual color support
.endm

.macro clr_LED ; clear LED Port --> Standart LED on, dual LED red
cbi PORTB,LED
cbi PORTD,LEDI
sbi PORTB,LEDH ; added for dual color support
.endm

.macro LED_off ; for dual color LED, not in use
cbi PORTB,LED
cbi PORTD,LEDI
cbi PORTB,LEDH
.endm

.macro sbic_MISO ; skip if MISO cleared
sbic PINB,MISO
.endm

.macro set_MOSI ; set MOSI
sbi PORTB,MOSI
.endm

.macro clr_MOSI ; clear MOSI
cbi PORTB,MOSI
.endm

.macro clr_SCK ; clear SCK
cbi PORTB,SCK
.endm

.macro pulse_SCK ; pulse SCK
sbi PORTB,SCK
ldi temp2,(XTAL/750+1) ; had to slow down for ATTiny2313 (internal clock) default was (XTAL/1500+1)
m0: dec temp2
brne m0
cbi PORTB,SCK
ldi temp2,(XTAL/1500+1) ; had to slow down for ATTiny2313 (internal clock) default was (XTAL/3000+1)
m1: dec temp2
brne m1
.endm

.macro table ; load Z pointer
ldi ZL,low(@0*2) ; low
ldi ZH,high(@0*2) ; high
.endm

;***************************************************************************
;*
;* Global Register Variables
;*
;***************************************************************************

;r0 used with lpm instruction
.def cmd1 = r1 ; Universal commands params
.def cmd2 = r2 ; ..
.def cmd3 = r3 ; ..
.def pol_al = r4 ; Polling address low
.def pol_ah = r5 ; Polling address high
.def Bcnt1 = r6 ; Block Mode Counter1
.def Bcnt2 = r7 ; Block Mode Counter2
.def Bcnt3 = r8 ; Block Mode Counter2
.def B_Flag = r9 ; Flag for ws_del Routine
.def B_Mode = r10 ; Marks Block Mode commands (See Note 16)
.def Memtype = r11 ; Flag for Memorytype for Block Commands (See Note 16)
.def Pagewords = r12 ; Size of Controller page to program in Page Mode (Words!)
.def PollcodeF = r13 ; Code for Polling Flash


.def temp1 = r16 ; Temporary register 1
.def temp2 = r17 ; Temporary register 2
.def temp3 = r18 ; Temporary register 3
.def s_data = r19 ; SPI data
.def u_data = r20 ; UART data
.def device = r21 ; Device code
;.def lockmode = r22 ; Param to set correct lockbit read/write mode
.def rd_s_data = r23 ; Read data on SPI
.def pol_cmd = r24 ; Polling command
.def p_data = r25 ; Polling data
;r26,r27 used as X register
.def addrl = r28 ; (YL) Low order byte of address
.def addrh = r29 ; (YH) High order byte of address
;r30,r31 used as Z register

;***************************************************************************
;*
;* Interrupt Vectors
;*
;***************************************************************************

.CSEG
rjmp INIT ; Reset Handle

;***************************************************************************
;*
;* FUNCTION
;* u_init
;*
;* DESCRIPTION
;* Initialize UART.
;*
;***************************************************************************

u_init:
ldi temp1,N ; set baud rate
out UBRRL,temp1
ldi temp1,(1<<TXEN)|(1<<RXEN) ; initialize UART for TX and RX
out UCR,temp1
ret

;***************************************************************************
;*
;* FUNCTION
;* getc
;*
;* DESCRIPTION
;* Wait for start bit and receive a character on the UART Rx line.
;*
;***************************************************************************

getc:
sbis USR,RXC ; wait until a character has been received
rjmp getc
in u_data,UDR ; Read byte from the UART
ret

;***************************************************************************
;*
;* FUNCTION
;* putc
;*
;* DESCRIPTION
;* Send a character on the UART Tx line.
;*
;***************************************************************************

putc:
sbis USR,UDRE ; test for TX register empty
rjmp putc ; loop until TX empty
out UDR,u_data ; send the byte
ret

;***************************************************************************
;*
;* FUNCTION
;* put_string
;*
;* DESCRIPTION
;* Send Z - pointed null-terminated string on the UART Tx line.
;*
;***************************************************************************
put_string:
lpm
tst r0
breq ps_ret ; check for end of string (0x00)
mov u_data,r0
rcall putc ; putc(char)
adiw ZL,1 ; next char
rjmp put_string
ps_ret: ret

;***************************************************************************
;*
;* FUNCTION
;* put_table
;*
;* DESCRIPTION
;* Send Z - pointed table on the UART Tx line.
;*
;***************************************************************************
put_table:
lpm
tst r0
breq pt_ret ; check for end of table (0x00)
mov u_data,r0
rcall putc ; putc(Byte)
adiw ZL,2 ; skip MSB
rjmp put_table
pt_ret: ret

;***************************************************************************
;*
;* FUNCTION
;* bel_table
;*
;* DESCRIPTION
;* C=0 if device belongs to table.
;*
;***************************************************************************

bel_table:
lpm ; read table
tst r0 ; check for end of table
breq c1_ret
cp device,r0
breq c0_ret ; C=0
adiw ZL,2 ; skip MSB
rjmp bel_table
c1_ret: sec ; C=1
c0_ret: ret

;***************************************************************************
;*
;* FUNCTION
;* set_pagesize
;*
;* DESCRIPTION
;* sets programming Page size for selected Device.
;*
;***************************************************************************

set_pagesize:
lpm ; read table
tst r0 ; check for end of table
breq spa_end ; no Pagesize to set
cp device,r0
breq spa_set ; C=0
adiw ZL,2 ; skip MSB
rjmp set_pagesize
spa_set:
adiw ZL,1 ; Point to high Byte of Word
lpm ; get Pagesize to R0
mov Pagewords,r0
mov Bcnt3,Pagewords ; initiate Counter
spa_end:
ret

;***************************************************************************
;*
;* FUNCTION
;* set_pollcode
;*
;* DESCRIPTION
;* sets Code for Polling Flash for selected Device.
;*
;***************************************************************************

set_pollcode:
lpm ; read table
tst r0 ; check for end of table
breq spo_end ; no Pollcode to set
cp device,r0
breq spo_set ; C=0
adiw ZL,2 ; skip MSB
rjmp set_pollcode
spo_set:
adiw ZL,1 ; Point to high Byte of Word
lpm ; get Pagesize to R0
mov PollcodeF,r0 ; Set Pollcode for Flash Rom
spo_end:
ret

;***************************************************************************
;*
;* FUNCTION
;* delay
;*
;* DESCRIPTION
;* Make delay 1mS (x temp1).
;*
;***************************************************************************

delay:
ldi temp2,40
dl2: ldi temp3,(XTAL/120)
dl1: dec temp3
brne dl1
dec temp2
brne dl2
dec temp1
brne delay
ret

;***************************************************************************
;*
;* FUNCTION
;* spi123
;*
;* DESCRIPTION
;* Write bytes 1 to 3 on the SPI. Byte 1 must be loadet into s_data
;* Byte 2 ist addrh, Byte 3 ist addrl
;*
;***************************************************************************

spi123:
rcall wrser ; wrser(s_data) SPI write (byte 1)
mov s_data,addrh
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
ret

;***************************************************************************
;*
;* FUNCTION
;* w1234 (for Code simplification,)
;*
;* DESCRIPTION
;* Write SPI bytes 1 to 4.
; Byte 1 must be loadet into cmd1
; Byte 2 must be loadet into cmd2
; Byte 3 must be loadet into cmd3
; Byte 4 must be loadet into u_data
;*
;***************************************************************************
w1234:
mov s_data,cmd1
rcall wrser
mov s_data,cmd2
rcall wrser
mov s_data,cmd3
rcall wrser
mov s_data,u_data ; get Byte 4 from serial
rcall wrser
ret

;***************************************************************************
;*
;* FUNCTION
;* w123r4 (for Code simplification)
;*
;* DESCRIPTION
;* Write SPI bytes 1 to 3, read Byte 4 to serial.
; Byte 1 must be loadet into cmd1
; Byte 2 must be loadet into cmd2
; Byte 3 must be loadet into cmd3
;*
;***************************************************************************
w123r4:
mov s_data,cmd1
rcall wrser
mov s_data,cmd2
rcall wrser
mov s_data,cmd3
rcall wrser
rcall rdser
mov u_data,s_data ; put Byte 4 to serial
rcall putc
ret


;***************************************************************************
;*
;* FUNCTION
;* rdser, wrser
;*
;* DESCRIPTION
;* Write and read bytes on the SPI.
;*
;***************************************************************************

rdser:
clr s_data
wrser:
ldi temp1,8 ; load bit counter
ldi rd_s_data,0
wrs0:
rol s_data
brcc wrs1
set_MOSI ; MOSI = 1
rjmp wrs2
wrs1:
clr_MOSI ; MOSI = 0
wrs2:
lsl rd_s_data
sbic_MISO ; read MISO
ori rd_s_data,1
pulse_SCK ; pulse SCK
dec temp1 ; advance bit counter
brne wrs0 ; loop
mov s_data,rd_s_data
ret



;***************************************************************************
;*
;* FUNCTION
;* read_send_progmem
;*
;* DESCRIPTION
;* Read one adress (2 Byte) from Program Memory and send it through UART
;*
;***************************************************************************
read_send_progmem:
tst device
brmi rsp1 ; S89 device
ldi s_data,0x20 ; read low Byte
rcall wrser ; wrser(0x28) SPI write (byte 1)
mov s_data,addrh
rjmp rsp2
rsp1:
mov s_data,addrh ; s_data = (addrh << 3) | 0x01;
rcall shift_s_data3
ori s_data,0x01
rsp2:
rcall wrser ; wrser(addrh) SPI write (byte 2) (S89=byte1)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
mov u_data,s_data
rcall putc ; send data
tst device
brmi rsp3 ; S89 device
ldi s_data,0x28 ; read High Byte
rcall wrser ; wrser(0x20) SPI write (byte 1)
mov s_data,addrh
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
mov u_data,s_data
rcall putc ; send data
rsp3:
adiw addrl,1 ; Auto increment address
ret

;***************************************************************************
;*
;* FUNCTION
;* read_send_datamem
;*
;* DESCRIPTION
;* Read one Byte from Data Memory (eeprom) and send it through UART
;*
;***************************************************************************
read_send_datamem: ; Subroutine to read one eeprom Address
tst device
brmi rsd1 ; S89 device
ldi s_data,0xa0
rcall wrser ; wrser(0xa0) SPI write (byte 1)
mov s_data,addrh
rjmp rsd2
rsd1:
cpi device,0x87 ; if (device == S53)
breq rsd3 ; no Support for 89S53 device due to Bug in AVRProg V1.37
mov s_data,addrh
rcall shift_s_data3
ori s_data,0x05
rsd2:
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
mov u_data,s_data
rcall putc ; send data
adiw addrl,1 ; Auto increment address
ret
rsd3:
pop temp1 ; remove return Adress from Stack in case of Error
pop temp1
rjmp put_err



;***************************************************************************
;*
;* FUNCTION
;* eeprom_write
;*
;* DESCRIPTION
;* Write u_data to Data Memory (eeprom)
;*
;***************************************************************************
eeprom_write:
tst device
brmi eew1 ; S89 device
ldi s_data,0xc0
rcall wrser ; wrser(0xc0) SPI write (byte 1)
mov s_data,addrh
rjmp eew2
eew1:
cpi device,0x87 ; if (device == S53)
breq eew3
mov s_data,addrh
rcall shift_s_data3
ori s_data,0x06
eew2:
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
mov s_data,u_data
rcall wrser ; wrser(u_data) SPI write (byte 4)
ldi temp1,10 ; delay 10mS
rcall delay

adiw addrl,1 ; Auto increment address
ret
eew3:
pop temp1 ; remove return Adress from Stack in case of failure
pop temp1
rjmp put_err

;***************************************************************************
;*
;* FUNCTION
;* shift_s_data3
;*
;* DESCRIPTION
;* Shift s_data 3 times left for S89 device.
;*
;***************************************************************************

shift_s_data3:
lsl s_data
lsl s_data
lsl s_data
brcc s3_ret
cpi device,0x87 ; if (device != S53)
brne s3_ret
sbr s_data, 4 ; a13 +
s3_ret: ret


;***************************************************************************
;*
;* FUNCTION
;* healthcheck
;*
;* DESCRIPTION
;* changes color of dual color led.
;*
;***************************************************************************

healthcheck: ; for dual color LED
clr_LED ; LED red
ldi temp1,200 ; 200 ms
rcall delay
ldi temp1,200 ; again 200 ms
rcall delay
ldi s_data,200 ; counter Register

LEDloop: ; Pulse for yellow LED
set_LED ; LED green
ldi temp1,2 ; 2 ms
rcall delay
clr_LED ; LED red
ldi temp1,1 ; 1 ms
rcall delay
dec s_data ; dec. counter
brne LEDloop
set_LED ; LED green
ret

;***************************************************************************
;***************************************************************************
;***************************************************************************
;*
;* INIT
;*
;* DESCRIPTION
;* Initialization
;*
;***************************************************************************
;***************************************************************************
;***************************************************************************

INIT:
ldi temp1, low(RAMEND)
out SPL, temp1 ;Init Stack Pointer
ldi temp1, high(RAMEND)
out SPH, temp1

ldi temp1,PAGESIZE ; default Pagesize
mov Pagewords,temp1
mov Bcnt3,Pagewords ; set counter for Pagesize
ldi device,0x20 ; S2313 as default
clr B_Mode ; Flag for Block Modes (see Note 16)
clr B_Flag ; Flag for eNhanced Block write
init_ports ; Initialize ports
release_ports ; Release ports
rcall u_init ; Initialize UART
rcall healthcheck ; show that Prog is working after Powerup (LED test)


;***************************************************************************
;*
;* PROGRAM
;* waitcmd -> main
;*
;* DESCRIPTION
;* Wait for and execute commands.
;*
;***************************************************************************

waitcmd:
rcall getc ; while (getc() == ESC) {};
cpi u_data,0x1b
breq waitcmd

;====== 'T' - Device Type ==================================================

cpi u_data,'T' ; 'T' Device type
brne w0
rcall getc
mov device,u_data ; get device type
table Dev_M ; prepare to set Pagesize
rcall set_pagesize ; If device has Page Mode support, set Pagesize
ldi temp1,0xFF
mov PollcodeF,temp1 ; preset PollcodeF with 0xFF, will be overwritten if Pollcode known
table Dev_S ; prepare to set Polling Code
rcall set_pollcode ; If device has no Page Size support, set code for Polling Flash
rjmp put_ret

;====== 'S' - Return Software Identifier ===================================

w0:
cpi u_data,'S' ; 'S' Return software identifier
brne w1
table ID_Str
rcall put_string ; put string "AVR ISP"
rjmp waitcmd

;====== 'V' - Return Software Version ======================================

w1:
cpi u_data,'V' ; 'V' Return software version
brne w2
table SW_Ver
rcall put_string ; put software version
rjmp waitcmd


;====== 'v' - Return Hardware Version ======================================

w2:
cpi u_data,'v' ; 'v' Return hardware version
brne w3
table HW_Ver
rcall put_string ; put hardware version
rjmp waitcmd

;====== 't' - Show Supported Devices =======================================

w3:
cpi u_data,'t' ; 't' Show supported devices
brne w4
table Dev_S
rcall put_table ; put supported devices codes
table Dev_M
rcall put_table ; put supported devices codes
ldi u_data,0x00 ; putc(0x00) - end of device list
rcall putc
rjmp waitcmd

;====== 'p' - Return Programmer Type =======================================

w4:
cpi u_data,'p' ; 'p' Return programmer type
brne w5
ldi u_data,'S' ; putc('S') - serial programmer
rcall putc
rjmp waitcmd

;====== 'a' - Return autoincrement address support =========================

w5:
cpi u_data,'a' ; 'a' Return address auto increment
brne w51
ldi u_data,'Y' ; putc('Y') - supports autoinc
rcall putc
rjmp waitcmd

;====== 'M' - Return enhanced Mode support (Note 14) ========================

w51:
; cpi u_data,'M' ; 'M' Return enhanced mode Support
; brne w52
; ldi u_data,'Y' ; putc('Y') - supports enhanced Mode
; rcall putc
; rjmp waitcmd

;====== 'i' - Return Chip ID (Note 14) ======================================

w52:
cpi u_data,'i' ; 'i' Return Chip ID
brne w53
table ChipID
rcall put_string ; put Chip ID string
ldi u_data,0x0a ; putc(LF)
rcall putc
rjmp put_ret

;====== 'b' - Return Block write Mode support (Note 17) ========================

w53:
cpi u_data,'b' ; 'b' Return enhanced mode Support
brne w6
ldi u_data,'Y' ; putc('Y') - supports enhanced Mode
rcall putc
ldi u_data,high(BUFSIZE); putc((BUFSIZE>>8) & 0xff);
rcall putc
ldi u_data,low(BUFSIZE) ; putc(BUFSIZE&0xff);
rcall putc
rjmp waitcmd

;====== 'x' - Set LED ======================================================

w6:
cpi u_data,'x' ; 'x' Set LED (LED off or green)
brne w61
rcall getc ; get parameter
set_LED
rjmp put_ret

;====== 'y' - Clear LED ====================================================

w61:
cpi u_data,'y' ; 'y' Clear LED (LED on or red)
brne w7
rcall getc ; get parameter
clr_LED
rjmp put_ret


;===========================================================================

; We require that the device code be selected before any of the other commands

w7:
table Dev_S ; load pointer
rcall bel_table
brcc w71 ; device belongs to table
table Dev_M
rcall bel_table
brcc w71 ; device belongs to table
rjmp put_err ; not match, goto put_err();

;====== 'P' - Enter Programming Mode =======================================

w71:
cpi u_data,'P' ; 'P' Enter programming mode
breq w70
rjmp w8
w70:
clr_LED ; LED on
catch_ports ; catch ports
clr_SCK ; clear SCK
pas_RESET ; set RESET passive
ldi temp1,50 ; delay 50mS;
rcall delay
act_RESET ; set RESET active
ldi temp1,50 ; delay 50mS;
rcall delay
ldi s_data,0xac
rcall wrser ; wrser(0xac) SPI write (byte 1)
ldi s_data,0x53
rcall wrser ; wrser(0x53) SPI write (byte 2)
; SPI Synchronization (fix!)
cpi device,0x20 ; if ( (device >= 0x20) && (device <= 0x7F) )
brlo s2
tst device
brmi s2
ldi temp3,32 ; count = 32;
s1: rcall rdser ; SPI read (byte 3)
cpi s_data,0x53 ; if (rdser == 0x53)
breq s3 ; break
ldi s_data,0x00
rcall wrser ; wrser(0x00) SPI write (byte 4)
pulse_SCK ; pulse SCK
ldi s_data,0xac
rcall wrser ; wrser(0xac) SPI write (byte 1)
ldi s_data,0x53
rcall wrser ; wrser(0x53) SPI write (byte 2)
dec temp3 ; count-1
brne s1 ; loop
rjmp s3 ; else
s2: ldi s_data,0x00
rcall wrser ; wrser(0x00) SPI write (byte 3)
s3: tst device
brmi s4 ; S89 device
ldi s_data,0x00
rcall wrser ; wrser(0x00) SPI write (byte 4)
s4: ldi temp1,4 ; delay 4mS;
rcall delay
rjmp put_ret

;====== 'c' - Write Program Memory, Low Byte ===============================

w8:
cpi u_data,'c' ; 'c' Write program memory, low byte
brne w9
rcall getc ; get data byte
w8b: ldi s_data,0x40
mov pol_cmd,s_data ; save command for polling
tst device
brmi w81 ; S89 device
rcall wrser ; wrser(0x40) SPI write (byte 1)
mov s_data,addrh
rjmp w82
w81:
mov s_data,addrh ; s_data = (addrh << 3) | 0x02;
rcall shift_s_data3
ori s_data,0x02
w82:
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
mov s_data,u_data
rcall wrser ; wrser(u_data) SPI write (byte 4)
mov p_data,u_data ; save data for polling
mov pol_al,addrl ; save address for polling
mov pol_ah,addrh
tst device
brpl w83
adiw addrl,1 ; Auto increment address for S89 device
w83:
rjmp wait_S ; write FLASH delay

;====== 'C' - Write Program Memory, High Byte ==============================

w9:
cpi u_data,'C' ; 'C' Write program memory, high byte
brne w92
rcall getc ; get data byte
w9a: tst device
brmi w91 ; S89 device
ldi s_data,0x48
mov pol_cmd,s_data ; save command for polling
rcall wrser ; wrser(0x48) SPI write (byte 1)
mov s_data,addrh
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
mov s_data,u_data ; wrser(u_data) SPI write (byte 4)
rcall wrser
mov p_data,u_data ; save data for polling
mov pol_al,addrl ; save address for polling
mov pol_ah,addrh
adiw addrl,1 ; Auto increment address
rjmp wait_S ; write FLASH delay
w91:
rjmp put_err ; S89 device have byte wide program memory!

;====== 'B' Block Write Memory (see Note 17) ======================

w92:
cpi u_data,'B' ; 'B' Block Write Program Memory
breq w92a
rjmp w10
w92a:
rcall getc ; get count High Byte
tst u_data
breq w92b
ldi u_data,1
rjmp put_err
w92b:
rcall getc ; get count Low Byte
cpi u_data,BUFSIZE+1 ; check maximum count
brlo w92c
ldi u_data,2
rjmp put_err
w92c:
mov Bcnt1, u_data ; ignore BUFSIZE high Byte (must be 0 here)
mov Bcnt2, u_data
rcall getc ; get Memory type to write
mov Memtype,u_data ; Flag for Memtype
clr XH
ldi XL, RAMSTART ; set X pointer to SRAM begin
w93:
rcall getc ; get data until Bcnt1 is reached
st X+, u_data ; store data to SRAM
dec Bcnt1
brne w93
clr XH
ldi XL, RAMSTART ; set X pointer to SRAM begin
ldi temp3,1
mov B_Mode,temp3 ; B_Mode != 0
mov u_data,Memtype ; restore Memtype
cpi u_data,'F' ; 'F' Flash Memory ist to write
breq w94a
cpi u_data,'E' ; 'E' eeprom Memory ist to write
breq w94 ; Entry Point for Data Memory Block write
ldi u_data,3
rjmp put_err

w94: ; write Data (EEPROM) Memory
ld u_data,X+
rcall eeprom_write
dec Bcnt2
brne w94
rjmp put_ret

;Entry Point for Flash Block write
w94a:
table Dev_M
rcall bel_table
brcc w95 ; device belongs to table
rjmp w96 ; not match, goto "non Paged" Mode
w95: ; Entry Point for AVRProg Block Flash write
ldi s_data,0x40 ; write low byte
rcall spi123
ld s_data, X+
rcall wrser ; wrser(s_data) SPI write (byte 4)
ldi s_data,0x48 ; write high byte
mov pol_cmd,s_data ; save command for polling
rcall spi123
ld s_data, X+
mov p_data,s_data ; save data for polling
mov pol_al,addrl ; save address for polling
mov pol_ah,addrh
rcall wrser ; wrser(u_data) SPI write (byte 4)
adiw addrl,1 ; Auto increment address
dec Bcnt2
breq w95b
dec Bcnt2
breq w95b
tst B_Mode
breq w95 ; Loop for "Block Mode Commands" see Note 16
dec Bcnt3 ; count Bytes for Pagesize
brne w95
w95b:
tst B_Mode
brne w95c
rjmp put_ret
w95c:
dec Bcnt3 ; Bcnt3 will be set correct after write
ldi s_data,0x4c ; write Memory Page
rcall wrser ; wrser(0x4c) SPI write (byte 1)
mov s_data,pol_ah ; last written Adress is in Page to be programmed!
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,pol_al ; last written Adress is in Page to be programmed!
rcall wrser ; wrser(addrl) SPI write (byte 3)
ldi s_data,0x00
rcall wrser ; wrser(0x00) SPI write (byte 4)
mov Bcnt3,Pagewords ; reload Counter für Pagesize
rjmp wait_M


;#@KL4 test for 89S8252 Device
w96: ; Non Page Mode Flash write
tst device
brmi w96b ; S89 device
ld p_data, X+ ; load byte to Poll data
cpi p_data,0xFF ; if (p_data == 0xFF)
breq w961 ; skip burning
ldi s_data,0x40 ; write low byte
mov pol_cmd,s_data ; save command for polling
rcall spi123
mov s_data,p_data ; reload data from Poll data
rcall wrser ; wrser(s_data) SPI write (byte 4)
mov pol_al,addrl ; save address for polling
mov pol_ah,addrh
rcall Bws_pol
w961:
dec Bcnt2
ld p_data, X+ ; load byte to Poll data
cpi p_data,0xFF ; if (p_data == 0xFF)
breq w962
ldi s_data,0x48 ; write high byte
mov pol_cmd,s_data ; save command for polling
rcall spi123
mov s_data,p_data ; reload data from Poll data
rcall wrser ; wrser(u_data) SPI write (byte 4)
w96a: mov pol_al,addrl ; save address for polling
mov pol_ah,addrh
rcall Bws_pol
w962:
adiw addrl,1 ; Auto increment address
dec Bcnt2
brne w96
rjmp put_ret ; reply

w96b: ; Code for 89S8252
; ldi s_data,0x40
; mov pol_cmd,s_data ; save command for polling
mov s_data,addrh ; s_data = (addrh << 3) | 0x02;
rcall shift_s_data3
ori s_data,0x02
rcall wrser ; wrser(addrh) SPI write (byte 1)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 2)
ld s_data, X+
mov p_data,s_data ; save data for polling
rcall wrser ; wrser(u_data) SPI write (byte 3)
rjmp w96a

;====== 'R' - Read Program Memory ==========================================

w10:
cpi u_data,'R' ; 'R' Read program memory
brne w10B
tst device
brmi rpm1 ; S89 device
ldi s_data,0x28 ; read high Byte (order is different from Block Read!)
rcall wrser ; wrser(0x28) SPI write (byte 1)
mov s_data,addrh
rjmp rpm2
rpm1:
mov s_data,addrh ; s_data = (addrh << 3) | 0x01;
rcall shift_s_data3
ori s_data,0x01
rpm2:
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
mov u_data,s_data
rcall putc ; send data
tst device
brmi rpm3 ; S89 device
ldi s_data,0x20 ; read Low Byte
rcall wrser ; wrser(0x20) SPI write (byte 1)
mov s_data,addrh
rcall wrser ; wrser(addrh) SPI write (byte 2)
mov s_data,addrl
rcall wrser ; wrser(addrl) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
mov u_data,s_data
rcall putc ; send data
rpm3:
adiw addrl,1 ; Auto increment address
rjmp waitcmd ; goto waitcmd();


;====== 'g' - Block Read Memory (See Note 17) ======================

w10B:
cpi u_data,'g' ; 'g' Block Read Program Memory
brne w11
rcall getc ; XH = getc();
mov XH,u_data
rcall getc ; XL = getc();
mov XL,u_data
rcall getc ; getc(Memorytype);
cpi u_data,'F'
breq w10B2
cpi u_data,'E'
breq w10B1
rjmp put_err
w10B1:
rcall read_send_datamem
sbiw XL, 1
brne w10B1
rjmp waitcmd ; goto waitcmd();

w10B2:
rcall read_send_progmem
tst device
brmi w10B3
sbiw XL, 2
brne w10B2
rjmp waitcmd
w10B3:
sbiw XL, 1
brne w10B2
rjmp waitcmd ; goto waitcmd();

;====== 'A' - Load Address =================================================

w11:
cpi u_data,'A' ; 'A' Load address
brne w12
rcall getc ; addrh = getc();
mov addrh,u_data
rcall getc ; addrl = getc();
mov addrl,u_data
rjmp put_ret ; goto reply();

;====== 'D' - Write Data Memory ============================================

w12:
cpi u_data,'D' ; 'D' Write data memory
brne w13
rcall getc ; get data
rcall eeprom_write
rjmp put_ret



;====== 'd' - Read Data Memory =============================================

w13:
cpi u_data,'d' ; 'd' Read data memory
brne w14
rcall read_send_datamem
rjmp waitcmd ; goto waitcmd();


;====== 'L' - Leave Programming Mode =======================================

w14:
cpi u_data,'L' ; 'L' Leave programming mode
brne w142
w141:
pas_RESET ; set RESET passive
release_ports ; release ports
set_LED ; LED off
rjmp put_ret

;====== 'E' - Exit , release all Ports, inhibit AVR910 =====================

w142:
cpi u_data,'E' ; 'E' xit
brne w15
rjmp w141 ; exit command for AVR Prog

;====== 'e' - Chip Erase ===================================================

w15:
cpi u_data,'e' ; 'e' Chip erase
brne w16
ldi s_data,0xac
rcall wrser ; wrser(0xac) SPI write (byte 1)
tst device
brmi w151 ; S89 device
ldi s_data,0x80
rcall wrser ; wrser(0x80) SPI write (byte 2)
w151:
ldi s_data,0x04
rcall wrser ; wrser(0x04) SPI write (byte 3)
ldi s_data,0x00
rcall wrser ; wrser(0x00) SPI write (byte 4)
ldi temp1,40 ; delay 40mS
rcall delay
rjmp put_ret

;====== 'l' - Write Lockbits ==============================================

; writes Lockbits in SPI Byte 2 for old "classic" AVR Chips, and in addition
; writes Lockbits in SPI byte 4 for new Mega and Tiny Devices.
; One Type does not care about the other Byte...

; Some more different Adresses for other devices?

w16:
cpi u_data,'l' ; 'l' Write Lockbits
brne w161
rcall getc ; get data
ldi s_data,0xac
rcall wrser ; wrser(0xac) SPI write (byte 1)
tst device
brmi w163 ; S89 device
mov s_data,u_data
ori s_data,0xe0
rcall wrser ; wrser(u_data) SPI write (byte 2)
rjmp w162

;====== 'f' - Write Fusebits ==============================================

w161:
cpi u_data,'f' ; 'f' Write Fusebits
brne w17
rcall getc ; get data
ldi s_data,0xac
rcall wrser ; wrser(0xac) SPI write (byte 1)
ldi s_data,0xa0
rcall wrser ; wrser(0xa0) SPI write (byte 2)
w162:
clr s_data
rcall wrser ; wrser(0x00) SPI write (byte 3)
mov s_data,u_data
rcall wrser ; wrser(u_data) SPI write (byte 4)
rjmp w164
w163:
mov s_data,u_data
andi s_data,0xe0 ; S89 device
ori s_data,0x07
rcall wrser ; SPI write (byte3)
ldi s_data,0x00
rcall wrser ; wrser(0x00) SPI write (byte 4)
w164:
ldi temp1,10 ; delay 10mS
rcall delay
rjmp put_ret


;====== 's' - Read Signature Bytes =========================================

w17:
cpi u_data,'s' ; 's' Read signature bytes
brne w18
tst device
brmi w171 ; S89 device
ldi temp3,0x30
mov cmd1,temp3
clr cmd2
ldi temp3,0x02
mov cmd3,temp3
rcall w123r4
dec cmd3
rcall w123r4
clr cmd3
rcall w123r4
rjmp waitcmd
w171:
rjmp put_err


;====== 'm' - Write Program Memory Page ====================================

w18:
cpi u_data,'m' ; 'm' Write Program Memory Page
brne w19
ldi s_data,0x4c
rcall wrser ; wrser(0x4c) SPI write (byte 1)
; mov s_data,addrh ; original, reload address
mov s_data,pol_ah ; for speeding up transfer
rcall wrser ; wrser(addrh) SPI write (byte 2)
; mov s_data,addrl ; original, reload address
mov s_data,pol_al ; for speeding up transfer
rcall wrser ; wrser(addrl) SPI write (byte 3)
ldi s_data,0x00
rcall wrser ; wrser(0x00) SPI write (byte 4)
rjmp wait_M ; write FLASH delay

;====== ':' - Universal Command ============================================

w19:
cpi u_data,':' ; ':' Universal Command
brne w20
rcall getc ; get data1
mov cmd1,u_data ; cmd1 = data1
rcall getc ; get data2
mov cmd2,u_data ; cmd2 = data2
rcall getc ; get data3
mov cmd3,u_data ; cmd3 = data3
rcall w123r4
ldi temp1,50 ; delay 50mS
rcall delay
rjmp put_ret

;====== '.' - New Universal Command ========================================

w20:
cpi u_data,'.' ; '.' New Universal Command
brne w21
rcall getc ; get data1
mov cmd1,u_data ; cmd1 = data1
rcall getc ; get data2
mov cmd2,u_data ; cmd2 = data2
rcall getc ; get data3
mov cmd3,u_data ; cmd3 = data3
rcall getc ; get data4
rcall w1234
mov u_data,rd_s_data
rcall putc ; send data
ldi temp1,50 ; delay 50mS
rcall delay
rjmp put_ret

;====== 'r' - Read Lock Bits ==============================================

w21:
cpi u_data,'r' ; 'r' Read Lockbits
brne w22
ldi s_data,0x58 ; SPI load (byte 1)
rjmp w22a

;====== 'F' - Read Fusebits (lfuse) =========================================

w22:
cpi u_data,'F' ; 'F' Read Fusebits
brne w23
ldi s_data,0x50 ; SPI load (byte 1)
w22a:
rcall wrser ; wrser(0x5n) SPI write (byte 1)
clr s_data ; SPI load (byte 2)
rjmp w26

;====== 'N' - Read high Fusebits ==========================================

w23:
cpi u_data,'N' ; 'N' Read high Fusebits
brne w24
ldi s_data,0x58
rcall wrser ; wrser(0x58) SPI write (byte 1)
rjmp w25

;====== 'Q' - Read extendet Fusebits ==============================================

w24:
cpi u_data,'Q' ; 'Q' Read extendet Fusebits
brne w30
ldi s_data,0x50 ; SPI load (byte 1)
rcall wrser ; wrser(0x50) SPI write (byte 1)
w25:
ldi s_data,0x08 ; SPI load (byte 2)
w26:
rcall wrser ; wrser(0x00) SPI write (byte 2)
clr s_data
rcall wrser ; wrser(0x00) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
mov u_data,s_data
rcall putc ; send data
rjmp waitcmd

;====== Unknown Command ====================================================

w30: rjmp put_err

;====== Wait for FLASH write in avr910 mode ==================================

wait_S:
table Dev_M
rcall bel_table
brcs ws_pol ; No Page Mode, poll last Byte
rjmp put_ret ; in Byte Mode time is long enougt to get next Byte...
Bws_pol: ; entry adress for Block mode delay
ldi temp3,1
mov B_Flag,temp3 ; set Flag that ws_poll comes back with ret ...

ws_pol:
tst PollcodeF ; if polling not applicable, standart delay
breq ws_del ; polling not used
ws_def:
cp p_data,PollcodeF ; if (data == PollcodeF)
breq ws_del ; wait default delay
andi pol_cmd,0x0f ; write command: 0x48, 0x40
ori pol_cmd,0x20 ; read command: 0x28, 0x20
clr temp3 ; clear polling counter
ws_cy:
tst device
brmi ws_89 ; S89 device
mov s_data,pol_cmd
rcall wrser ; wrser(pol_cmd) SPI write (byte 1)
mov s_data,pol_ah
rjmp ws_90
ws_89:
mov s_data,pol_ah ; s_data = (pol_ah << 3) | 0x01;
rcall shift_s_data3
ori s_data,0x01
ws_90:
rcall wrser ; wrser(pol_ah) SPI write (byte 2) (S89=byte1)
mov s_data,pol_al
rcall wrser ; wrser(pol_al) SPI write (byte 3) (S89=byte2)
rcall rdser ; SPI read (byte 4) (S89=byte3)
tst device
brpl ws_cb
andi s_data,0x80 ; compare only MSB for S89 device
andi p_data,0x80
ws_cb:
cp s_data,p_data
breq ws_ok ; s_data = p_data
dec temp3
brne ws_cy ; loop
ws_del: ; 256 polling cycles are over, give additional standart Time
ldi temp1,10 ; delay 10mS
rcall delay
ws_ok:
tst B_Flag
breq put_ret
clr B_Flag ; Reset B_Flag for normal operation
ret

;====== Wait for FLASH write in page mode ==================================

wait_M:
cpi device,0x41
breq wm_del ; polling inapplicable for m103
cpi device,0x23
breq poll_t2313 ; polling different for t2313
cpi p_data, 0xFF ; if last Byte was 0xFF give standart delay
breq wm_del
andi pol_cmd,0x0f ; write command: 0x48, 0x40
ori pol_cmd,0x20 ; read command: 0x28, 0x20
clr temp3 ; clear polling counter
wm_cy:
mov s_data,pol_cmd
rcall wrser ; wrser(pol_cmd) SPI write (byte 1)
mov s_data,pol_ah
rcall wrser ; wrser(pol_ah) SPI write (byte 2)
mov s_data,pol_al
rcall wrser ; wrser(pol_al) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
cp s_data,p_data
breq wm_ok ; s_data = p_data
dec temp3
breq wm_del ; 256 polling cycles are over, give another 50ms delay...
rjmp wm_cy ; loop
wm_del:
ldi temp1,50 ; delay 50mS
rcall delay
wm_ok:
tst B_Mode
breq wm_end
tst Bcnt2
breq wm_end
rjmp w95
wm_end:
clr B_Mode ; Reset Block Mode Flag
rjmp put_ret

poll_t2313: ; Polling ATTiny2313 is different
ldi pol_cmd,0xf0 ; Byte1= 0xF0
clr temp3 ; clear polling counter
mov pol_ah,temp3 ; Byte2= 0x00
p2313_1:
mov s_data,pol_cmd
rcall wrser ; wrser(pol_cmd) SPI write (byte 1)
mov s_data,pol_ah
rcall wrser ; wrser(pol_ah) SPI write (byte 2)
mov s_data,pol_al
rcall wrser ; wrser(pol_al) SPI write (byte 3)
rcall rdser ; SPI read (byte 4)
andi s_data,0x01 ; last Bit tells if polling OK
breq wm_ok ; s_data = p_data
dec temp3
breq wm_del ; 256 polling cycles are over, give another 50ms delay...
rjmp p2313_1 ; loop


;====== Command Error ======================================================

put_debug: ; shows u_data on serial for debug reason
rcall putc
put_err:
ldi u_data,'?' ; putc('?')
rcall putc ; send '?'
rjmp waitcmd

;====== Reply Command ======================================================

put_ret:
ldi u_data,0x0d ; putc(0x0D)
rcall putc ; send CR
rjmp waitcmd

;***************************************************************************
;*
;* TABLE
;* device codes
;*
;* DESCRIPTION
;* The following device codes must be used by the host computer. Note
;* that the device codes are arbitrary selected, they do not have any
;* thing in common with the signature bytes stored in the device.
;* This are the device Codes recognized by the AVRprog Software. Some
;* Devices may require special hardware or a different, not yet
;* implemented Protocol! Use at your own risk.
;*
;***************************************************************************

Dev_S: ; byte write
; avr910-devcode ,Code during polling Flash. 0x00: no polling supported, program default time
; .db 0x10 ,0x00 ;AT90S1200A No support for this type
; .db 0x11 ,0x00 ;AT90S1200B No support for this type
; .db 0x12 ,0x00 ;AT90S1200C No support for this type
.db 0x13 ,0x00 ;AT90S1200
.db 0x20 ,0x7F ;AT90S2313A
.db 0x28 ,0x7F ;AT90S4414A
.db 0x30 ,0xFF ;AT90S4433A
.db 0x34 ,0xFF ;AT90S2333A
.db 0x38 ,0x7F ;AT90S8515A
.db 0x48 ,0xFF ;AT90S2323A
.db 0x4c ,0xFF ;AT90S2343A
.db 0x51 ,0xFF ;tn10
.db 0x55 ,0xFF ;tn12
.db 0x56 ,0xFF ;tn15
.db 0x68 ,0xFF ;AT90S8535
.db 0x6c ,0xFF ;AT90S4434
.db 0x86 ,0xFF ;AT89S8252 bug in avrprog in Block write Mode!(See Note 18 for Workaround)
.db 0x87 ,0xFF ;AT89S53 bug in avrprog
.dw 0 ;End of table

Dev_M: ; Devices which support Page Programming. Dont forget the Page Size
; of different Devices.
; Maximum ist 0x40 due to limitated RAM in 2313 Chip.
; (Pages with bigger Pages are programmed multiple times)


; unofficial Device Codes. Match avrdude.conf with tis "avr910-devcode"

; avr910-devcode ,Pagesite in Words
.db 0x01 ,0x40 ;m640 avr910-Devicecode not official!
; .db 0x02 ,0x40 ;m644 avr910-Devicecode not official!
; .db 0x03 ,0x40 ;m645 avr910-Devicecode not official!
.db 0x04 ,0x40 ;m649 avr910-Devicecode not official!
.db 0x05 ,0x40 ;m6490 avr910-Devicecode not official!
.db 0x06 ,0x40 ;90PWM2 avr910-Devicecode not official!
.db 0x07 ,0x40 ;90PWM3 avr910-Devicecode not official!
.db 0x08 ,0x40 ;m1280 avr910-Devicecode not official!
.db 0x09 ,0x40 ;m1281 avr910-Devicecode not official!
; .db 0x0a ,0x40 ;m2560 avr910-Devicecode not official!
; .db 0x0b ,0x40 ;m2561 avr910-Devicecode not official!
; .db 0x0c ,0x40 ;m3250 avr910-Devicecode not official!
; .db 0x0d ,0x40 ;m6450 avr910-Devicecode not official!
.db 0x0e ,0x10 ;tn24 avr910-Devicecode not official!
.db 0x1a ,0x10 ;tn25 avr910-Devicecode not official!
.db 0x0f ,0x20 ;tn44 avr910-Devicecode not official!
.db 0x1b ,0x20 ;tn45 avr910-Devicecode not official!
.db 0x14 ,0x20 ;tn84 avr910-Devicecode not official!
.db 0x1c ,0x20 ;tn85 avr910-Devicecode not official!
.db 0x1d ,0x40 ;CAN128 avr910-Devicecode not official!
.db 0x23 ,0x10 ;tn2313 avr910-Devicecode not official! (STK500 Code used)
.db 0x31 ,0x20 ;m48 avr910-Devicecode not official!
.db 0x33 ,0x20 ;m88 avr910-Devicecode not official!
.db 0x35 ,0x40 ;m168 avr910-Devicecode not official!
; .db 0x36 ,0x40 ;m165 avr910-Devicecode not official!
.db 0x37 ,0x40 ;m164 avr910-Devicecode not official!
.db 0x39 ,0x40 ;m324 avr910-Devicecode not official!
; .db 0x3c ,0x40 ;m325 avr910-Devicecode not official!
.db 0x3d ,0x40 ;m329 avr910-Devicecode not official!
.db 0x3e ,0x40 ;m3290 avr910-Devicecode not official!
.db 0x57 ,0x10 ;tn13 avr910-Devicecode not official!

;Appearance of this Devicecodes does not mean this Devices are or will be fully supported !



; official Devicecodes as matched in AVRProg V1.40
.db 0x3a ,0x20 ;m8515, Pagesize 32 words (0x20)
.db 0x3b ,0x20 ;m8515boot Bootloader Mode untested!
.db 0x41 ,0x40 ;m103
.db 0x43 ,0x40 ;m128
.db 0x44 ,0x40 ;m128boot Bootloader Mode untested!
.db 0x45 ,0x40 ;m64
.db 0x46 ,0x40 ;m64boot Bootloader Mode untested!
.db 0x5e ,0x10 ;tn26
.db 0x60 ,0x40 ;m161
.db 0x61 ,0x40 ;m161boot Bootloader Mode untested!
.db 0x62 ,0x40 ;m162
.db 0x63 ,0x40 ;m162boot Bootloader Mode untested!
.db 0x64 ,0x40 ;m163
.db 0x66 ,0x40 ;m163boot Bootloader Mode untested!
.db 0x69 ,0x20 ;m8535
.db 0x6a ,0x20 ;m8535boot Bootloader Mode untested!
.db 0x72 ,0x40 ;m32
.db 0x73 ,0x40 ;m32boot Bootloader Mode untested!
.db 0x74 ,0x40 ;m16
.db 0x75 ,0x40 ;m16boot Bootloader Mode untested!
.db 0x76 ,0x20 ;m8
.db 0x77 ,0x20 ;m8boot Bootloader Mode untested!
.db 0x78 ,0x40 ;m169
.db 0x79 ,0x40 ;m169boot Bootloader Mode untested!
.dw 0 ;End of Table


; Devices with known avr910 Devicecodes, but not supported with this Programmer
; .db 0x42 ,0x40 ;m603 obsolete
; .db 0x50 ;tn11 Needs additional High Voltage Hardware and uses different Protocoll! No Support!
; .db 0x58 ;tn19 Obsolete
; .db 0x5c ;tn28 Only supported in parallel Programming Mode!
; .db 0x65 ,0x20 ;m83 obsolete
; .db 0x67 ,0x20 ;m83boot obsolete
; .db 0x70 ;AT90C8534 unknown Hardware, untested!
; .db 0x71 ;AT90C8544 unknown Hardware, untested!
; .db 0x80 ;AT89C1051 unknown Hardware, untested!
; .db 0x81 ;AT89C2051 unknown Hardware, untested!



;***************************************************************************
;*
;* TABLE
;* revision codes
;*
;***************************************************************************

SW_Ver:
.db "38",0,0
HW_Ver:
.db "12",0,0

;***************************************************************************
;*
;* TABLE
;* ID string "AVR ISP"
;*
;***************************************************************************

ID_Str:
.db "AVR ISP",0

;***************************************************************************
;*
;* TABLE
;* Chip ID string to identify the Firmware
;*
;***************************************************************************

ChipID:
.db "Ver.3.8b (AVR109 Mode, 7.3728Mhz, 115.200 baud) for AN910, AT90S2313"
.db "www.mikrocontroller-projekte.de 26.Feb.2006",0

;**** End of File ****


Elektronik-Labor  Projekte  AVR
